Page 4 - Photomultiplier Tubes (PMT)

9111B - 25mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9111B - 25mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes.The 9111B is a compact 25 mm (1”) diameter, end window photomultiplier with plano-concave window, blue-green sensitive biakali photocathode and 10 high gain, high stability, SbCs dynodes of circular focused design for fast timing. The 9111WB is a variant for ...

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 350 nm
Wavelength Range: 280-630nm
Rise Time: 1.8 ns
Data Sheet
Inquire Price
9107B - 29mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9107B - 29mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes. The 9107B is a 29 mm (1.13”) diameter end window photomultiplier with blue-green sensitive bialkali photocathode and 11 high gain, high stability, SbCs dynodes of linear focused design. The 9107QB is a variant for applications requiring UV sensitivity.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 350 nm
Wavelength Range: 280-630nm
Rise Time: 4.5 ns
Diameter: 29
Data Sheet
Inquire Price
9106QB - 29mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9106QB - 29mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes. Variant of 9106B with quartz window for UV sensitivity to 165nm. The 9106B is a 29 mm (1.13”) diameter end window photomultiplier with enhanced green sensitive bialkali photocathode and 7 high gain, high stability, SbCs dynodes of linear focused design.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 400 nm
Wavelength Range: 165-680nm
Rise Time: 4.5 ns
Diameter: 29 mm
Data Sheet
Inquire Price
9106B - 29mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9106B - 29mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes. The 9106B is a 29 mm (1.13”) diameter end window photomultiplier with enhanced green sensitive bialkali photocathode and 7 high gain, high stability, SbCs dynodes of linear focused design. The 9106QB is a version with a quartz window for extended UV sensitivity

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 400 nm
Wavelength Range: 280-680nm
Rise Time: 4.5 ns
Diameter: 29 mm
Data Sheet
Inquire Price
9102B - 38mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9102B - 38mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes. The 9102B is a 38 mm (1.5”) diameter, end window photomultiplier with blue-green sensitive bialkali photocathodeand 10 high gain, high stability, SbCs dynodes of linear focused design for good linearity and timing.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 350 nm
Wavelength Range: 290-630nm
Rise Time: 3.5 ns
Diameter: 38 mm
Data Sheet
Inquire Price
9086FLB - 19mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9086FLB - 19mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes.The 9086FLB is a 19 mm (0.75”) diameter, end window photomultiplier with plano-concave window, S20 infra-red sensitive photocathode and 10 BeCu dynodes of linear focused design for good linearity and timing.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 350 nm
Wavelength Range: 280-800nm
Rise Time: 1.8 ns
Diameter: 19 mm
Data Sheet
Inquire Price
9085B - 19mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9085B - 19mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes.The 9085B is a 19 mm (0.75”) diameter, end window photomultiplier, with enhanced green sensitive bialkali photocathode and 10 high gain, high stability SbCs dynodes of linear focused design.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 400 nm
Wavelength Range: 280-680nm
Rise Time: 1.8 ns
Diameter: 19 mm
Data Sheet
Inquire Price
9078B - 19mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
9078B - 19mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes.The 9078B is a 19 mm (0.75\") diameter end window photomultiplier with blue-green sensitive bialkali photocathode and 10 high gain, high stability SbCs dynodes of linear focused design.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 350 nm
Wavelength Range: 280-630nm
Rise Time: 1.8 ns
Diameter: 19 mm
Data Sheet
Inquire Price
6097B - 51mm Photomultiplier Tube
ADIT Electron Tubes
Add to watch list
6097B - 51mm Photomultiplier Tube
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes. The 6097B is a 51 mm (2\") diameter, end window photomultiplier with enhanced green sensitive bialkali photocathode and 11 high gain, high stability, SbCs dynodes of the long-established venetian blind design providing a low afterpulse rate.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 400 nm
Wavelength Range: 290-680nm
Rise Time: 10 ns
Data Sheet
Inquire Price
13mm photomultiplier tubes
ADIT Electron Tubes
Add to watch list
13mm photomultiplier tubes
Compare
Photomultiplier Tube (PMT) by ADIT Electron Tubes.

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 380 nm
Wavelength Range: 290-630nm
Rise Time: 2 ns
Data Sheet
Inquire Price
Photomultiplier tubes
ADIT Electron Tubes
Add to watch list
Photomultiplier tubes
Compare

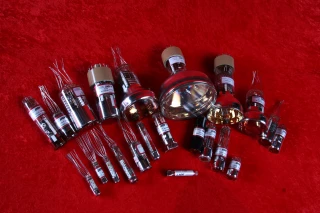

ADIT Electron Tubes manufactures a full range of photomultipliers.The ADIT brand is a manufactured in west Texas.The Electron Tubes brand is manufactured in west London

Specifications
PMT Type: PMT (photomutiplier tube)
Wavelength Of Max Response: 390 nm
Wavelength Range: 110-900nm
Rise Time: 2 ns
Data Sheet
Inquire Price
