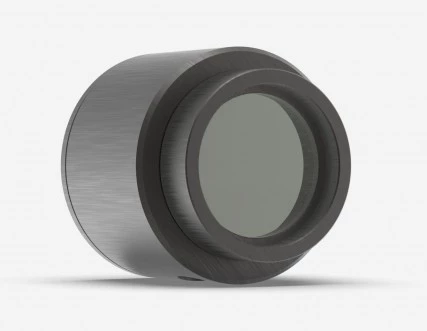

Gentec-EO High Power Detector PH100-SI-HA-OD1-D0
Description
Gentec-EO High Power Detector PH100-SI-HA-OD1-D0
Specifications |
|
|---|---|
| Diode Type: | Si |
| Wavelength Of Operation: | 420 - 1080 nm |
Features
Applications
- Laser power detection
- Laser optics
- Spectroscopy
- Metrology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
All detector heads are 27.4mm thick by 38.1 mm in diameter. The PH and PE series are supplied with a 180 cm long flexible cable terminated with a DB-15 "intelligent" male connector, for use with Gentec-EO Monitors.
The PH100-SI-HA-OD1-D0 presents the lowest calibration uncertainty to date, with a power calibration uncertainty of ±4.0% (420 - 980 nm), ±5.0% (981 - 1049 nm), and ±7.0% (1050 - 1080 nm).
The PH100-SI-HA-OD1-D0 is a photodiode laser power detector used for laser power detection, laser optics, spectroscopy, and metrology.
The PH100-SI-HA-OD1-D0 can measure a maximum average power of 300 mW.
The peak sensitivity of the PH100-SI-HA-OD1-D0 is 0.5 A/W @ 980 nm.
