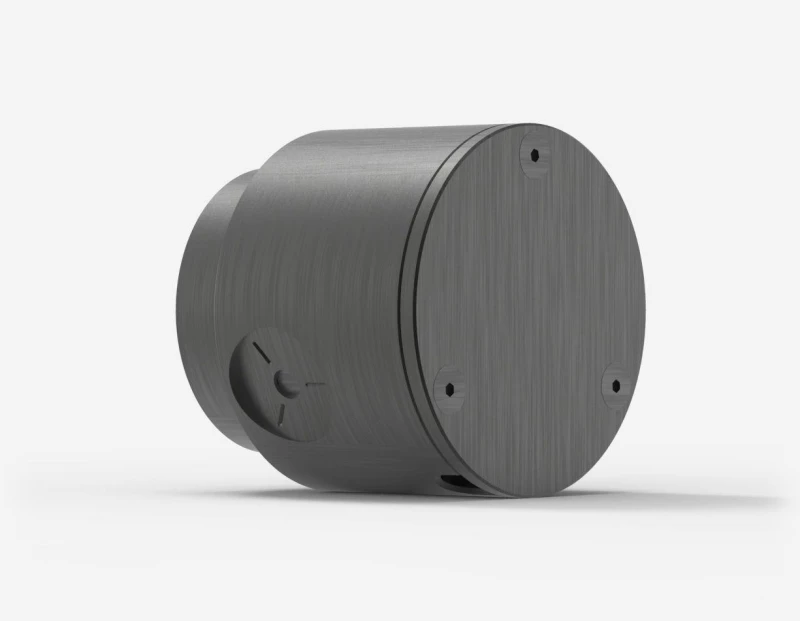

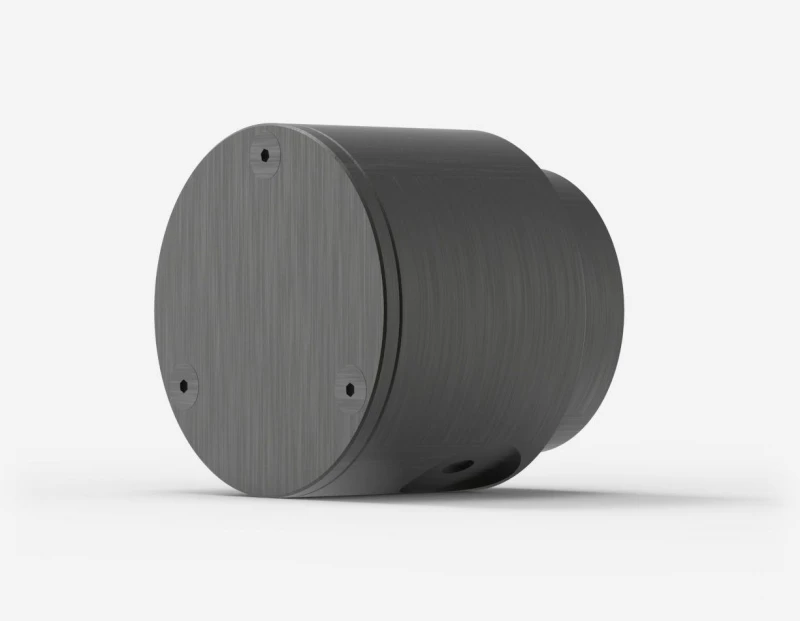

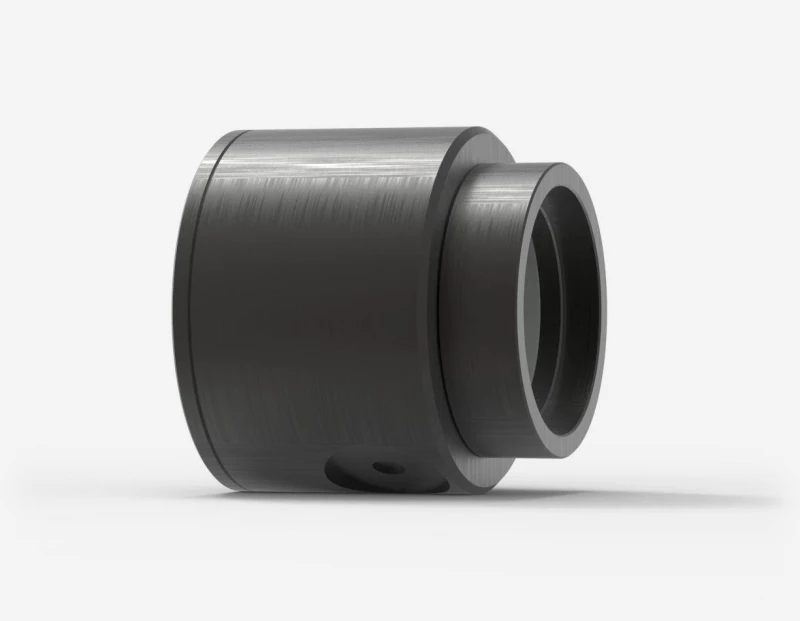

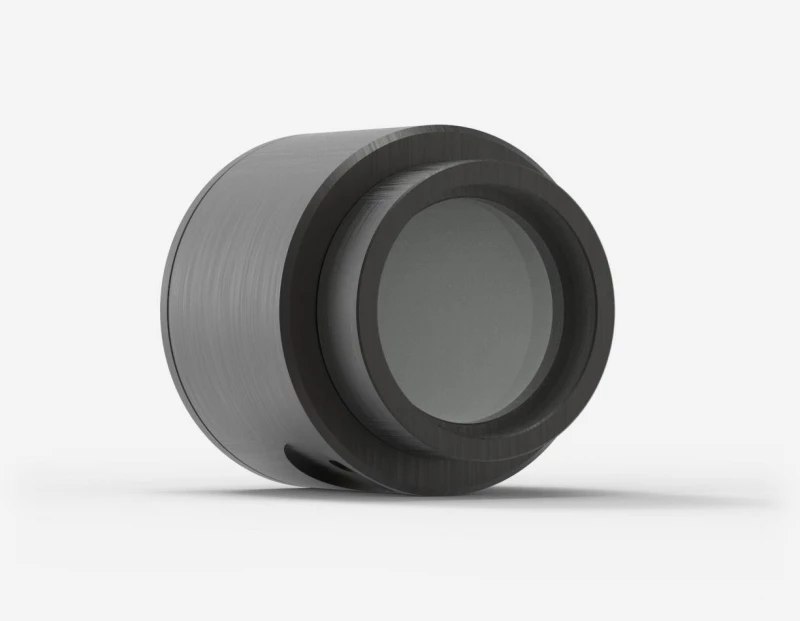

PH100-SI-HA-OD1-D0 Photodiode Detector for Laser Power Measurement
Description
The Gentec PH100-SI-HA-OD1-D0 is a highly sensitive photodiode detector designed for precise laser power measurement, catering to power levels up to 300 mW. With exceptional noise reduction and a wide spectral range, this detector ensures accurate and reliable measurements for various laser applications. Its compact form factor and robust features make it an essential tool for research, industrial, and educational purposes.
PH100-SI-HA-OD1-D0 Photodiode Detector for Laser Power Measurement
Specifications |
|
|---|---|
| Diode Type: | Si |
| Wavelength Of Operation: | 420 - 1080 nm |
| Max Frequency Response: | Other / Not specified |
| Active Area Size: | Custom Size |
| Dark Current: | < 1 nA, 1-10 nA, 10-100 nA, > 100 nA |
| Package Type: | TO-Can |
| Built-In Amplifier: | Not Specified |
| Applications: | Telecommunications |
| Maximum Average Power: | 300 mW |
| Noise Equivalent Power: | 200 pW |
| Typical Rise Time: | 0.2 s |
| Peak Sensitivity: | 960 nm |
| Minimum Repetition Rate: | 155 kHz |
| Maximum Average Power Density: | 100 W/cm² |
| Aperture Diameter: | 10 mm |
| Absorber: | Si |
| Dimensions: | 38.1Ø x 36D mm |
| Weight: | 0.14 kg |
| Distance To Sensor Face: | 13.7 mm |
Features
- High Sensitivity: Capable of measuring laser power up to 300 mW
- Low Noise Equivalent Power: Achieves a nominal value of 200 pW for precise measurements
- Broad Spectral Range: Covers wavelengths from 400 to 1080 nm
- Fast Response Time: Typical rise time of 0.2 seconds for efficient data acquisition
- Traceable Calibration: NIST-traceable calibration for consistent and accurate measurements
- Peak Sensitivity: Optimized for peak sensitivity at 980 nm
- Damage Thresholds: Engineered to withstand varying laser power levels
- Minimum Repetition Rate: Capable of handling repetition rates as low as 155 kHz
Applications
- Research and Development: Ideal for accurate laser power measurements in R&D environments
- Industrial Laser Systems: Suitable for analyzing laser power in industrial laser systems
- Educational Demonstrations: Enhances educational experiments and demonstrations in optics and photonics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The applications of the PH100-SI-HA-OD1-D0 include laser power detection, laser optics, spectroscopy, and metrology.
All detector heads are 27.4mm thick by 38.1 mm in diameter.
The Gentec-EO Photo Detector family includes nine photo detectors sensors.
The maximum average power of the PH100-SI-HA-OD1-D0 is 300 mW.
The weight of the PH100-SI-HA-OD1-D0 is 0.14 kg.
