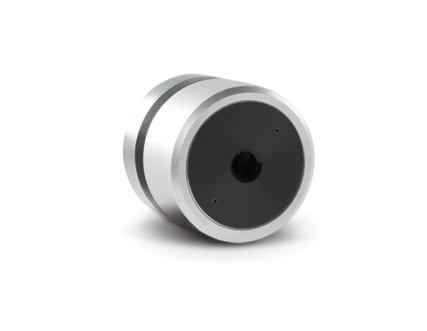

4-Quadrant Laser Position Sensing Detector QUAD-9-MT-P-D0
Description
The QUAD-4TRACK is an advanced Beam Position Measurement system. It is used with the Pulse Track Applications Software, which creates a full featured data acquisition system for measuring and displaying laser energy and beam position.
4-Quadrant Laser Position Sensing Detector QUAD-9-MT-P-D0
Specifications |
|
|---|---|
| Sensor Size: | 9 mm |
| Max Power: | 0.2 W |
| Min Detectable Power: | 0.001 mW |
| Spatial Resolution: | -- um |
| Max Power Density: | 100000 kW/cm^2 |
| Spectral Range: | 0.1-3000um |
| Min Sensitivity: | 2000000 mV/W |
Features
The QUAD-4TRACK is used with compatible Gentec-EO probes, the DPQ-J9, DPQ-J20, DPQ-R9, and DPQ-R20. The J series probes are used for pulsed laser applications, and the R series are used for Radiometric application. The QUAD-4TRACK can measure pulsed lasers up to 1000pps on each channel when using the J series probes. When using the R series probes the beam modulation rate can be set from 5Hz to 50Hz.
Applications
Laser beam position sensing
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The calibration uncertainty of the QUAD-4TRACK is ±4%.
The maximum chopping frequency of the QUAD-4TRACK is 50 Hz.
The QUAD-4TRACK is an advanced Beam Position Measurement system used for laser beam position sensing.
The weight of the QUAD-4TRACK is 0.18 kg.
The QUAD-4TRACK is used with compatible Gentec-EO probes, the DPQ-J9, DPQ-J20, DPQ-R9, and DPQ-R20.
