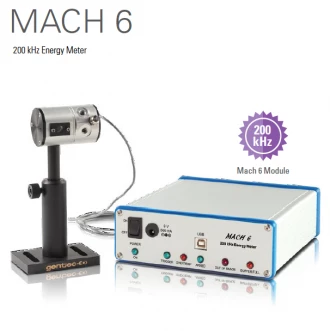

200 kHz Energy Meter M6-6-In-L

Name: 200 kHz Energy Meter M6-6-In-L
Brand: Gentec-EO
Availability: InStock

Description

Measure every pulse at up to 200 kHz with MACH 6. Measure with 12-bit digital accuracy and capture up to 4 million pulses in real time. Our MACH 6 Joulemeter is the only instrument in the world that performs at this speed, and with this precision.

It is designed to support our full complement of fast energy probes that include Silicon, InGaAs and Pyroelectric Detectors. Measure from pJ to mJ and from 0.35 to 2.5 μm. Using the M6-Si detector and the M6-UV-QED accessory, you can make relative measurements at 266 nm.

Specifications

Max Measurable Energy:	0.2 mJ
Max Repetition Rate:	200000 Hz
Effective Aperture:	6 mm
Spectral Range:	0.9 – 1.6 um
Max Average Power:	5 W
Noise Equivalent Energy:	2 nJ
Rise Time:	150 ns
Max Pulse Width:	100 nsec
Calibration Uncertainty:	± 4%
Repeatability:	± 1%
Max Avg Power (60 Seconds):	5 W

Download Data Sheet

Features

Up to 200 khz pulse-to-pulse

Capture and store up to 4 million pulses

Track missing pulses and pulses below threshold

Several heads to choose from

Analog module available

Full-speed usb 2.0 connection

User-friendly software with many diagnostic features

Applications

Beam Diagnostics

OEM Detectors

THz Detectors

Photo Detectors

High Power Solutions

Spectroscopy

Metrology

Name

Work Email

Organization

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Gentec-EO

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the MACH 6 Joulemeter?

The MACH 6 Joulemeter is an energy meter that can measure every pulse at up to 200 kHz with 12-bit digital accuracy and capture up to 4 million pulses in real time.

What types of energy probes are supported by the MACH 6 laser energy meter?

The MACH 6 Joulemeter is designed to support a full complement of fast energy probes that include Silicon, InGaAs, and Pyroelectric Detectors.

What is the measurement range of the MACH 6 laser energy detector?

The MACH 6 Joulemeter can measure from pJ to mJ and from 0.35 to 2.5 μm.

What are the key features of the MACH 6 laser energy meter?

The key features of the MACH 6 Joulemeter include up to 200 kHz pulse-to-pulse measurement, the ability to capture and store up to 4 million pulses, the ability to track missing pulses and pulses below threshold, several heads to choose from, an analog module available, full-speed USB 2.0 connection, and user-friendly software with many diagnostic features.

What are the available models and accessories for the MACH 6 Joulemeter?

The available models for the MACH 6 Joulemeter include M6-6-Si, M6-6-Si-L, M6-6-In, M6-6-In-L, M6-6-PY, and M6-12.5-PY. The accessories include a USB cable, Pelican carrying case, M6-UV-QED accessory, APM analog power supply, additional 9V power supply, and stand with Delrin post.
