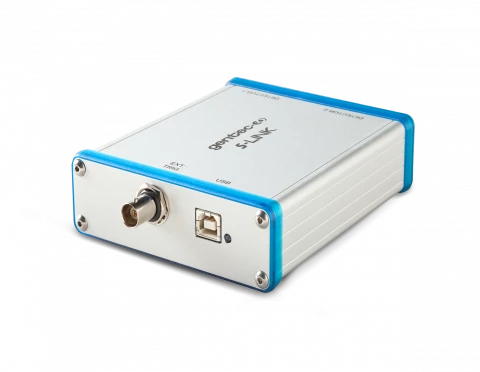

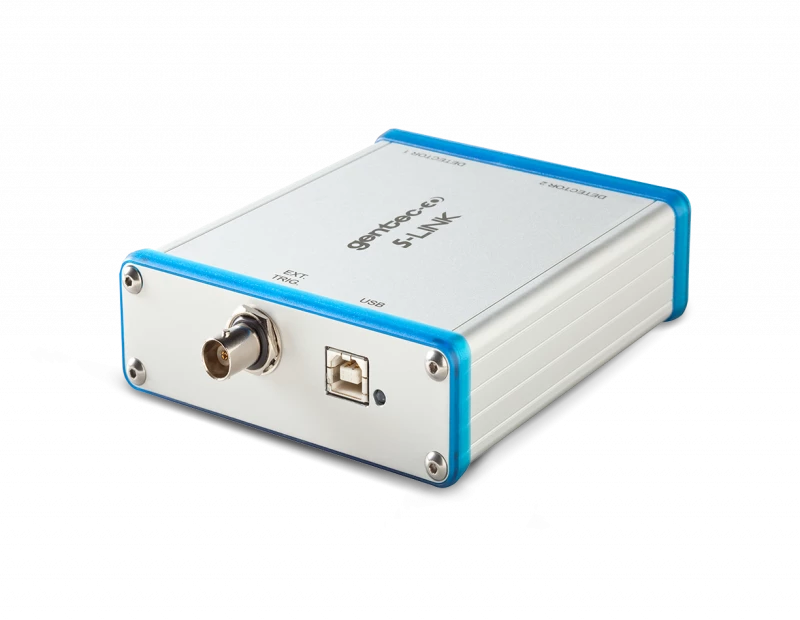

Gentec-EO - Single Channel Energy and Power Monitor - S-LINK-1-Ethernet
Description
Introducing the S-LINK series by Gentec-EO, the ultimate solution for precision power and energy monitoring in laser systems. Available in both single-channel (S-LINK-1) and dual-channel (S-LINK-2) configurations, these monitors seamlessly integrate with your PC, offering unmatched versatility and ease of use.
Equipped with the capability to read from thermopile and pyroelectric detectors, the S-LINK series excels in delivering accurate measurements across a wide range of power and energy levels. Whether you prefer USB or Ethernet connectivity, these monitors provide the flexibility to suit your setup, with the USB versions being conveniently port-powered.
Designed with the user in mind, the S-LINK monitors feature an intuitive interface, complete with real-time data display and extensive statistical analysis tools. With the fastest data transfer rate in the industry at 10 kHz per channel and standard external triggers, these monitors are engineered to keep pace with the most demanding applications.
Gentec-EO - Single Channel Energy and Power Monitor - S-LINK-1-Ethernet
Specifications |
|
|---|---|
| Detector Compatibility: | Pyroelectric, Thermopile |
| Min Measurable Energy: | <100 fJ |
| Max Measurable Energy: | <100 kJ |
| Min Measurable Power: | < 10 uW |
| Max Measurable Power: | <100 kW |
| Energy Monitor Accuracy: | <2% |
| Power Monitor Accuracy: | <2% |
Features
- Dual and Single Channel Options: S-LINK-1 for single-channel and S-LINK-2 for dual-channel monitoring, accommodating various measurement needs.
- Compatibility: Works with both thermopile and pyroelectric detectors, ensuring versatility across a wide range of measurement scenarios.
- PC Integration: Comes with software for seamless PC connectivity, facilitating comprehensive data analysis and management.
- Connectivity Choices: Offers both USB and Ethernet options, with USB versions being port-powered for added convenience.
- High-Speed Data Transfer: Data transfer rates reach up to 10 kHz per channel, ensuring rapid and efficient data collection.
- Comprehensive Data Display: Real-time data display includes a wide array of formats such as ratio, line plot, histogram, and more for in-depth analysis.
- External Triggering: Features a standard external trigger (2.4 V to 24 V) for synchronized measurements across systems.
- User Control: Allows full control through serial commands on all versions, providing flexibility in operation.
Applications
- Research and Development: Ideal for R&D labs in academia and industry, where precise measurements of laser power and energy are crucial for experiments.
- Manufacturing Process Control: Useful in monitoring laser systems in manufacturing processes such as cutting, welding, and engraving to ensure optimal performance.
- Quality Assurance: Plays a key role in quality assurance in industries relying on laser technology, ensuring the consistency and reliability of laser outputs.
- Medical Device Testing: Essential for the calibration and testing of medical laser devices, guaranteeing their safe and effective operation.
- Photonics: Supports photonics research and development, where accurate power and energy measurements are fundamental for the study and application of light.
- OEM Integration: Suitable for OEM applications where integrated monitoring of laser power and energy within products or systems is required.
- Educational Labs: Provides an educational tool in academic settings for students and researchers to learn and experiment with laser power and energy measurements.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO Single Channel Energy and Power Monitor is a PC-based energy and power monitor that reads both power and energy from thermopiles and pyroelectrics.
The monitor is compatible with thermopile and pyroelectric detectors.
The monitor is available with 1 or 2 channels. The S-LINK-1 and S-LINK-2 models are now available.
The monitor connects to your PC with included software and is PC-based.
The monitor has the fastest data transfer rate with all the points transferred directly into your PC at 10 kHz/Channel.
