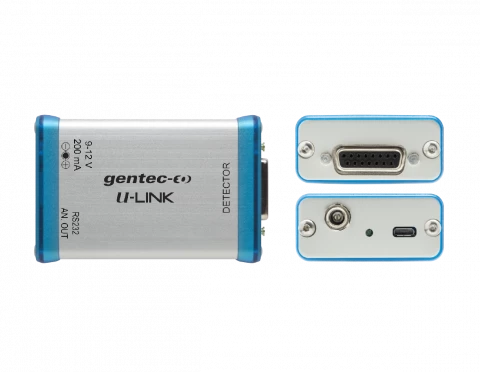

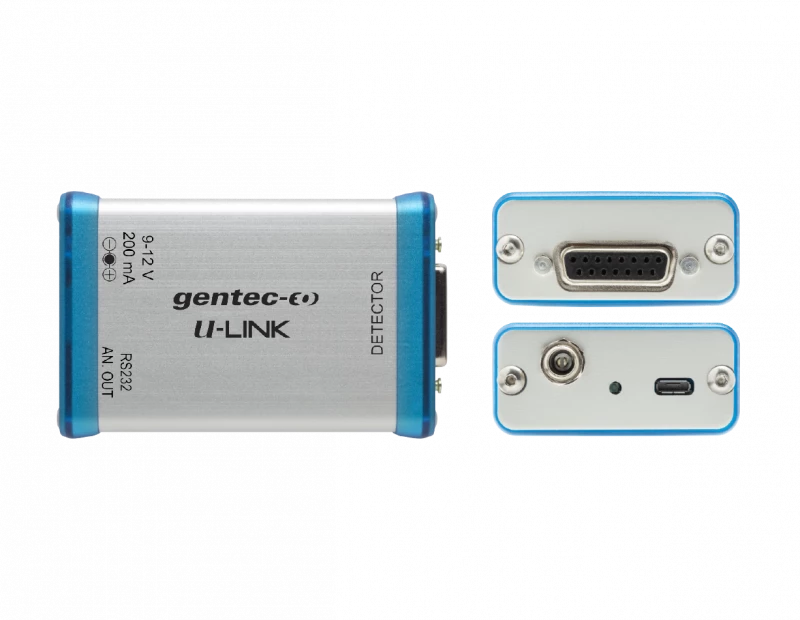

PC Interface For Power Measurement U-LINK RS232

Name: PC Interface For Power Measurement U-LINK RS232
Brand: Gentec-EO
Availability: InStock

Description

The U-LINK (RS-232) is a single-channel PC interface designed for precise power and energy measurement. This versatile interface, with RS-232 output, offers comprehensive control and data acquisition capabilities through the user-friendly PC-Gentec-EO software. It is a valuable tool for professionals in need of accurate measurement and analysis of laser power and energy.

Specifications

Detector Compatibility:	Thermopile, Pyroelectric, Photodiode
Min Measurable Energy:	Not Applicable
Max Measurable Energy:	Not Applicable
Min Measurable Power:	<10 pW
Max Measurable Power:	<100 kW
Energy Monitor Accuracy:	Not Applicable
Power Monitor Accuracy:	<1%
Digital Display Size:	Computer screen
Data Display:	Real time, ratio, line plot, histogram, statistics and 3D histogram
Analog Output:	0-2 V, adjustable, full scale, ±1 %
External Trigger:	None
Real-time Data Transfer:	1 kHz
Serial Commands Via:	RS-232
Power Range:	4 pW - 30 kW
Digital Resolution:	23 bits on current scale
Device Accuracy:	±0.5 % ±3 µV
Statistics:	Current value, max, min, average, standard deviation, RMS & PTP stability, time
Energy Range:	2 fJ to 30 kJ
Digital Resolution:	Current Scale/3754
Device Accuracy:	1 % ±50 µV (< 500 Hz) 2 % ±50 µV (500 Hz - 10 kHz)
Software Trigger Level:	0.1 to 99.9 %, 0.1 % resolution, default 2 %
Repetition Rate:	10 kHz
Real-time Data Transfer:	1 kHz with time stamp, no missing point
Statistics:	Current value, max, min, average, standard deviation, RMS & PTP stability, pulse #, repetition rate and average power
Dimensions:	57W x 26H x 91D mm
Weight:	0.105 kg

Download Data Sheet

Features

Comprehensive Software Interface: The PC-Gentec-EO software provides complete control and measurement options
Connection Control: Easily connect or disconnect your device
Turbo Mode: Activate or deactivate turbo mode for enhanced performance
Zero Adjustment: Remove thermal offsets with the zero function
Measurement Settings: Save or load measurement settings
User Manual: Access information and user guidance
Measurement Configuration: Configure wavelength, measurement range, mode, corrections, and trigger level
Multiple Display Options: Choose from various display types for real-time data visualization
Data Acquisition Control: Set parameters for data acquisition in power or energy mode
File Saving: Save raw data and associated statistics

Applications

Laser Power Measurement: Ideal for professionals requiring precise laser power measurements
Energy Measurement: Suitable for applications involving energy measurement
Research and Development: Valuable for R&D purposes where laser measurements are critical

Name

Work Email

Organization

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Gentec-EO

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What types of sensors can the U-LINK (RS-232) read?

The U-LINK (RS-232) can read laser power sensors such as thermopiles, photodetectors, and pyroelectrics, as well as energy sensors in single shot mode for thermopiles, photodetectors, and pyroelectrics.

What is the power range that the U-LINK (RS-232) can measure?

The U-LINK (RS-232) can measure power in the range of 4 pW to 30 kW.

What is the energy range that the U-LINK (RS-232) can measure?

The U-LINK (RS-232) can measure energy in the range of 2 fJ to 30 kJ.

What is the accuracy of the U-LINK (RS-232) device?

The device accuracy is ±0.5% ±3 µV for power measurements and 1% ±50 µV (< 500 Hz) or 2% ±50 µV (500 Hz - 10 kHz) for energy measurements.

What kind of data display options does the U-LINK (RS-232) offer?

The U-LINK (RS-232) offers data display options such as real-time, ratio, line plot, histogram, statistics, and 3D histogram.

What is the real-time data transfer rate of the U-LINK (RS-232)?

The real-time data transfer rate of the U-LINK (RS-232) is 1 kHz with a time stamp and no missing points.

What are the dimensions and weight of the U-LINK (RS-232)?

The dimensions of the U-LINK (RS-232) are 57W x 26H x 91D mm, and it weighs 0.105 kg.
