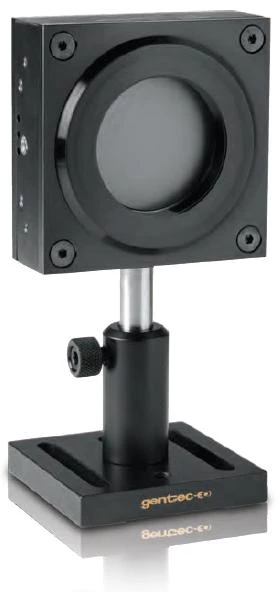

Gentec-EO - High Power Detectors - UP50N-50F-W9
Description
Gentec-EO offers UP50 series high power detectors for industrial and laboratory applications.
Gentec-EO - High Power Detectors - UP50N-50F-W9
Specifications |
|
|---|---|
| Max Average Power: | 50 W |
| Effective Aperture: | 50 mm |
| Spectral Range: | 0.19-10um |
| Cooling Method: | Fan-cooled |
| Max Average Power (1 Minute): | 85 W |
Features
1. MODULAR CONCEPT
Increase the power capability of your detector: 4 different cooling modules
2. VERY HIGH DAMAGE THRESHOLD
100 kW/cm2 in average power density
3. VERY LARGE APERTURE
50 mm Ø effective aperture, perfect for the largest beams
4. HIGHEST ENERGY READINGS IN THE SERIES
Measure single shot energy up to 500 J
5. SMART INTERFACE
Containing all the calibration data
Applications
- Power output measurements of high power lasers in a wide spectral range
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The UP50N-50F-W9 high power detector is used for power output measurements of high power lasers in a wide spectral range.
The effective aperture of the detector is 50 mm Ø, making it perfect for the largest beams.
Yes, the power capability of the detector can be increased with 4 different cooling modules.
The highest energy reading that can be measured with this detector is up to 500 J for single shot energy.
The detector has a very high damage threshold of 100 kW/cm2 in average power density.
