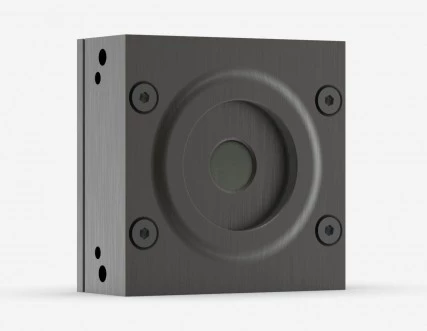

Gentec-EO Thermal Detector UP10K-2S-H5-L-D0
Description
The Gentec-EO UP series stands at the forefront of laser power detection technology, offering a versatile lineup of opto-thermal sensors tailored to meet the precise demands of various applications. This series encompasses seven distinct families, including XLP12, UP12, UP10, UP17, UP19, UP25, and UP55, each engineered for exceptional performance across a spectrum of power densities.
Designed for flexibility, the UP series provides an array of cooling options, from standalone units to advanced water-cooled systems, ensuring optimal performance in any setting. Whether for industrial, medical, or research purposes, the Gentec-EO UP series delivers reliable, high-quality measurements, solidifying its position as a go-to choice for professionals seeking accuracy and durability in laser power detection.
Gentec-EO Thermal Detector UP10K-2S-H5-L-D0
Specifications |
|
|---|---|
| Max Average Power: | 2 W |
| Effective Aperture: | 10 mm |
| Spectral Range: | 0.19-20um |
| Cooling Method: | No cooling |
Features
- Designed for laser power measurements up to 2 W, making it suitable for low-power applications.
- Low noise level, combining the sensitivity of a photodetector with the bandwidth and high power capacity of a thermal device.
- Includes an IR filter (in UPF10 models) to eliminate unwanted IR interference, enhancing measurement accuracy.
- High performance with a fast rise time of 1.1 seconds and a high damage threshold of 36 kW/cm².
- Compact design with a thickness of only 13 mm (in the UP10P model), allowing for easy integration into various setups.
- Energy mode capable of measuring single-shot energy up to 3 J.
- Smart interface containing all necessary calibration data for straightforward operation.
- Broad spectral range from 0.19 to 20 μm, accommodating a wide variety of laser types.
- High repeatability (±0.5%) and power calibration uncertainty of ±2.5%, ensuring reliable measurements.
Applications
- Precision Laser Alignment: Ideal for aligning low-power laser systems in precision applications where accuracy is paramount, such as in optical laboratories or manufacturing of sensitive components.
- Laser Diagnostics: Suitable for diagnostic applications where low-power laser sources are used, such as in biomedical imaging or low-power laser therapy devices.
- Educational Purposes: Can be used in educational settings for demonstrations and experiments involving low-power lasers, helping students understand laser characteristics and measurement techniques.
- Laser Safety Testing: Useful in safety testing of low-power laser products to ensure they meet regulatory standards, important in consumer electronics and laser safety eyewear testing.
- Optical Sensor Calibration: Can be employed in the calibration of optical sensors that interact with low-power laser beams, ensuring sensor accuracy and reliability in various applications.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The UP series of laser power detectors is suitable for laser power measurements, laser optics, spectroscopy, and metrology.
The UP detectors are supplied with an 1.8 m (6 ft) length flexible cable with output connection options including DB-5 "intelligent" male connector, INTEGRA USB connector, INTEGRA RS-232 connector, BLU wireless option (no cable), BNC connector, Molex connector, and BNC/Molex connector.
The UP series of laser power detectors has a high damage threshold of 36 kW/cm2.
The Gentec-EO UP series of laser power detectors include seven families of opto-thermal sensors with different cooling options, with or without amplification.
The typical rise time for the UP series of laser power detectors is 1.1 sec.
