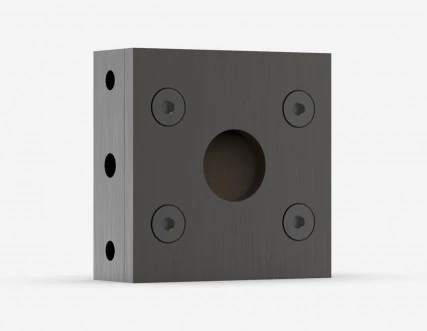

Gentec-EO Thermal Detector UP12E-10S-H5-D0
Description
The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.
The high power surface absorber sensors are designed for use at high average power densities. The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.
Gentec-EO Thermal Detector UP12E-10S-H5-D0
Specifications |
|
|---|---|
| Max Average Power: | 10 W |
| Effective Aperture: | 12 mm |
| Spectral Range: | 0.19-20um |
| Cooling Method: | No cooling |
Features
- Modular Concept: Three different cooling modules are available to enhance the detector's power capacity, allowing customization based on specific needs.
- High Performance: Boasts a quick response with a rise time of just 0.3 seconds and a robust damage threshold of 36 kW/cm², ensuring both speed and durability in measurements.
- Compact Design: The detector's slim profile, at only 14 mm thick for the 10S model, ensures it fits seamlessly into various setups without taking up excessive space.
- Energy Measurement Mode: Capable of measuring single-shot laser energy up to 5 J, providing versatility in application.
- Smart Interface: Integrated with all essential calibration data for ease of use, ensuring accurate and reliable measurements.
- Wide Spectral Range: Accommodates a broad spectral range from 0.19 to 20 μm, making it suitable for a diverse array of laser types and applications.
Applications
- Laser Power Measurements: This detector is ideal for professionals who need to precisely measure and monitor the power output of lasers in a variety of settings, from research laboratories to industrial manufacturing processes.
- Laser Optics: Its capability to handle a wide spectral range from 0.19 to 20 μm makes it a valuable tool in the field of laser optics, especially for aligning, testing, and optimizing laser systems and their components.
- Spectroscopy: The UP12E-10S-H5-D0's precise measurement capabilities are essential in spectroscopy applications, where accurate laser power control can significantly impact the quality and reliability of spectroscopic analysis.
- Metrology: In metrology, where precise measurements are paramount, this detector provides the necessary accuracy and repeatability for calibrating and verifying the performance of laser-based measurement systems, ensuring compliance with stringent standards.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The applications of the Gentec-EO Thermal Detector UP12E-10S-H5-D0 include laser power measurements, laser optics, spectroscopy, and metrology.
The UP detectors are supplied with an 1.8 m (6 ft) length flexible cable with output connection options: DB- 5 "intelligent" male connector for use with a Gentec-EO display or PC interface, INTEGRA USB connector, INTEGRA RS-232 connector, BLU wireless option (no cable), BNC connector, Molex connector, and BNC/Molex connector.
The damage threshold of the Gentec-EO Thermal Detector UP12E-10S-H5-D0 is 36 kW/cm2.
The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.
The maximum average power that the Gentec-EO Thermal Detector UP12E-10S-H5-D0 can measure is 10 W.
