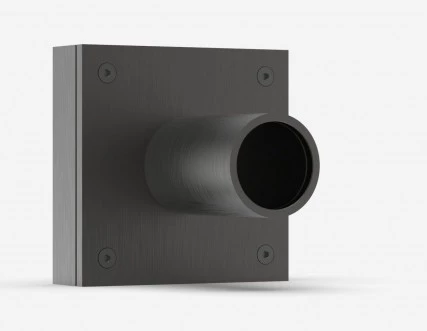

Gentec-EO Thermopile Detector XLP12-3S-VP-D0
Description
The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.
The high power surface absorber sensors are designed for use at high average power densities. The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.
Gentec-EO Thermopile Detector XLP12-3S-VP-D0
Specifications |
|
|---|---|
| Max Average Power: | 3 W |
| Effective Aperture: | 12 mm |
| Spectral Range: | 0.25-20um |
| Cooling Method: | Heatsink |
Features
- Low Power Thermopile: Combines the low noise level typical of a photodetector with the broad bandwidth and high power capacity of a thermal device, offering an optimal blend of sensitivity and range.
- Minimal Thermal Drift: Exhibits exceptionally low thermal drift at only 6 µW/°C when equipped with the IR filter, ensuring stable performance across varying temperatures.
- High Sensitivity: Delivers high sensitivity of 200 mV/W without the IR filter, enabling the detection of even the slightest power variations in laser output.
- Special Model for Ultrashort Pulses: The VP (volume absorber) version is specially designed for low power lasers with ultrashort pulses in the picosecond (ps) and femtosecond (fs) range, providing accurate measurements for advanced laser technologies.
- IR Filter: The XLPF12 model includes an IR filter to eliminate unwanted infrared interference, ensuring cleaner and more accurate readings.
- Isolation Tube: Incorporates an isolation tube to mitigate power fluctuations caused by air turbulence, enhancing measurement consistency and reliability.
- Compatibility: Fully compatible with a range of stands and display interfaces, ensuring easy integration into existing setups.
Applications
- Laser power measurements
- Laser optics
- Spectroscopy
- Metrology
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO Thermopile Detector XLP12-3S-VP-D0 is suitable for laser power measurements, laser optics, spectroscopy, and metrology.
What is the maximum average power that the Gentec-EO Thermopile Detector XLP12-3S-VP-D0 can measure?
The Gentec-EO Thermopile Detector XLP12-3S-VP-D0 can measure a maximum average power of 3 W.
The noise equivalent power of the Gentec-EO Thermopile Detector XLP12-3S-VP-D0 is 0.5 μW.
The thermal drift of the Gentec-EO Thermopile Detector XLP12-3S-VP-D0 is only 6 µW/°C (with the IR filter).
The typical rise time of the Gentec-EO Thermopile Detector XLP12-3S-VP-D0 is 3 seconds.
