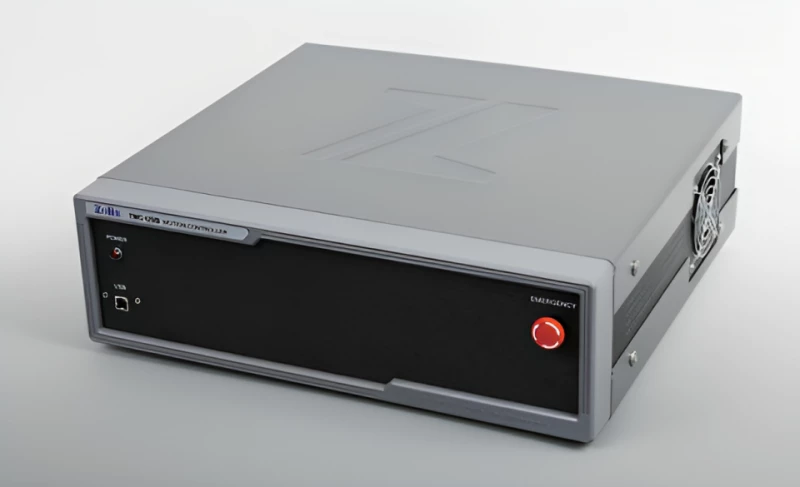

TMC-USB series controllers
Description
TMC-USB Series Controllers from Zolix are versatile solutions designed for comprehensive motion control across multidimensional applications. These controllers cater to a diverse range of motor types, including two-, three-, and five-phase stepping motors, servo motors, linear motors, and DD motors. They are notable for their compatibility with a variety of motors, offering extensive flexibility for multi-axis combinations.
Developed in a LABVIEW environment, the accompanying software is user-friendly and facilitates seamless integration with other equipment at the customer's site. A built-in database contains controlling parameters for all of Zolix's motorized stages, ensuring straightforward operation. The software interface can display operation parameters of each axis, allowing control of individual or multiple axes simultaneously. These features, along with the ability to run four independent thread procedures, make the TMC-USB series ideal for automatic production lines and testing instruments.
TMC-USB series controllers
Specifications |
|
|---|---|
| Output Of Single Controlling Card: | Pulse control of 2- or 4-channel stepping motor; optocoupler for isolation |
| Maximum Output Frequency: | 4MHz |
| Error On Pulse Output Frequency: | < 0.1% |
| Interpolation: | Linear-interpolation of 2 to 3 random axes; Circle-interpolation of 2 random axes |
| Continuous Interpolation Function: | Yes |
| Type Of Acceleration/ Deceleration: | Linear |
| Digit Of Logic Counter For Positioning: | 32 |
| Capability Of Real-Time Changing Of Speed: | Yes |
| Position Detection Of Each Axis: | Input ports provided for independent left- and right-side-limit sensors and origin-point sensor, for each axis |
| Inputs: | Up to 8-channel optocoupler input for each axis |
| Inputs Of Encoder: | Pulsed optocoupler inputs for A- and B-phase of encoder |
| Outputs: | Up to 8-channel optocoupler output of open-collector for each axis |
| Operation Conditions - Power Supply: | 220V AC +/- 10% 45-65Hz |
| Operation Conditions - Power Consumption: | < 1KW |
| Working Temperature Range: | 0℃~50℃ |
| Storage Temperature Range: | -20℃~80℃ |
| Working Humidity Range: | 20％~95% |
| Storage Humidity Range: | 0%~95% |
Features
Versatility and Compatibility: The TMC-USB Series Controllers are compatible with a variety of motors including two-, three-, and five-phase stepping motors, servo motors, linear motors, and DD motors.
User-Friendly Software: Developed in a LABVIEW environment, the software is easy to use and facilitates seamless integration with other equipment.
Comprehensive Control: The software interface displays operation parameters for each axis, allowing control over individual or multiple axes simultaneously.
Multi-Axis Combination: The controllers offer high flexibility for multi-axis combinations, meeting the requirements of multi-dimension motions.
Built-In Database: A built-in database of controlling parameters for all Zolix motorized stages ensures easy and straightforward operation.
High Precision: The controllers offer a maximum output frequency of 4MHz and an error on pulse output frequency of less than 0.1%.
Real-Time Adjustments: Capable of real-time speed changes during motions and features inputs for position detection of each axis.
Environmental Adaptability: Designed to operate efficiently in varying environmental conditions with a working temperature range of 0℃~50℃ and a humidity range of 20％~95%.
Applications
Automated Production Lines: Ideal for integration into automated production lines due to their versatility and the ability to control multiple axes.
Research and Development Labs: Suitable for use in R&D labs where precision movement and control are essential for experiments and testing.
Optical Experimentation: The precision and control offered by the controllers make them suitable for optical experiments.
Robotics and Automation: Can be used in robotics for precise movement control and in automation systems requiring multi-dimensional motion control.
Testing Instruments: Suitable for operation with automatic testing instruments due to their high precision and versatility.
Medical Equipment: Can be implemented in medical devices that require precise motion control.
Semiconductor Manufacturing: Ideal for applications in semiconductor manufacturing where precision and multi-axis control are crucial.
