EKSMA - Compact Translation Stage 860-0010
Description

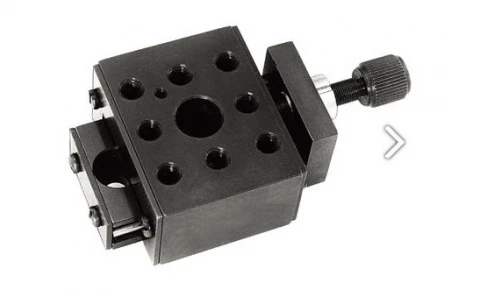

The model 860-0010 compact translation stage is well suited for positioning applications in laboratory experiments requiring linear motion within small space. Ball bearing rolling between opposing of hardened, polished steel rods provide smooth, accu-rate translating platform's ride.
Model 860-0010 stages are designed to stack for X-Y motion. Vertical motion may be also added using model 810-0100 angle bracket. Model 860-0010 stage provides 13 mm travel with 5 µm resolution and max. 3 kg loading capacity. Max. straightness is ± 6 µm only.
Model 860-0010 is completed with steel screw M6×0.5mm and brass collar with an outer thread M10×1mm for mounting. Additionally model 860-0010-02 is completed with model 870-0010 precise screw. 860-0010-04 option comes with model 870-0020 micrometer screw with reading marks.
EKSMA - Compact Translation Stage 860-0010
Specifications |
|
|---|---|
| Travel Range: | 13 mm |
| Load Capacity (Horizontal): | 3 kg |
| Load Capacity (Vertical): | 3 kg |
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The model 860-0010 compact translation stage provides 13 mm travel with 5 µm resolution.
The model 860-0010 compact translation stage has a maximum loading capacity of 3 kg.
The maximum straightness of the model 860-0010 compact translation stage is ± 6 µm only.
The complementary products for the model 860-0010 compact translation stage are Large Rod with Rod Base 810-0050, Large Rod Mounting Clamp 810-0061, Movable Base 820-0090, Compact Translation Stages 860-0010 XYZ, and Angle Bracket 810-0100.
The price of the model 860-0010 compact translation stage is EUR 107.
