Page 2 - Linear Motorized Stages

Carrier.L1010.-2D Linear Stage with Piezoelectric Actuator
Zolix Instruments CO.,LTD
Add to watch list
Carrier.L1010.-2D Linear Stage with Piezoelectric Actuator
Compare
The LS25x.Lab.R Piezo-Linear Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports ...

Specifications
Axes Of Motion: One
Travel Range: 100 mm
Load Capacity (Horizontal): 4 kg
Load Capacity (Vertical): -- kg
Max Speed: 10 mm/s
...
Data Sheet
LS65x.Lab. High-Load Horizontal Motion Units with High Resolution
Zolix Instruments CO.,LTD
Add to watch list
LS65x.Lab. High-Load Horizontal Motion Units with High Resolution
Compare
The LS65x.Lab-Linear Stage is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports resistance type ...

Specifications
Axes Of Motion: One
Travel Range: 30 mm
Load Capacity (Horizontal): 0.15 kg
Load Capacity (Vertical): / kg
Max Speed: ~20 mm/s
...
Data Sheet
LS35x .Lab Linear motion with position control, high resolution & super-quiet motion
Zolix Instruments CO.,LTD
Add to watch list
LS35x .Lab Linear motion with position control, high resolution & super-quiet motion
Compare
The LS35x.Lab.O/.R is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports resistance type position ...

Specifications
Axes Of Motion: One
Travel Range: 20 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): / kg
Max Speed: ~20 mm/s
...
Data Sheet
LS35z.Lab.O.R Vertical motion with special design, various versions supplied
Zolix Instruments CO.,LTD
Add to watch list
LS35z.Lab.O.R Vertical motion with special design, various versions supplied
Compare
The LS35z.Lab.O.R is a compact and high-performance piezoelectric motion unit designed for room temperature (RT) applications. It is part of the "Lab Series" by MultiFields Technologies and offers precise and reliable motion control. The piezo-linear stage features a closed-loop control system and supports resistance type position ...

Specifications
Axes Of Motion: One
Travel Range: 10 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): / kg
Max Speed: ~10 mm/s
...
Data Sheet
Scanner55-z: Low-Temperature, High-Load Piezo Scanner Stage
Zolix Instruments CO.,LTD
Add to watch list
Scanner55-z: Low-Temperature, High-Load Piezo Scanner Stage
Compare
The Scanner55-z Low Temperature Piezo High-load scanner stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The ...

Specifications
Axes Of Motion: One
Travel Range: 0.12 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): / kg
Max Speed: / mm/s
...
Data Sheet
Scanner55-xy: Ultra-High Load Piezoelectric Scanner Stage for Low Temperature & High Vacuum Environments
Zolix Instruments CO.,LTD
Add to watch list
Scanner55-xy: Ultra-High Load Piezoelectric Scanner Stage for Low Temperature & High Vacuum Environments
Compare
Introducing the Scanner55-xy, a cutting-edge piezoelectric scanner stage, designed to meet the most demanding application needs in both low-temperature and high-vacuum environments. With its compact footprint, this high-load scanner stage seamlessly integrates into your setup, providing a blend of precision and versatility. The unit ...

Specifications
Axes Of Motion: One
Travel Range: 0.12 mm
Load Capacity (Horizontal): 0.5 kg
Load Capacity (Vertical): -- kg
Max Speed: - mm/s
...
Data Sheet
Scanner16-z: Ultra-Compact Low-Temperature Piezoelectric Scanner Stage
Zolix Instruments CO.,LTD
Add to watch list
Scanner16-z: Ultra-Compact Low-Temperature Piezoelectric Scanner Stage
Compare
The Scanner16-z, distinguished as the smallest low-temperature piezoelectric scanner stage, is a compact yet high-performance piezoelectric motion unit meticulously engineered for low-temperature applications. Featuring a sophisticated closed-loop control system, this piezo-linear stage comes with integrated position sensing, ...

Specifications
Axes Of Motion: One
Travel Range: 0.03 mm
Load Capacity (Horizontal): 0.01 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet
Scanner25-xy: Compact High-Load Piezoelectric Scanner Stage for Ultra-High Vacuum & Low Temperature Applications
Zolix Instruments CO.,LTD
Add to watch list
Scanner25-xy: Compact High-Load Piezoelectric Scanner Stage for Ultra-High Vacuum & Low Temperature Applications
Compare
The Scanner25-xy epitomizes a high-load, compact, and advanced piezoelectric motion stage, specifically engineered for low-temperature applications. Part of the “25 mm Series”, this stage presents a unique blend of features such as ultra-high vacuum compatibility down to 2 E-11 mbar, operability in very low temperatures ...

Specifications
Axes Of Motion: One
Travel Range: 0.055 mm
Load Capacity (Horizontal): 0.2 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet
Compact High-Load Scanner25-z: Low Temperature Piezoelectric Motion with Ultra-High Vacuum Compatibility
Zolix Instruments CO.,LTD
Add to watch list
Compact High-Load Scanner25-z: Low Temperature Piezoelectric Motion with Ultra-High Vacuum Compatibility
Compare
Discover the Scanner25-z, a member of our esteemed “25 mm Series,” epitomizing compactness and high performance in piezoelectric motion. With dimensions of 25 × 25 × 8.5 mm and a weight of just 20g, this scanner stage is designed for applications demanding high-load capacities up to 200g and compatibility with ...

Specifications
Axes Of Motion: One
Travel Range: 0.055 mm
Load Capacity (Horizontal): 0.2 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet
Scanner16-xy: The Smallest Low-Temperature Piezoelectric Scanner Stage
Zolix Instruments CO.,LTD
Add to watch list
Scanner16-xy: The Smallest Low-Temperature Piezoelectric Scanner Stage
Compare
Scanner16-xy Low Temperature Piezo Smallest scanner stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications. The piezo-linear stage features a closed-loop control system and supports  a built-in position sensing. It provides smooth and accurate movement. The Scanner16-xy ...

Specifications
Axes Of Motion: One
Travel Range: 0.03 mm
Load Capacity (Horizontal): 0.4 kg
Load Capacity (Vertical): -- kg
Max Speed: -- mm/s
...
Data Sheet

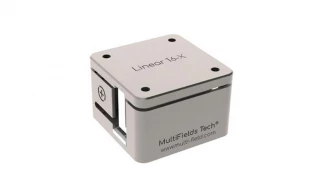

Low Temperature Piezoelectric Linear 16-x stage
Zolix Instruments CO.,LTD
Add to watch list
Low Temperature Piezoelectric Linear 16-x stage
Compare
The Linear 16-x is the smallest linear stage with closed control, it can be used in ultra-high vacuum and very low temperature, it features 0.1 um resolution.

Specifications
Axes Of Motion: One
Travel Range: 3 mm
Load Capacity (Horizontal): 0.05 kg
Load Capacity (Vertical): 0.01 kg
Max Speed: 2 mm/s
...
Data Sheet
Motorized XY Series All-in-One Two-Axis Stages
Zolix Instruments CO.,LTD
Add to watch list
Motorized XY Series All-in-One Two-Axis Stages
Compare
Zolix Motorized XY Series All-in-One Two-Axis Stages are designed and optimized for applications involving two dimensional motion control with high-precision and high repetition rate scanning.  XY series products are designed according to all-in-one principle and employ cross-roller guides and ball screws to construct ...

Specifications
Axes Of Motion: Two
Travel Range: 50-120 mm
Load Capacity (Horizontal): 4-20 kg
Load Capacity (Vertical): null kg
Max Speed: 40 mm/s
...
Data Sheet
Motorized XYR series all-in-one three-axis stages
Zolix Instruments CO.,LTD
Add to watch list
Motorized XYR series all-in-one three-axis stages
Compare
The XYR Series offers advanced motorized, three-axis stages designed for parallel alignment of workpieces requiring scanning or alignment in production lines. These stages are ideal for applications demanding high precision and consistent repetition. Each system in the series features an upper table, baseplate, and four motion ...

Specifications
Axes Of Motion: Three
Travel Range: 5-15 mm
Load Capacity (Horizontal): 20-50 kg
Load Capacity (Vertical): null kg
Max Speed: 20 mm/s
...
Data Sheet
E-NLS92-50-1V-B Linear Motorized High Precision Stage
Beijing Natsu Precision Technology Co. Ltd.
Add to watch list
E-NLS92-50-1V-B Linear Motorized High Precision Stage
Compare
The NLS series uses a specially customized voice coil motor, combined with high-resolution gratings and precision cross roller guides, in the mini. The small size also has the same high precision and high dynamics as the UMS series. Especially suitable for some applications that are very sensitive to volume scene.  ...

Specifications
Axes Of Motion: One
Travel Range: 50 mm
Load Capacity (Horizontal): 4 kg
Load Capacity (Vertical): 4 kg
Max Speed: 200 mm/s
...
Data Sheet
X-LHM025A Motorized Linear Stage with Built-in Controller
Zaber Technologies
Add to watch list
X-LHM025A Motorized Linear Stage with Built-in Controller
Compare
Zaber's X-LHM Series devices are computer-controlled, motorized linear stages with a compact size and affordable price tag. They are stand-alone units requiring only a standard 24 or 48 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer.   These ...

Specifications
Axes Of Motion: One
Travel Range: 200 mm
Load Capacity (Horizontal): 3 kg
Load Capacity (Vertical): 3 kg
Max Speed: 65 mm/s
...
Data Sheet
Large-table Motorized Linear Stage - KXS18100 (Slide Guide)
SURUGA SEIKI
Add to watch list
Large-table Motorized Linear Stage - KXS18100 (Slide Guide)
Compare
Suruga Seiki\'s large-table KXS Series linear motorized translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These motorized translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are ...

Specifications
Axes Of Motion: One
Travel Range: 100 mm
Load Capacity (Horizontal): 30 kg
Load Capacity (Vertical): 9 kg
Max Speed: 30 - 50 mm/s
...
Data Sheet
Ultra-thin Motorized Linear Stage - PG430 (Integrated Linear Ball Guide)
SURUGA SEIKI
Add to watch list
Ultra-thin Motorized Linear Stage - PG430 (Integrated Linear Ball Guide)
Compare
Suruga Seiki\'s PG Series linear motorized translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These motorized translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an ...

Specifications
Axes Of Motion: One
Travel Range: 30 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 3 kg
Max Speed: 10 mm/s
...
Data Sheet
High capacity Motorized Linear Stage - KS102-30 (Cross Roller Guide)
SURUGA SEIKI
Add to watch list
High capacity Motorized Linear Stage - KS102-30 (Cross Roller Guide)
Compare
Suruga Seiki\'s high capacity linear motorized translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These motorized translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in ...

Specifications
Axes Of Motion: One
Travel Range: 30 mm
Load Capacity (Horizontal): 20 kg
Load Capacity (Vertical): 6 kg
Max Speed: 10 mm/s
...
Data Sheet
Light weight Motorized Linear Stage - KXC04015 (Cross Roller Guide)
SURUGA SEIKI
Add to watch list
Light weight Motorized Linear Stage - KXC04015 (Cross Roller Guide)
Compare
Suruga Seiki\'s light-weight KXC Series linear motorized translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These motorized translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are ...

Specifications
Axes Of Motion: One
Travel Range: 15 mm
Load Capacity (Horizontal): 5 kg
Load Capacity (Vertical): 1.5 kg
Max Speed: 10 mm/s
...
Data Sheet
[Cave-X Positioner] Z-Axis Motorized Linear Stage - KZL06030 (Linear Ball Guide)
SURUGA SEIKI
Add to watch list
[Cave-X Positioner] Z-Axis Motorized Linear Stage - KZL06030 (Linear Ball Guide)
Compare
Suruga Seiki\'s Cave-X linear motorized translation stages are a great fit for applications which require a good accuracy combined with a relatively large travel range. These motorized translation stages are particularly popular in laser optics, spectroscopy, microscopy, and metrology applications. Whether you are working in an ...

Specifications
Axes Of Motion: One
Travel Range: 30 mm
Load Capacity (Horizontal): - kg
Load Capacity (Vertical): 7 kg
Max Speed: 20 mm/s
...
Data Sheet
Zaber Technologies - Miniature Motorized Linear Stage - X-LSM
Zaber Technologies
Add to watch list
Zaber Technologies - Miniature Motorized Linear Stage - X-LSM
Compare
Zaber\'s X-LSM Series devices are computer-controlled, motorized linear stages with high thrust and speed capabilities and a compact size. They are stand-alone units requiring only a standard 24 V or 48 V power supply. An optional indexed knob provides convenient manual control for versatile operation even without a computer. These ...

Specifications
Axes Of Motion: One, Two, Three
Travel Range: 200 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 10 kg
Max Speed: 104 mm/s
...
Data Sheet
STANDA 8MT167-25LS - Linear Motor Positioning Stage
Altos Photonics, Inc.
Add to watch list
STANDA 8MT167-25LS - Linear Motor Positioning Stage
Compare
Motorized Translation Stages 8MT167-25BS1, unlike the 8MT167-25LS, is designed for high-speed movement. Used ball bearing lead screw makes movement fast and smooth. The positioner also can be used with microscope on XY axles. As shown in the pictures, the upper plate has a removable insert in the center, the size of which 2 inches, ...

Specifications
Axes Of Motion: One
Travel Range: 25 mm
Load Capacity (Horizontal): 30 kg
Load Capacity (Vertical): 7 kg
Max Speed: 6 mm/s
...
Data Sheet
Zaber Technologies - Miniature Motorized Linear Stage - X-LSM-E
Zaber Technologies
Add to watch list
Zaber Technologies - Miniature Motorized Linear Stage - X-LSM-E
Compare
Zaber\'s X-LSM-E Series devices are computer-controlled, motorized linear stages with high thrust and speed capabilities and a compact size. They are stand-alone units requiring only a standard 24 V or 48 V power supply. The built-in motor encoder allows closed-loop operation and slip/stall recovery features. An optional indexed knob ...

Specifications
Axes Of Motion: One
Travel Range: 200 mm
Load Capacity (Horizontal): 10 kg
Load Capacity (Vertical): 10 kg
Max Speed: 104 mm/s
...
Data Sheet
Zaber Technologies - Motorized Linear Stage with Built-in Controller and Motor Encoder - X-LHM-E
Zaber Technologies
Add to watch list
Zaber Technologies - Motorized Linear Stage with Built-in Controller and Motor Encoder - X-LHM-E
Compare
Zaber\'s X-LHM-E Series devices are computer-controlled, motorized linear stages with a compact size and affordable price tag. They are stand-alone units requiring only a standard 24 or 48 V power supply. The built-in motor encoder allows closed-loop operation and slip/stall recovery features. An optional indexed knob provides ...

Specifications
Axes Of Motion: One
Travel Range: 200 mm
Load Capacity (Horizontal): 3 kg
Load Capacity (Vertical): 3 kg
Max Speed: 65 mm/s
...
Data Sheet
STANDA 8MT295X-340-2.5 - Long-Travel Motorized Linear Stages
Altos Photonics, Inc.
Add to watch list
STANDA 8MT295X-340-2.5 - Long-Travel Motorized Linear Stages
Compare
Long Travel Motorized Linear Stage 8MT295 series stages are designed to provide high-speed movement. Standard motors allow moving loads up to 60 kg. Load capacity can be increased using more powerful motors. This stage provides moderate resolution and accuracy. 8MT295 series stages are supplied equipped with 3P295 platform, 3BP295 ...

Specifications
Axes Of Motion: One
Travel Range: 340 mm
Load Capacity (Horizontal): 60 kg
Load Capacity (Vertical): 10 kg
Max Speed: 40 mm/s
...
Data Sheet
