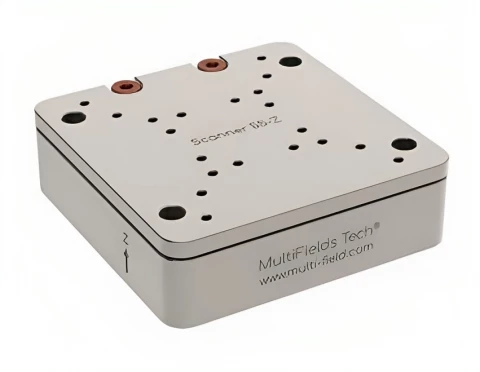

Scanner55-z: Low-Temperature, High-Load Piezo Scanner Stage
Description
The Scanner55-z Low Temperature Piezo High-load scanner stage is a compact and high-performance piezoelectric motion unit designed for low temperature (LT) applications.
The piezo-linear stage features a closed-loop control system and supports a built-in position sensing. It provides smooth and accurate movement. The Scanner55-z is available in different versions, including low temperature, vacuum options, catering to various application requirements.
Optional Versions:
- .HV: Default version.
- .ULT: For use at He3 or dilution cryogenics systems.
- .UHV: Compatible with 2E-11 mbar.
Scanner55-z: Low-Temperature, High-Load Piezo Scanner Stage
Specifications |
|
|---|---|
| Axes Of Motion: | One |
| Travel Range: | 0.12 mm |
| Load Capacity (Horizontal): | 0.5 kg |
| Load Capacity (Vertical): | / kg |
| Max Speed: | / mm/s |
| Weight: | 0.1 kg |
| Guiding Mechanism: | Other |
| Voltage Requirement: | Other |
| Capacitance @300 K: | 7 uF |
| Resolution: | 2 nm |
| Linearity Error: | Typical ~ 0.1 % |
Features
- Compact Design: Dimensions of 55*55*16.5 mm make it suitable for various applications.
- High Compatibility: Ultra-high vacuum (2 E-11 mbar) & very low temperature (30 mK) compatible.
- Non-Magnetic Material: Composed of pure Ti & BeCu, compatible with 18 Tesla magnetic fields.
- High Load Capacity: Can bear loads up to 500g.
- Long Travel Range: Up to 120 µm at 300 K.
- High Resolution Position Sensing: Up to 2 nm resolution.
Applications
- Precision positioning
- Microscopy
- Optics and photonics research
- Semiconductor manufacturing
- Life science applications
- Metrology and inspection systems
- Work in a cryostat
