Gx Series Cardan Joint "Hooke's Joint" Systems
Description
The Gx series motorized Cardan joint systems by Zolix are designed to meet the requirements of high-precision, highly repetitive adjustments of position and direction. These systems utilize multi-rotation joints, allowing objects fixed on the top table to rotate around the X-axis, Y-axis, or Z-axis separately.
The main body materials of these systems are made of hard black anodic-oxidation aluminum alloy, providing a nice appearance. The systems feature a through hole at the center of the stage, enabling unlimited rotating motions using conductive metal sliding rings.
They also offer optional external positioning sensors and stainless steel rotary shafts with fine grinding techniques. The modular design ensures easy maintenance, and customer-design proposals are available.
Gx Series Cardan Joint "Hooke's Joint" Systems
Specifications |
|
---|---|
Accessory Type: | Joints |
Highest Speed: | 20 degrees/sec |
Horizontal Load Capability: | 10 kg |
Table Diameter: | 60 to 200mm depending on the model |
Body Material: | Black Anodized Aluminum Alloy |
Features
- Capability for rotating objects around X-axis, Y-axis, or Z-axis
- Through hole for unlimited rotating motions
- Optional external positioning sensors
- Stainless steel rotary shafts with fine grinding techniques
- Modular design for easy maintenance
- Customizable design options
Applications
- Robotics and automation
- Precision positioning systems
- Industrial manufacturing
- Optics and photonics
- Research and development
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions

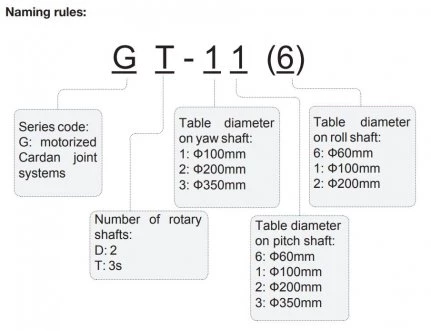

We currently offer 3 different models with varying dimensions and load capacity. Please refer to the downloadable data sheet for all potential options and ordering information.
Please contact us with the button on this page to directly reach out to us at Zolix Instruments and we will respond any questions you might have regarding pricing, shipping and ordering information.
The highest speed is measured with the conditions of zero-load and motors being worked at 600rpm.
Our stock availability and lead times varies from model to model and timing. Please send us a note through FindLight and we will get back to you regarding the availability of the specific model.
A Cardan joint system is a combination of multi-rotation joints that allow objects to rotate around the X, Y, and Z-axis separately.
The Gx series Cardan Joint Systems are constructed using hard black anodic-oxidation aluminum-alloy, which ensures light-weight construction, rigidity, and thermal stability.
Yes, the Gx series Cardan Joint Systems can come with two-phase stepping motors. Other types of motors may also be available as custom options.
The Cardan Joint system offered by Zolix Instruments allows precise rotational control of optical elements. It can be used for precise alignment in spectroscopic measurements, bio-medical experiments, optical setups, telescope alignment, and more.
The Gx series Cardan Joint system offers a through hole at the center of the stage for unlimited rotating motions, external positioning sensors (optional), a stainless steel rotary shaft, modular design for easy maintenance, and customer-design proposals as optional features.
