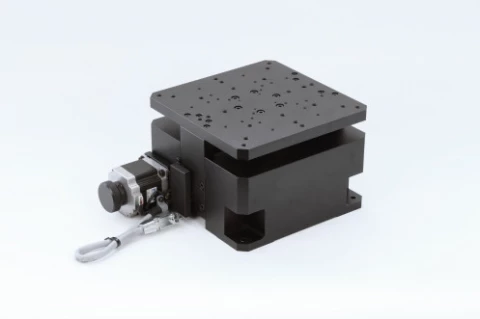

CZF8-60 High-Precision Motorized Vertical-Motion Stage
Description
The CZF series is a line of high-precision motorized vertical-motion stages designed by Zolix to meet the requirements of applications that demand precision and high repeated operation rates. These stages feature a durable construction with hard black anodic-oxidation aluminum alloy materials, providing both durability and a visually appealing appearance.
The stages employ linear-slider or cross-roller guides, known for their high strength, heavy load capacity, and excellent durability. The surface treatment of the guides using fine-grinding techniques contributes to their precision performance. With imported ball screws and two-phase stepping motors from Japanese brands, the CZF series ensures higher resolutions and positioning accuracy.
These stages are ideal for integration into automation equipment or instruments with strict requirements for space, size, and weight. They are also suitable for on-site production lines that operate within a short-travel range with a high repetition rate.
CZF8-60 High-Precision Motorized Vertical-Motion Stage
Specifications |
|
|---|---|
| Load Capacity: | 4 kg |
| Vacuum Compatible: | Yes |
| Microstep Size (default Resolution): | 0.3 um |
| Built-in Controller: | No |
| Travel Range: | 8 mm |
| Accuracy (unidirectional): | ± 2 um |
| Backlash: | ≤ 15 um |
| Loaded Backlash (10 N): | Not Specified |
| Maximum Speed: | 10 mm/s |
| Weight: | 1 kg |
| Guiding Mechanism: | High-Precision Profiled Rails |
| Voltage Requirement: | DC 24V |
| Table Dimensions: | 60x60 mm |
| Transmission Ratio: | 1:1 |
| Guide: | Cross-roller guides |
| Resolution (step/half-step): | 5/2.5 µm |
| 8-fine-subdivision Resolution: | 0.625 µm |
| Repositioning Accuracy: | ≤±3 µm |
| Motor And Its Stepping Angle (°): | Two-phase 28 stepping motor, 1.8 |
| Working Current: | 1.5 A |
| Torque Of Motor: | 0.0785 N·m |
| Length Of Cables For Stages: | 0.2 m |
| Consuming Current: | <60 mA |
Features
- High-resolution and positioning accuracy with Japanese stepping motors and ball screws
- Linear-slider or cross-roller guides provide high strength, heavy load capacity, and durability
- Fine-grinding techniques on guide installation surfaces ensure high motion accuracy
- Three sensors (two for position-limit and one for origin point) work with high flexible cables for easier
- maintenance
Applications
- Automation equipment
- Instruments with space, size, and weight constraints
- On-site production lines with short-travel range and high repetition rate
