Strain Gages

os3100 Optical Strain Gage
Luna Innovations
Add to watch list
os3100 Optical Strain Gage
Compare
The os3100 Optical Strain Gage is designed to make fiber handling easy and sensor installation fast and repeatable. Its stainless steel carrier holds the FBG in tension and protects the fiber during installation. Since there are no epoxies holding the fiber to the carrier, long term stability is ensured by design. For ...

Specifications
Strain Sensitivity: 1.4 pm/με
Gage Length: 22 mm
Operating Temperature Range: -40-120deg C
Strain Limits: -2,500-2,500με
Data Sheet
Inquire Price
os3150 Optical Strain Gage
Luna Innovations
Add to watch list

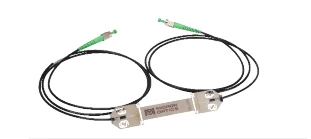

os3150 Optical Strain Gage
Compare
Optimized for outdoor installations on steel structures, the os3150’s stainless steel carrier holds the FBG in tension and protects the fiber during installation. Since there are no epoxies holding the fiber to the carrier, long term stability is ensured by design. For temperature compensation, the os3150 may be connected in ...

Specifications
Strain Sensitivity: 1.4 pm/με
Gage Length: 75 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -2,500-2,500με
Data Sheet
Inquire Price
os3155 Optical Strain Gage
Luna Innovations
Add to watch list
os3155 Optical Strain Gage
Compare
Optimized for outdoor installations on steel structures, the os3155’s stainless steel carrier holds the FBG in tension and protects the fiber during installation. Since there are no epoxies holding the fiber to the carrier, long term stability is ensured by design. The design is similar to the os3150 rugged strain gage but the ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 50 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -2,500-2,500με
Data Sheet
Inquire Price
os3200 Non-Metallic Optical Strain Gage
Luna Innovations
Add to watch list

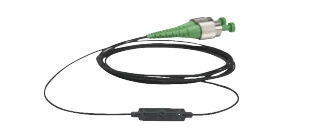

os3200 Non-Metallic Optical Strain Gage
Compare
The os3200 is based on fiber Bragg grating (FBG) technology. It has a self adhesive backing that holds the sensor body in place and protects the FBG while epoxy is injected. The epoxy encapsulates the FBG and bonds it to a structure’s surface. Installation time is just a few minutes. Measurements can be taken after the epoxy ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 10 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -5,000-5,000με
Data Sheet
Inquire Price
os3500 Embeddable Optical Strain Gage
Luna Innovations
Add to watch list
os3500 Embeddable Optical Strain Gage
Compare
The os3500 Embeddable Strain Sensor measures average strain over the length of the gage while providing integrated temperature compensation. It is based on fiber Bragg grating (FBG) technology. The os3500 is intended exclusively for embedding in concrete structures. Disk ends form a solid bond to surrounding concrete or grout. A ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 110 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -2,500-2,500με
Data Sheet
Inquire Price
os3600 Embeddable Optical Strain Sensor
Luna Innovations
Add to watch list
os3600 Embeddable Optical Strain Sensor
Compare
The os3600 is based on fiber Bragg grating (FBG) technology and is available two gage lengths of 25 or 100 cm. It is intended exclusively for embedding in concrete structures. Disk ends form a solid bond to surrounding concrete or grout. Universal ends allow the user to employ bolt-on, weld-on, or custom end brackets for attachment ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 250 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -2,500-2,500με
Data Sheet
Inquire Price
os3610 Surface Mount Optical Strain Gage
Luna Innovations
Add to watch list

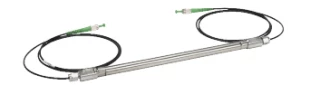

os3610 Surface Mount Optical Strain Gage
Compare
The os3610 is based on fiber Bragg grating (FBG) technology and is available two gage lengths of 25 or 100 cm. It is intended exclusively for surface mounting. Each end of the os3610 is attached to the structure via rigid brackets that are either welded, bolted, epoxied, or grouted to the surface of a concrete, rock, steel, ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 250 mm
Operating Temperature Range: -40-80deg C
Strain Limits: -5,000-5,000με
Data Sheet
Inquire Price
Embedded FBG strain sensor ES-01&EST;-01
AtGrating Technologies Co, Ltd.
Add to watch list
Embedded FBG strain sensor ES-01&EST;-01
Compare
Embedded FBG strain sensor ES-01&EST-01 is specially used for the internal strain measurement of concrete, reinforced concrete or plastic materials, so as to observe the change of internal stress of the structure for a long time, conduct state analysis, and achieve the purpose of warning and object health status diagnosis. The ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 50 mm
Operating Temperature Range: -20-80deg C
Strain Limits: -1500-1500με
Center Wavelength: 1460 ~ 1610 nm
Data Sheet
Inquire Price
Surface Mounted FBG Strain Gauge MST-01
AtGrating Technologies Co, Ltd.
Add to watch list
Surface Mounted FBG Strain Gauge MST-01
Compare
Surface mounted FBG strain sensor MS-01/MST-01 can meet the strain measurement needs of various occasions, and can be installed in different monitoring positions such as concrete surfaces or steel surfaces. Mainly used to measure the strain of steel structures and concrete surfaces. The external strain transmits the strain to ...

Specifications
Strain Sensitivity: 1.2 pm/με
Gage Length: 71 mm
Operating Temperature Range: -20-80deg C
Strain Limits: -1500-1500με
Center Wavelength: 1460 ~ 1610 nm
Data Sheet
Inquire Price
Strain Gauge SG-01
FBGS International NV
Add to watch list
Strain Gauge SG-01
Compare
The Strain Gage SG-01 is the fiber optic equivalent of an electrical strain gage. The Strain Gage SG-01 can be mounted directly on the surface of a structure by means of an adhesive. In this way, the fiber sensor makes direct contact with the surface and therefore accurately measures the strain at the surface. Supply of the strain ...

Specifications
Strain Sensitivity: - pm/με
Gage Length: 8 mm
Operating Temperature Range: -50-130deg C
Strain Limits: -5000-5000με
Data Sheet
Inquire Price
Strain Gauge Chain SGC-01
FBGS International NV
Add to watch list
Strain Gauge Chain SGC-01
Compare
The Strain Gauge Chain SGC-01 is the fiber optic equivalent of several electrical strain gauges, as the chain can be configured to customer needs. In this way an entire strain distribution can be monitored using just one fiber. The Strain Gauge Chain SGC-01 is a spliceless chain of several fiber optic Strain Gauges in series. These ...

Specifications
Strain Sensitivity: - pm/με
Gage Length: 8 mm
Operating Temperature Range: -50-130deg C
Strain Limits: -5000-5000με
Data Sheet
Inquire Price
Strain Gauge Installation Kit SGK-01
FBGS International NV
Add to watch list
Strain Gauge Installation Kit SGK-01
Compare
The Strain Gauge Kit is designed for use on-site or in the lab and contains all the parts required to install fiber optic strain gauges. Includes materials for preparation of the measurement point, the strain gauges themselves, application tools & accessories, as well as means to clean, protect and compensate the applied gauges ...

Specifications
Strain Sensitivity: - pm/με
Gage Length: - mm
Operating Temperature Range: -45-90deg C
Strain Limits: -5000-5000με
Data Sheet
Inquire Price

Frequently Asked Questions

A strain gauge is a sensor that measures the deformation or strain of an object due to an applied force or stress. The gauge works by measuring the change in electrical resistance of a thin metallic wire or foil bonded to the surface of the object being measured.

There are several types of strain gauges, including foil strain gauges, semiconductor strain gauges, and thin-film strain gauges.

Strain gauges are commonly used in the field of mechanical engineering to measure the stress and strain on a wide range of materials and structures, including bridges, aircraft, pipelines, and machinery. They are also used in biomedical research, materials science, and other fields to measure the deformation of various objects and materials.

The accuracy of a strain gauge depends on several factors, including the quality of the gauge, the sensitivity of the instrument, and the level of environmental control during the measurement. Generally, strain gauges can provide accurate measurements within a few percentage points.

When choosing a strain gauge, it's important to consider the specific requirements of your measurement, including the expected range of strain, the type of material being measured, and the environmental conditions of the measurement. Other considerations may include the size and shape of the object, the level of accuracy required, and the type of instrumentation and software needed for data analysis.

Installing a strain gauge requires carefully bonding the gauge to the surface of the object being measured and connecting it to a sensitive instrument or data acquisition system. Proper installation techniques are critical for obtaining accurate and reliable measurements.

There are 12 different Strain Gages from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Strain Gages with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Strain Gages vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.
