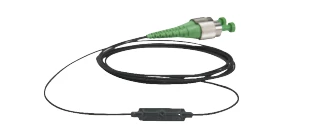

os3200 Non-Metallic Optical Strain Gage
Description
The os3200 is based on fiber Bragg grating (FBG) technology. It has a self adhesive backing that holds the sensor body in place and protects the FBG while epoxy is injected. The epoxy encapsulates the FBG and bonds it to a structure’s surface. Installation time is just a few minutes. Measurements can be taken after the epoxy cures in 24 hours at room temperature.
In side by side comparisons with foil strain gages, the os3200 is equally sensitive and accurate, while providing for greater strain range and 100 times more fatigue life. The os3200 strain gage is qualified for use in mild environments and delivers the many advantages inherent to all FBG based sensors.
This sensor can be used alone or in series as a part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. Multiple optical strain gages can be arranged in close proximity at 0, 45 and 90 degrees for strain rosette measurements. With each sensor, Luna provides a Sensor Information Sheet listing the gage factor and calibration coefficients needed to convert wavelength information into engineering units. Luna's ENLIGHT Sensing Software provides a utility to calculate and then record, display, and transmit data for large networks of sensors.
os3200 Non-Metallic Optical Strain Gage
Specifications |
|
|---|---|
| Strain Sensitivity: | 1.2 pm/με |
| Gage Length: | 10 mm |
| Operating Temperature Range: | -40-80deg C |
| Strain Limits: | -5,000-5,000με |
Features
- Rugged, permanent weldable package.
- Armored cable integrated with sensor package for fiber protection and strain relief.
- Fast, simple, repeatable installation
- Double ended design supports multiplexing of many sensors on one fiber.
- Qualified to same rigorous standards used for comparable electronic gages.
- Gage installation and protection achieved with same methods as conventional electronic gages.
- Luna's patented micro opto-mechanical technology.
- Included in ENLIGHT’s sensor templates – allows for quick and easy optical to mechanical conversions.
Applications
- Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
- Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
- Transportation (railways, trains, roadways, specialty vehicles, cranes)
- Marine vessels (hull, deck, cargo containers)
- Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests).
- Homeland security (perimeter intrusion, heat detection, security gate monitoring)
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The os3200 is suitable for use in structures (bridges, dams, tunnels, mines, buildings, oil platforms), energy (wind turbines, oil wells, pipelines, nuclear reactors, generators), transportation (railways, trains, roadways, specialty vehicles, cranes), marine vessels (hull, deck, cargo containers), aerospace (airframes, composite structures, wind tunnels, static and dynamic tests), and homeland security (perimeter intrusion, heat detection, security gate monitoring).
In side by side comparisons with foil strain gages, the os3200 is equally sensitive and accurate, while providing for greater strain range and 100 times more fatigue life. This sensor can be used alone or in series as a part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks.
With each sensor, Micron Optics provides a Sensor Information Sheet listing the gage factor and calibration coefficients needed to convert wavelength information into engineering units. Micron Optics’ ENLIGHT Sensing Software provides a utility to calculate and then record, display, and transmit data for large networks of sensors.
The os3200 has a self-adhesive backing that holds the sensor body in place and protects the FBG while epoxy is injected. The epoxy encapsulates the FBG and bonds it to a structure’s surface. Installation time is just a few minutes. Measurements can be taken after the epoxy cures in 24 hours at room temperature.
The os3200 is a small, non-metallic optical, epoxy-mounted strain gage based on fiber Bragg grating (FBG) technology.
