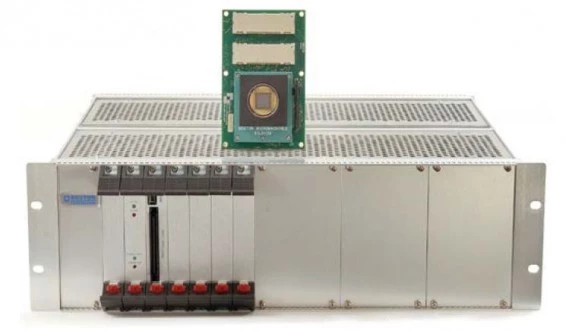

Deformable Mirror Kilo-1.5
Description
Deformable Mirror Kilo-1.5
Specifications |
|
|---|---|
| Number Of Actuators: | 952 |
| Wavefront Tip-Tilt Stroke (PtV): | 1.5 um |
| Actuator Pitch: | 300 um |
| Pupil Size (Clear Aperture): | 9.9 mm |
| Surface Quality (RMS): | 30 nm |
| Mechanical Response (10%-90%): | 22 us |
| Reflective Coating Material: | Gold, Aluminum, Protected Silver |
Features
MEMS deformable mirrors are currently the most commonly used architecture in many adaptive optics applications given their versatility, maturity of technology, and high resolution wavefront correction capabilities. Using advanced, inexpensive manufacturing technology, MEMS DMs’ performance strengths are inherent to micromachining:
1. Large actuator arrays create high resolution wavefront correction.
2. Advanced microstructures allow minimal influence between adjacent actuators for high spatial frequency surfaces
3. Optimized design enables rapid wavefront shaping for high speed applications.
Applications
- Imaging
- Microscopy
- Astronomy
- Laser Optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Frequently Asked Questions
The Kilo-DM deformable mirror is used for demanding applications in astronomy, laser communications, and imaging through scattering media.
MEMS deformable mirrors have large actuator arrays that create high resolution wavefront correction, advanced microstructures that allow minimal influence between adjacent actuators for high spatial frequency surfaces, and an optimized design that enables rapid wavefront shaping for high speed applications.
The Kilo-DM has 952 actuators while the 492-DM has 492 actuators. The Kilo-DM is used for demanding applications in astronomy, laser communications, and imaging through scattering media, while the 492-DM is used for astronomy and imaging applications.
The stroke of the DM specifications is 1.5 μm or 3.5 μm.
The maximum frame rate of the driver specifications is 34 kHz / 60 kHz (Low Latency).
