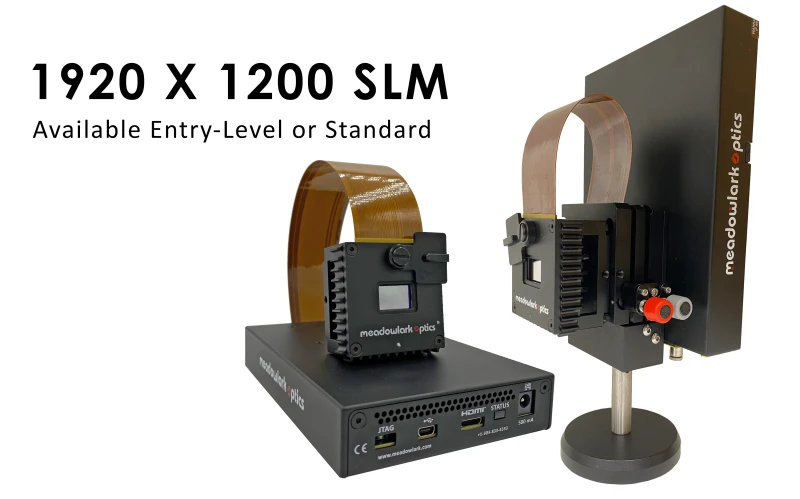

Meadowlark Optics E19X12 (1920 x 1200) Spatial Light Modulator (SLM)
Description

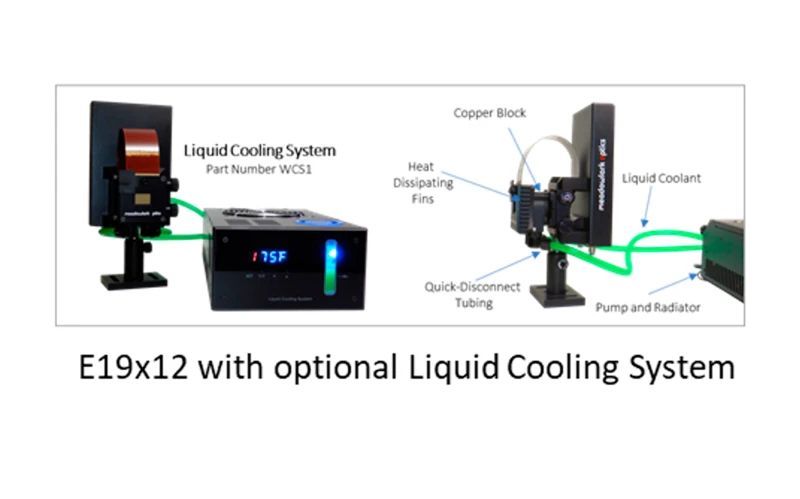

Meadowlark Optics is pleased to introduce our latest 1920 x 1200 Spatial Light Modulator (SLM) options. Don’t let the “E-Series” name fool you; with improved specifications over our previous model, it is anything but entry-level. It is, however, economical and ideally suited for educational labs with a limited budget. The new standard “S-Series” offers key features not previously available, including 10-bit operation, customizable dielectric mirror coatings for improved efficiency, and liquid cooling for high-power applications.
Meadowlark Optics E19X12 (1920 x 1200) Spatial Light Modulator (SLM)
Specifications |
|
|---|---|
| Type: | Liquid Crystal on Silicon (LCoS) |
| Pixel Pitch: | 5-10 µm |
| Modulation Type: | Phase |
| Wavelength Range: | Visible (400-700 nm), Near-IR (700-1400 nm), IR (>1400 nm) |
| Response Time: | >10 ms |
| Refresh Rate: | <1 kHz |
| Phase Stability: | <0.1%, 0.1%-0.5% |
| Diffraction Efficiency: | 50%-90% |
| Interface: | HDMI |
| Input Signal: | Analog |
| Power Handling: | <0.5 W, 1-3 W |
| Pixel Pitch: | 17 um |
| Backplane Refresh: | 1.35 kHz |
| Pixels: | 1920 x 1200 Pixels |
| Phase Resolution (Bit-Depth): | 8 bits |
Features
- Entry-Level
- 1920 x 1200 Resolution
- Pure Analog Phase Control
- High Phase Stability – as low as 0.025%

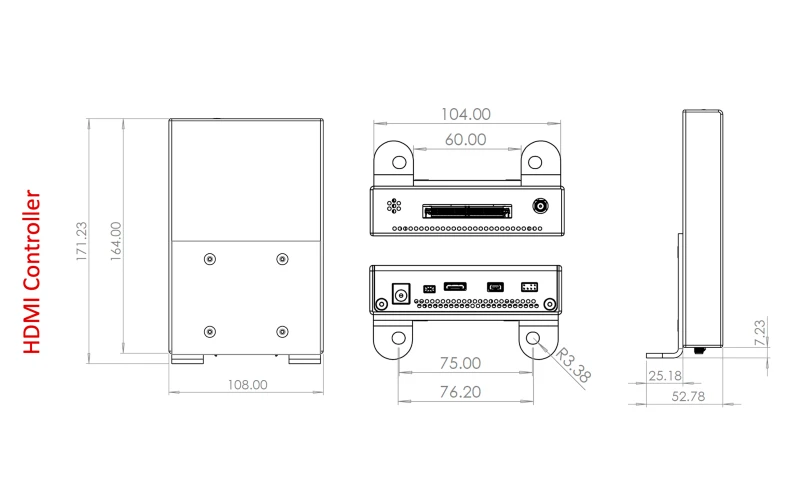

- 60 Hz HDMI Controller with Output Trigger
Applications
- Wavefront Engineering
- Holographic Two-Photon Lithography
- Multimode Fiber Imaging
- Holographic Ensemble Stimulation
- Sensorless Adaptive Optics
- 3D Structured Illumination Microscopy
- Imaging In Scattering or Turbid Media
- Volumetric Imaging
- Optogenetics
- Fiber-Based Optical Manipulation
- Psf Engineering
- General Microscopy
- Holographic Optical Tweezing (Hot)
- Pulse Shaping
- Optical Encryption
- Quantum Computing
- Advanced Imaging
- Optical Communications
- Quantum Optics
- Tamper Indication
- 3D Printing
- Turbulence Simulation
- Unique Modulators
- Scene Generation
- 3D Mapping of Neural Circuits
