PRIME Beamshaper PP-PRIME-CI-D10-V1
Description
PowerPhotonic’s Psuedo Random Intensity Mapping Element (PRIME) beamshapers use a unique freeform direct-write process to fabricate a highly non-uniform surface in fused silica.
These quasi-random optics are designed to impart a well-defined and tightly controlled divergence angle which can range from fractions of a degree up to 10 degrees (FWHM) with potential transmission efficiencies in excess of 99%.

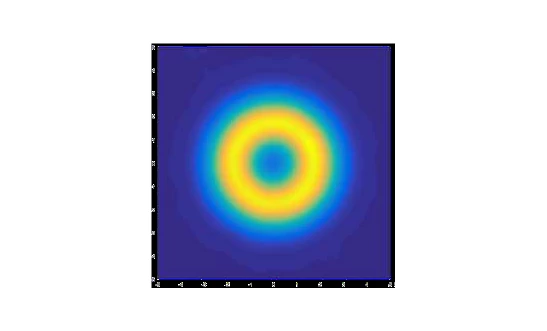

The PRIME beamshapers can be used to create highly arbitrary intensity distributions specific to an application, while remaining highly insensitive to beam alignment and input distribution. Examples include of intensity distributions include annuli, tridents, ramps, skewed Gaussians and more.
Key Features
- All fused silica optics
- Customizable divergence (<1° to 10°)
- Customizable intensity and spatial distributions
- Highly variable edge steepness
- Very low divergences achievable
- Suitable for multi-mode lasers (M2 >5)
Key Benefits
- Highest system efficiency possible >98%
- Dramatic increase in beam uniformity
- High power handling, >20kW CW
- High laser damage threshold, >100J/cm2
- No focal plane shift
- Good through-focus performance
- Insensitive to input beam properties
PRIME Beamshaper PP-PRIME-CI-D10-V1
Specifications |
|
|---|---|
| Divergence Angle (FWHM): | 1.00 deg |
| Image Shape: | Circular, Square, Annular, Custom |
| Clear Aperture (H): | 15.0 mm |
| Clear Aperture (W): | 15.0 mm |
| Height: | 25.40 mm |
| Width: | 25.40 mm |
| Thickness: | 1.00 mm |
Features
- Clear Aperture Width and Height
- Substrate Width, Height and Thickness
- Divergence Angle
Applications
- Materials processing: high power
o Regime switch (thin thick) laser cutting
o Laser peening and slow cool annealing
o Welding, brazing and cladding
o Metal polishing - Pump beam homogenization
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The key benefits of using the PRIME Beamshaper include highest system efficiency possible (>98%), dramatic increase in beam uniformity, high power handling (>20kW CW), high laser damage threshold (>100J/cm2), no focal plane shift, good through-focus performance, and insensitivity to input beam properties.
The target applications for the PRIME Beamshaper include materials processing such as high power regime switch (thin-thick) laser cutting, laser peening and slow cool annealing, welding, brazing and cladding, metal polishing, and pump beam homogenization.
The PRIME Beamshaper is a laser instrument that uses a unique freeform direct-write process to fabricate a highly non-uniform surface in fused silica to create highly arbitrary intensity distributions specific to an application.
Yes, the PRIME Beamshaper specifications can be customized including the divergence angle, intensity and spatial distributions, edge steepness, and shape.
The divergence angle range of the PRIME Beamshaper can range from fractions of a degree up to 10 degrees (FWHM) and is customizable.
