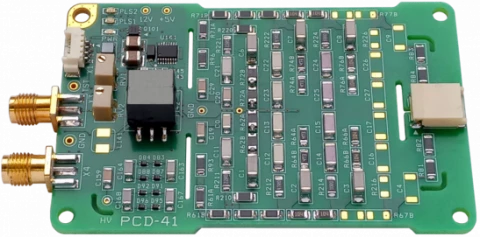

High-Voltage Pockels Cell Driver PCD-41D
Description
Generation of a two-step high-voltage pulse with nanosecond rising edges. First step duration of the output high- voltage pulse is determined by trigger pulse duration. Second step amplitude of the output HV pulse is equal to the double voltage of first step.
Driver can be used for ultrafast optical beam modulation and deflection, control of laser regenerative amplifiers and pulse pickers.

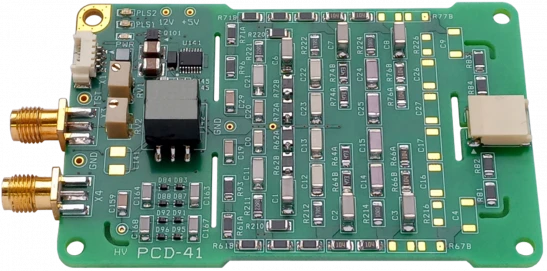

High-Voltage Pockels Cell Driver PCD-41D
Features
DISTINCTIVE FEATURES
- Two-step high voltage pulse;
- Nanosecond rising edges;
- Controlled pulse duration;
- Pulse jitter is less than 200 psec;
- Built-in pulsed high voltage source;
- Low voltage power supply 12 V;
- Trigger pulse 5 V, impedance 50 Ohm;
- Pulse repetition rate up to 2000 Hz.
- Pulse amplitude adjustment by trimmer or external analog signal;
- Additional output signal for HV pulse amplitude measurement;
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
VIGITEK, INC. -
On FindLight:
since 2022
