ORAFOL Fresnel Beamsplitter PR 765
Description
The Fresnel Beamsplitter PR 765 from ORAFOL Fresnel Optics GmbH is a precision optical component designed for applications that require the division of an incoming light beam into two distinct paths. Utilizing advanced Fresnel lens technology, the PR 765 achieves efficient light transmission and minimal reflection losses, making it suitable for a wide range of optical systems, including imaging, laser setups, and optical communication.
Its lightweight, compact design is optimized for high-performance environments where space and efficiency are critical. Made from durable, high-quality optical polymer materials, this beamsplitter offers reliable operation over extended periods, even in challenging environmental conditions.
With customizable wavelength ranges and sizes available, the PR 765 can be tailored to meet specific application needs. Whether used in research laboratories, advanced manufacturing, or precision measurement systems, this beamsplitter delivers high transmission efficiency, stable performance, and long-lasting durability. Designed to meet the highest standards of optical quality, the PR 765 ensures accurate light control and optimized system performance, making it an essential component for modern optical setups.
ORAFOL Fresnel Beamsplitter PR 765
Specifications |
|
|---|---|

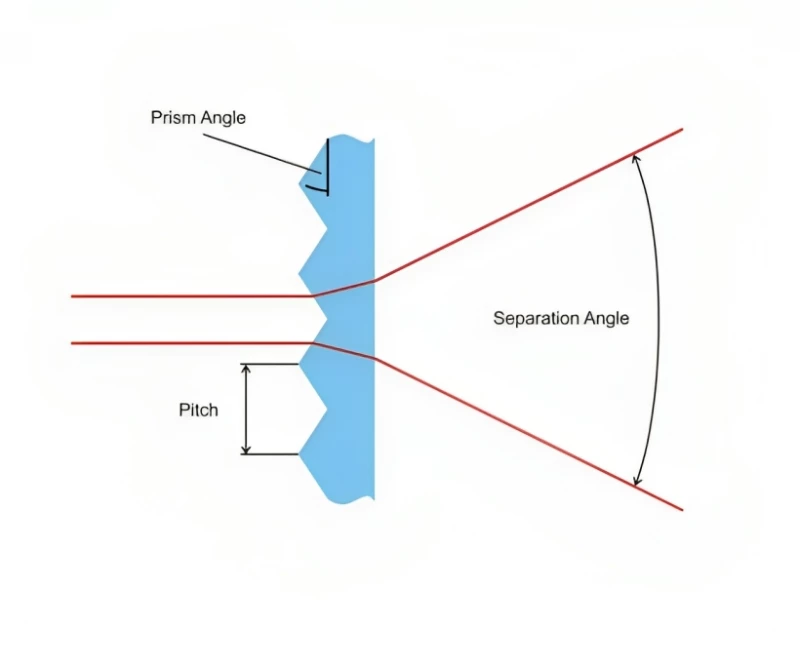

| Prism Angle: | 30 deg |

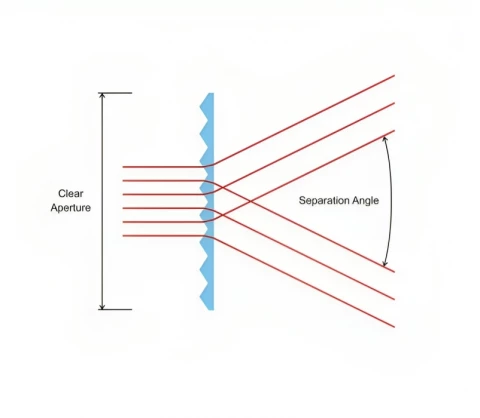

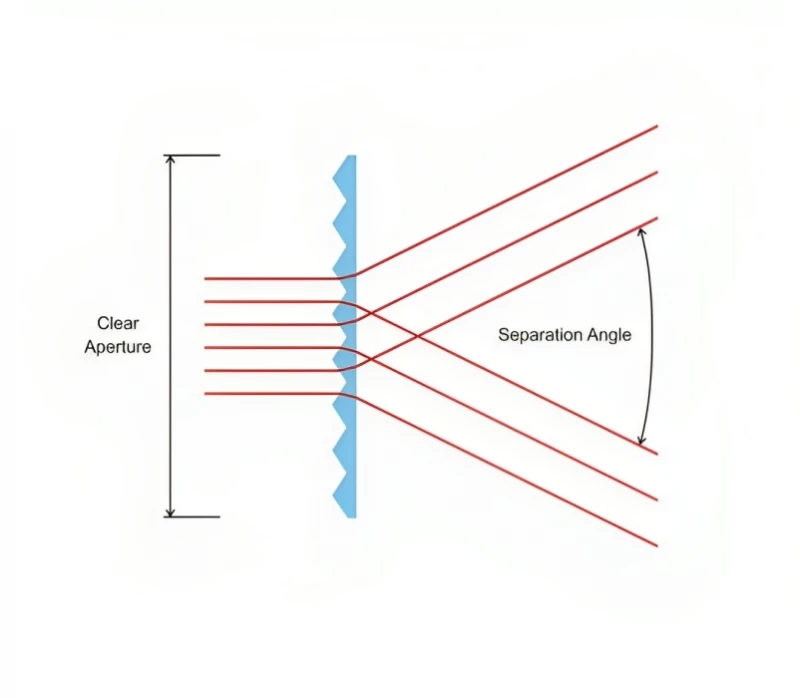

| Separation Angle: | 32 deg |
| Facet Spacing: | 2.000 mm |
| Clear Aperture (X): | 164.9 mm |
| Clear Aperture (Y): | 164.7 mm |
| Prism Length: | 164.9 mm |
| Thickness: | 1.8 mm |
Features
- Innovative Fresnel Beam Splitter Design
- Linear Structure with Opposite Angles
- Two Effective Flanks for Optimal Beam Division
- Enables Controlled Division Angle
- Lightweight and Space-Efficient Construction
Applications
- Optical Systems in Imaging and Projection
- Laser Systems and Research Applications
- Photonic Devices
- Light Measurement Instruments
- Scientific and Industrial Optics
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
It is designed for splitting light beams in various optical applications, including imaging and measurement systems.
The PR 765 supports a wide range of wavelengths, typically from UV to IR, depending on the application requirements.
Yes, the Fresnel Beamsplitter PR 765 can be tailored in terms of size, wavelength range, and other specifications.
The beamsplitter offers a high transmission efficiency of up to 95%, ensuring minimal loss of light during operation.
It is constructed from precision-molded optical-grade polymers, ensuring durability and clarity.
Yes, it is designed to handle moderate to high-power light sources without degradation.
It is commonly used in imaging systems, optical testing, metrology, and laser systems.
The beamsplitter is designed to maintain performance across a wide range of temperatures and humidity levels.
Standard and custom sizes are available, with dimensions ranging from a few millimeters to several centimeters.
The PR 765 utilizes Fresnel technology, making it more compact and efficient than conventional beamsplitters while maintaining high optical quality.
