VUV-UV Laser Beamsplitter 353nm | 30% Transmission: M353-P3045
Description

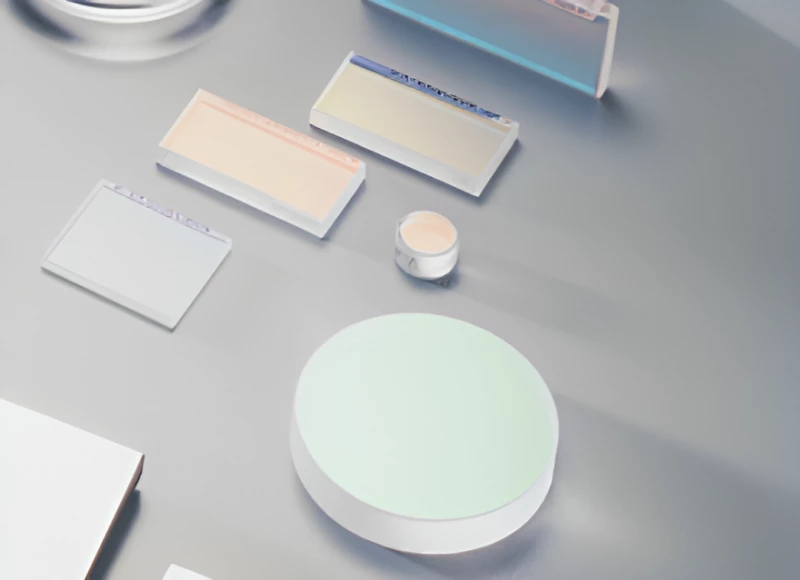

Acton Optics presents VUV/UV Laser Beamsplitters featuring multilayer, dielectric, low-absorption coatings tailored for laser output couplers and beam-splitting applications.
These beamsplitters cover a broad wavelength range from 126 nm to 353 nm, calibrated precisely for reflectance and transmittance at specified laser wavelengths and angles of incidence, ensuring exceptional performance in high-power laser applications.
Standard beamsplitters are optimized for random polarization, but Acton Optics can customize designs for horizontal "P" polarization or vertical "S" polarization upon request. Anti-reflection coatings for rear surfaces are available, and coatings can be applied to Acton's standard substrates, custom substrates, and customer-supplied materials (CSM).
VUV-UV Laser Beamsplitter 353nm | 30% Transmission: M353-P3045
Specifications |
|
|---|---|
| Largest Dimension: | 25.4 mm |
| Thickness: | -- mm |
| Substrate: | UV Fused Silica |
| Wavelength Range: | 353-353nm |
| Angle Of Incidence (AOI): | 45° |
| Transmission: | 30% +/-5% |
Features
- Broad Wavelength Range: Covering 126 nm to 353 nm for diverse laser applications
- Precision Calibration: Reflectance and transmittance calibrated for specified wavelengths and angles of incidence
- Customizable Polarization: Designs optimized for random, horizontal "P," or vertical "S" polarization
- Anti-Reflection Coatings: Available for rear surfaces for enhanced performance
- Flexible Substrates: Coatings applicable to Acton's standard substrates, custom substrates, and customer-supplied materials
Applications
- Laser Output Couplers
- Beam-Splitting Applications in High-Power Laser Systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2021
