Er Glass Laser Crystals

Er^3+,Yb^3+:Phosphate glass bonded Co:Spinel monoblocks for monolithic laser cavity of mLRF transmitters
DIGCO® Inc.
Add to watch list
Er^3+,Yb^3+:Phosphate glass bonded Co:Spinel monoblocks for monolithic laser cavity of mLRF transmitters
Compare
There are two typical types of Er:Glass lasers, one is using laser rod as working medium, another is using bonded Er:Glass to get gain medium, Q-switch and output coupler as a whole, which present advantages of easy fixing and stable construction.    There are three types of Er:Glass modules available specified as: 0-10Hz ...

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 3-12.7 mm
Crystal Length: 3-150 mm
AR Coating: Both sides
Gain Media: Er3+, Yb3+:Phosphate glass
Data Sheet
Inquire Price
Er^3+,Yb^3+,Cr^3+:Phosphate glass cylinderical/square rods for Xenon tube pumped laser transmitters of LRFs or 1540 non-ablative fractional aesthetic cosmetics laser hand pieces
DIGCO® Inc.
Add to watch list
Er^3+,Yb^3+,Cr^3+:Phosphate glass cylinderical/square rods for Xenon tube pumped laser transmitters of LRFs or 1540 non-ablative fractional aesthetic cosmetics laser hand pieces
Compare
Er, Cr,Yb phosphate glass is the raw material for making  the  solid gain medium crystal for flash lamp pumped lasers, the erbium-doped concentration is 0.13～0.25×1020cm-3, and the light output energy is from millijoule to joule level.    Erbium Glass doped with Er3+, Yb3+ and Cr3+, Erbium doped glass ...

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 3-12.7 mm
Crystal Length: 3-150 mm
AR Coating: Both sides
Wavelength: 1535 nm
Data Sheet
Inquire Price
Er^3+,Yb^3+:Phosphate glass cylinderical or square rods and zigzag slabs for diode side pumped laser transmitters with mJ pulse energy output
DIGCO® Inc.
Add to watch list
Er^3+,Yb^3+:Phosphate glass cylinderical or square rods and zigzag slabs for diode side pumped laser transmitters with mJ pulse energy output
Compare
The erbium doped concentration of the LD pumped laser glass is 0.25～1.3, and the light output energy ranges from microjoule to millijoule.     Er, Yb co-doped phosphate glass, with wider wavelength tuning, lower RIN and narrower laser linewidth, higher conversion efficiency and very wide pump band. It is used to make ...

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 3-12.7 mm
Crystal Length: 140 mm
AR Coating: Both sides
Wavelength: 1535 nm
Data Sheet
Inquire Price
Cylindrical Er^3+:Yb^3+:Phosphate glass core rods as well as cladding rods for photonics crystal fiber(PCF) preforms fabrication by rod-in-tube techniques
DIGCO® Inc.
Add to watch list
Cylindrical Er^3+:Yb^3+:Phosphate glass core rods as well as cladding rods for photonics crystal fiber(PCF) preforms fabrication by rod-in-tube techniques
Compare
Er:Yb:Phosphate glass is an ideal material for eye-safe laser application because of 1535nm emission, it can be fabricated as optical fiber core for special applications.

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 2-4 mm
Crystal Length: 50-150 mm
AR Coating: Uncoated
Host: Phosphate glass
Data Sheet
Inquire Price
1535nm DBC crystals
Lasertec Inc
Add to watch list
1535nm DBC crystals
Compare
Er, Yb:glass+Co: spinel bonding crystal is a bonding crystal formed by bonding co: spinel at the end of Er, Yb: glass. It can effectively improve the comprehensive performance of Er, Yb: glass laser. We design a special structure to reduce the thermal effect to meet high energy density lasers.

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 10 mm
Crystal Length: 10 mm
Data Sheet
Inquire Price
Erbium Laser Glass by HG Optronics
HG Optronics, Inc.
Add to watch list
Erbium Laser Glass by HG Optronics
Compare
Er3+/Yb3+ co-doped phosphate glass — as the 1540nm eye-safe radiation sources pumped by LD which can emit eye-safe 1540nm laser radiation directly used in laser ranging finder and telecommunication communication.

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: N/A mm
Crystal Length: N/A mm
AR Coating: One side, Both sides, Uncoated
Cross Section For Stimulated Emission (10-20cm2): 0.8
Data Sheet
Inquire Price

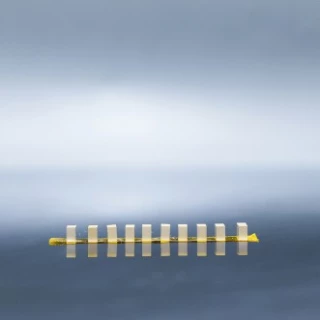

Er, Yb:Phosphate glass EAT14
Nanjing Metalaser Photonics Co.,Ltd.
Add to watch list
Er, Yb:Phosphate glass EAT14
Compare
Er3+/Yb3+ co-doped phosphate glass — as the 1540nm eye-safe radiation sources pumped by LD which can emit eye-safe 1540nm laser radiation directly used in laser ranging finder and telecommunication communication. Er3+ emission transition occurs within this wavelength range corresponding to the 4I13/2 →4I15/2 . However, Er3+ ...

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 2*2 mm
Crystal Length: 2.5 mm
AR Coating: Both sides
Thickness/Diameter Tolerance: ±0.05 mm
Data Sheet
Inquire Price
Er Glass - Er Cr Yb:Glass
Nanjing Metalaser Photonics Co.,Ltd
Add to watch list
Er Glass - Er Cr Yb:Glass
Compare
Erbium Glass doped with Er3+, Yb3+ and Cr3+, Erbium doped glass laser provides a useful coherent source in the spectral range near 1.5 μm, which is relatively safe for the human eye and is convenient in many applications, such as lidar and range measurements, fiber-optic communication, and laser surgery. In spite of the ...

Specifications
Type Of Crystal: Er Glass
Crystal Diameter: 3 mm
Crystal Length: 30 mm
AR Coating: One side
Refractive Index (d 589.3nm): 1.539 1.541
Data Sheet
Inquire Price
On FindLight marketplace you will find 8 different Er Glass Laser Crystals from suppliers around the world. With just a few clicks you can compare different Er Glass Laser Crystals and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
