Er:YAG Laser Crystals

50 at% Er^3+:YAG Laser rods for Medical Devices of Skin Treatment, Dental Surgery and Blood Sampling
DIGCO® Inc.
Add to watch list
50 at% Er^3+:YAG Laser rods for Medical Devices of Skin Treatment, Dental Surgery and Blood Sampling
Compare
Lasers powered by Er:YAG (erbium substituted: yttrium aluminium garnet), operating at 2.94 microns, crystals couple well into water and body fluids. The output of Er:YAG laser rod working as active element in special devices enables the painless monitoring of blood sugar levels for diabetic people, while safely reducing the risk for ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 2-50 mm
Crystal Length: 5-180 mm
AR Coating: Both sides
Chemical Formula, Crystal: Activator: Y3Al5O12:Er^3+
Data Sheet
Inquire Price
Custom Er:YAG Laser Crystals with Excellent Optical Quality by VoyaWave Optics
Voyawave Optics Ltd.
Add to watch list
Custom Er:YAG Laser Crystals with Excellent Optical Quality by VoyaWave Optics
Compare
The Er:YAG laser crystal, provided by VoyaWave Optics Ltd., is an advanced and highly efficient solution for medical and dental applications. The crystal lasers at a specific wavelength of 2940 nm, which coincides with the hydroxyl absorption peak, making it perfect for interaction with biological tissues. With exceptional optical ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 3-4 mm
Crystal Length: 53/65 mm
AR Coating: Both sides
Size Tolerance: Diameter: +0.000 inches
Data Sheet
Inquire Price
Er YAG Laser Crystal - NANJING CRYLINK
Nanjing Crylink Photonics Co., Ltd
Add to watch list
Er YAG Laser Crystal - NANJING CRYLINK
Compare
Er: YAG, Erbium-doped Yttrium Aluminum Garnet (Er: Y3Al5O12 or Er: YAG), combine various output wavelengths with Er: YAG’s superior thermal and optical properties. It is an excellent laser crystal that lasers at 2.94μm.    This wavelength is the most readily absorbed into water and hydroxyapatite of all existing ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 2~50 mm
Crystal Length: 5~180 mm
AR Coating: One side, Both sides, Uncoated
Orientation: [100] or [100] <± 0.5
Data Sheet
Inquire Price
Er:YAG Laser Crystals-Team SZLaser
SZLASER
Add to watch list
Er:YAG Laser Crystals-Team SZLaser
Compare
Er:YAG(Erbium-doped Yttrium Aluminium Garnet ) is an excellent laser crystal of 2.94μm. Its widely applied in medical laser systems of laser surgery, dental, otolaryngology, and Laser cosmetology etc. Call Us via +86-755-8378 2881  |  Email us sales@szlaser.com  | www.szlaser.com

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 2~10mm mm
Crystal Length: 30~160mm mm
AR Coating: One side, Both sides, Uncoated
Concentration: Er 20at% Er 50at%
Data Sheet
Inquire Price
Laser Materials Er:YAG
Scientific Materials Corp
Add to watch list
Laser Materials Er:YAG
Compare
Highly doped (50%) Erbium YAG is a well-known laser source for producing 2940nm emission, commonly used in medical [1] (e.g. cosmetic skin resurfacing), and dental [2] (e.g. oral surgery) applications due to the strong water and hydroxapatite absorption at this wavelength. Low doped (< 1%) Erbium YAG hase been studied as an ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: -- mm
Crystal Length: -- mm
AR Coating: Uncoated
Data Sheet
Inquire Price
Er:YAG Laser Crystals
Hangzhou Shalom EO
Add to watch list
Er:YAG Laser Crystals
Compare
Erbium-doped yttrium aluminum garnet or Er:YAG crystals is an excellent laser crystal which lasers at 2.94 μm, This wavelength is the most readily absorbed into water and hydroxylapatite of all existing wavelengths and is considered a highly surface cutting laser. The 2.94μm is a eye-safe wavelength, which makes Er:YAG ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 6 mm
Crystal Length: 120 mm
AR Coating: Both sides
Data Sheet
Inquire Price
Er:YAG Rods (2940 nm) by New Source Technology
New Source Technology LLC
Add to watch list
Er:YAG Rods (2940 nm) by New Source Technology
Compare
A wide pump band of 600 nm – 800 nm High optical quality Operate in a long-wavelength, high water peak region Rod Lengths: 3 mm – 152.4 mm Rod Diameters: 2 mm – 12.7 mm

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 12.7 mm
Crystal Length: 152.4 mm
AR Coating: One side, Both sides, Uncoated
Data Sheet
Inquire Price
Er:YAG rods by Crytur
Crytur Ltd.
Add to watch list
Er:YAG rods by Crytur
Compare
Er:YAG crystals with high doping concentration of Er3+ ions are typically used for lasing at 2936 nm. The main feature of this wavelength is high absorption in water and hydroxyapatite. Thus Er:YAG crystals are mostly applicable for construction of the dental surgery and aesthetic surgery lasers. Low-doped Er:YAG laser crystals ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 5 mm
Crystal Length: 120 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Nd:YAG rods by Crytur
Crytur Ltd.
Add to watch list
Nd:YAG rods by Crytur
Compare
CRYTUR grows neodymium doped yttrium aluminium garnet (Nd:YAG) crystals using the Czochralski growth method. A special protective atmosphere applied during crystal growth and post growth annealing result in a very good lasing efficiency of our crystals. Our production line covers crystal growth, machining and coating technologies.

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 12 mm
Crystal Length: 160 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Er:YAG Crystals by Cryslaser
Cryslaser Inc.
Add to watch list
Er:YAG Crystals by Cryslaser
Compare
Er:YAG combine various output wavelength with the superior thermal and optical properties of YAG. It’s an excellent laser crystal which lasers at 2.94um highly surface cutting laser. It is a well known material for medical applications.

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 50 mm
Crystal Length: 180 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
ER:YAG BY DeLn OPTICS
Changchun DeLn Optics Technology Co. Ltd.
Add to watch list
ER:YAG BY DeLn OPTICS
Compare
Er:YAG is an excellent laser crystal which lases at 2.94μm, This wavelength is the most readily absorbed into water and hydroxyapatite of all existing wavelengths and is considered a highly surface cutting laser. It has wide applications in medical applications, such as dental (hard tissues), orthopedics, etc.

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: N/A mm
Crystal Length: N/A mm
AR Coating: Uncoated
Data Sheet
Inquire Price
Er:YAG Laser Crystal by JIEPU TREND
Beijing Jiepu Trend Technology Co. Ltd.
Add to watch list
Er:YAG Laser Crystal by JIEPU TREND
Compare
Er:YAG crystal is an excellent laser crystal which lasers at 2.94μm. This wavelength is the most readily absorbed into water and hydroxylapatite of all existing wavelengths and is considered a highly surface cutting laser. It is a well known material for medical applications.

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: N/A mm
Crystal Length: N/A mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Nd:Ce:YAG, Yb:YAG, Er:YAG, Cr:Tm:Ho:YAG crystals by CASTON
Caston Inc.
Add to watch list
Nd:Ce:YAG, Yb:YAG, Er:YAG, Cr:Tm:Ho:YAG crystals by CASTON
Compare
CASTON supplies Nd:Ce:YAG (1.064μm), Yb:YAG (1.03μm), Er:YAG (2.94μm), Cr:Tm:Ho:YAG (CTH:YAG, 2.1μm), which extend the limits of the usages of YAG crystals. Nd:Ce:YAG has appreciably less thermal distortion and its output laser energy is obviously greater (>30%) than that in Nd:YAG at the same pumping level. Lasing at 1.03μm, ...

Specifications
Type Of Crystal: Nd:Ce:YAG, Yb:YAG, Er:YAG, Ho:Cr:Tm:YAG
Crystal Diameter: Custom mm
Crystal Length: Custom mm
AR Coating: Uncoated
Data Sheet
Inquire Price
Yb:YAG Laser Crystal
Nanjing Metalaser Photonics Co.,Ltd
Add to watch list
Yb:YAG Laser Crystal
Compare

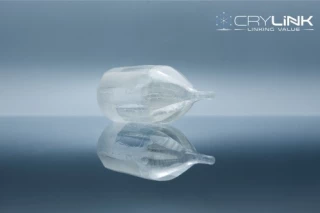

Yb: YAG is a laser crystal which is doped with trivalent ytterbium ions in yttrium aluminum garnet crystal and can emits 1030 nm near-infrared laser. Yb: YAG crystal has characters of high quantum efficiency, no excited state absorption and up-conversion, high concentration tolerance, long fluorescence lifetime, wide absorption band ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 1.5 mm
Crystal Length: 10 mm
AR Coating: One side
Materials: Yb:YAG
Data Sheet
Inquire Price
Yb:YAG Crytals
BoJen Optics, Inc.
Add to watch list
Yb:YAG Crytals
Compare

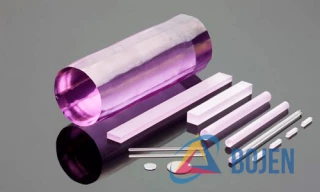

Ytterbium-doped YAG (Yb:YAG) is an active laser medium lasing at 1030 nm, with a broad, 18 nm wide absorption band at 940 nm. It is one of the most useful media for high-power diode-pumped solid state lasers. The dopant levels used range between 0.2% and 30% of replaced yttrium atoms. Yb:YAG has very low ...

Specifications
Type Of Crystal: Er:YAG
Crystal Diameter: 3 mm
Crystal Length: 50 mm
AR Coating: Both sides
Data Sheet
Inquire Price
On FindLight marketplace you will find 15 different Er:YAG Laser Crystals from suppliers around the world. With just a few clicks you can compare different Er:YAG Laser Crystals and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
