Yb:YAG Laser Crystals

TD12-7-HD Thin Disk Gain Medium - Yb:YAG
RPMC Lasers, Inc.
Add to watch list
TD12-7-HD Thin Disk Gain Medium - Yb:YAG
Compare
The Thin Disk Gain Medium, crafted by Dausinger + Giesen GmbH, represents a pinnacle in laser technology, specifically engineered for high-performance laser systems. Available in various configurations including TD12-7-HD, TD12-7+, TD20-7+, and TD25-7+, this gain medium utilizes Yb:YAG composition with a 7% doping concentration, ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 8 mm
Crystal Length: -- mm
AR Coating: Both sides
Thickness: 215 μm
Data Sheet
Inquire Price
Yb:YAG (custom service)
Voyawave Optics Ltd.
Add to watch list
Yb:YAG (custom service)
Compare
Yb:YAG crystal is a promising solid state laser working material, which is more suitable for diode pumping with traditional Nd doped crystal medium. Compared with Nd:YAG crystals, Yb:YAG crystals have wider absorption bandwidth, lower thermal control requirements in semiconductor laser design, longer laser upper level lifetime, and ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 5 mm
Crystal Length: 1-3 mm
AR Coating: Both sides
Laser Wavelength: 1030 nm
Data Sheet
Inquire Price
Ti:Sapphire Crystals
CRYSMIT OPTICS
Add to watch list
Ti:Sapphire Crystals
Compare
Titanium Doped Sapphire Crystal (Ti:Sapphire, Ti:Al2O3), is the most widely used laser crystal for widely tunable and ultrashort pulsed lasers with high gain and high power outputs.

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 3 mm
Crystal Length: 3 mm
AR Coating: Both sides
Data Sheet
Inquire Price
Yb:YAG Laser Crystals
FEE GmbH
Add to watch list
Yb:YAG Laser Crystals
Compare
Yb:YAG is the Laser crystal for high power lasers, especially when polished to thin disks. Available with concentrations up to 20 at% Yb. Laser rods with length up to 100 mm, diameter 1 to 10 mm (standard specifications) Thin discs with thickness < 150µm, diameter up to 50 mm Segmented crystals

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 10 mm
Crystal Length: 100 mm
AR Coating: One side, Both sides, Uncoated
Lattice Type: garnet, cubic
Data Sheet
Inquire Price
Yb YAG laser crystal NANJING CRYLINK
Nanjing Crylink Photonics Co., Ltd
Add to watch list
Yb YAG laser crystal NANJING CRYLINK
Compare
Yb YAG is a laser crystal doped with trivalent ions in yttrium aluminum garnet crystal, which can emit 1030 nm near-infrared laser. Yb YAG crystal has the characteristics of high quantum efficiency, no excited state absorption and up conversion, high concentration tolerance, long fluorescence lifetime, absorption bandwidth, wide ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 5*5 mm
Crystal Length: 1~10 mm
AR Coating: One side, Both sides, Uncoated
Yb Concentration Tolerance (atm%): 0.5, 1, 2, 3, 5, 7.5 , 10, 15, 20, 25%
Data Sheet
Inquire Price
Robust Laser Materials
Davis Marketing International LLC
Add to watch list
Robust Laser Materials
Compare
Davis Marketing International features YAG from Laser Materials Corporation, and VANADATE materials from the highest quality growers in the Pacific Rim. Among the customers/industries using our materials are universities doing applied research, medical device manufacturers, Industrial manufacturers and defense contractors building ...

Specifications
Type Of Crystal: Nd:YAG, Ti:Sapphire, Yb:YAG
Crystal Diameter: -- mm
Crystal Length: -- mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Yb:YAG Crystal by HG Optronics
HG Optronics, Inc.
Add to watch list
Yb:YAG Crystal by HG Optronics
Compare
It is more suitable for diode-pumping than the traditional Nd-doped systems. It can be pumped at 0.94 μm laser output. Compared with the commonly used Nd:YAG crystal, Yb:YAG crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-state lifetime, three to four times ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: N/A mm
Crystal Length: N/A mm
AR Coating: One side, Both sides, Uncoated
Doping(atm%):: 1.0% ~ 35%
Data Sheet
Inquire Price
Laser Materials Yb:YAG
Scientific Materials Corp
Add to watch list
Laser Materials Yb:YAG
Compare
Crystals doped with trivalent ytterbium (Yb3+) have demonstrated significant potential for application in compact, efficient, diode-pumped laser systems.[1-4] The Yb3+ ion has only two manifolds, the ground 2F7/2 and the excited 2F5/2 which are separated by approximately 10,000 cm-1. As a result, Yb3+doped materials have ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: -- mm
Crystal Length: -- mm
AR Coating: Uncoated
Data Sheet
Inquire Price
Yb:YAG rods by Crytur
Crytur Ltd.
Add to watch list
Yb:YAG rods by Crytur
Compare
The Yb3+ ion exhibits a small quantum defect and a quasi-three level system with a long upper laser level lifetime, which is important for energy accumulation in Q-switched lasers. The wide luminescence band of Yb3+ is advantageous for the generation of sub-picosecond pulses. Long energy storage lifetime, broad absorption ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 80 mm
Crystal Length: 100 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Yb:YAG Crystals by Cryslaser
Cryslaser Inc.
Add to watch list
Yb:YAG Crystals by Cryslaser
Compare
Yb:YAG is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd-doped systems. Compared with the company used Nd:YAG crystal, Yb:YAG crystal has a much larger absorption bandwidth to reduce thermal management requirements for diode lasers, a longer upper-laser level lifetime, ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 50 mm
Crystal Length: 180 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
YB:YAG BY DeLn OPTICS
Changchun DeLn Optics Technology Co. Ltd.
Add to watch list
YB:YAG BY DeLn OPTICS
Compare
Yb:YAG is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd-doped crystals. It can be pumped at 0.94 nm and generates 1.03 nm laser output. Compared with the commonly used Nd:YAG crystal, Yb:YAG crystal has a larger absorption bandwidth in order to reduce thermal management ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: N/A mm
Crystal Length: N/A mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Yb:YAG Laser Crystal by JIEPU TREND
Beijing Jiepu Trend Technology Co. Ltd.
Add to watch list
Yb:YAG Laser Crystal by JIEPU TREND
Compare
Yb:YAG crystal is one of the most promising laser-active materials and more suitable for diode-pumping than the traditional Nd-doped systems. It can be pumped at 0.94 μm and generate 1.03 μm laser output. Yb:YAG crystal at 1030nm is a good substitute for a Nd:YAG crystal at 1064nm and its second harmonic at 515nm may replace ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 10 mm
Crystal Length: 150 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Yb: YAG Laser Crystal by Shandong Laserton Optic
Shandong Laserton Optic Co. Ltd.
Add to watch list
Yb: YAG Laser Crystal by Shandong Laserton Optic
Compare
Yb: YAG Laser Crystal by Shandong Laserton Optic

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 20 mm
Crystal Length: 1 - 70 mm
AR Coating: One side, Both sides
Data Sheet
Inquire Price
Yb:YAG Laser Crystal by OptoCity
OptoCity
Add to watch list
Yb:YAG Laser Crystal by OptoCity
Compare
Ytterbium-doped YAG (Yb:YAG) is an active laser crystal lasing at 1030 nm, with a broad, 18 nm wide absorption band at 940 nm. It is one of the most useful crystal for high-power, diode-pumped solid state lasers. The dopant levels range between 0.2-30% of replaced yttrium atoms. Yb:YAG has very low fractional heating, very high slope ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 20 mm
Crystal Length: 70 mm
AR Coating: One side, Both sides, Uncoated
Data Sheet
Inquire Price
Nd:Ce:YAG, Yb:YAG, Er:YAG, Cr:Tm:Ho:YAG crystals by CASTON
Caston Inc.
Add to watch list
Nd:Ce:YAG, Yb:YAG, Er:YAG, Cr:Tm:Ho:YAG crystals by CASTON
Compare
CASTON supplies Nd:Ce:YAG (1.064μm), Yb:YAG (1.03μm), Er:YAG (2.94μm), Cr:Tm:Ho:YAG (CTH:YAG, 2.1μm), which extend the limits of the usages of YAG crystals. Nd:Ce:YAG has appreciably less thermal distortion and its output laser energy is obviously greater (>30%) than that in Nd:YAG at the same pumping level. Lasing at 1.03μm, ...

Specifications
Type Of Crystal: Nd:Ce:YAG, Yb:YAG, Er:YAG, Ho:Cr:Tm:YAG
Crystal Diameter: Custom mm
Crystal Length: Custom mm
AR Coating: Uncoated
Data Sheet
Inquire Price
Yb:YAG - Ytterbium-doped Yttrium Aluminum Garnet
Nanjing Metalaser Photonics Co.,Ltd.
Add to watch list
Yb:YAG - Ytterbium-doped Yttrium Aluminum Garnet
Compare
Yb: YAG is a laser crystal which is doped with trivalent ytterbium ions in yttrium aluminum garnet crystal and can emits 1030 nm near-infrared laser. Yb:YAG crystal has characters of high quantum efficiency, no excited state absorption and up-conversion, high concentration tolerance, long fluorescence lifetime, wide absorption band ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 5 mm
Crystal Length: 2 mm
AR Coating: Both sides
Orientation: <111>
Data Sheet
Inquire Price

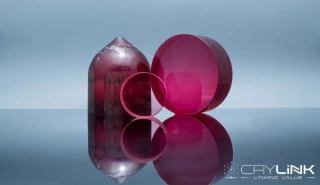

Ti Sapphire Laser Crystal
Nanjing Metalaser Photonics Co.,Ltd
Add to watch list
Ti Sapphire Laser Crystal
Compare
Titanium-doped sapphire (Ti3+:sapphire) as an optically pumped, solid-state laser crystal is widely used in wavelength tunable laser which tunable range is 650-1100nm, and peaking at 800nm, it is one of the widest wavelength tunable laser crystal. The upper-state lifetime of Ti:sapphire is short to 3.2ms, because of high saturation ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 6 mm
Crystal Length: 14 mm
AR Coating: One side
Materials: Ti3+:Al2O3
Data Sheet
Inquire Price
IPL Light Guide
Nanjing Co-Energy Optical Crystal Co.,Ltd.
Add to watch list
IPL Light Guide
Compare
Model NO.: Custom-madeThickness Range: 2mm-5mmType: IPL Light GuidesMaterial: Glass,sapphireShape: CustomizedCustomized: CustomizedTrademark: COESpecification: Custom-MadeHS Code: 9001909090Usage: OpticalColor: BluePrinciple: Selective Absorption FilterAngle of incidence: 45°Certification: RoHS, ISO48*46*3: mmTransport Package: ...

Specifications
Type Of Crystal: Yb:YAG
Crystal Diameter: 1-250 mm
Crystal Length: 1-250 mm
AR Coating: Both sides
Thickness Range: 2-5mm
Data Sheet
Inquire Price
On FindLight marketplace you will find 18 different Yb:YAG Laser Crystals from suppliers around the world. With just a few clicks you can compare different Yb:YAG Laser Crystals and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
