LBO (Unioriental)
Description

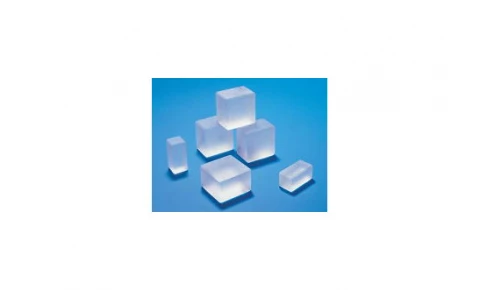

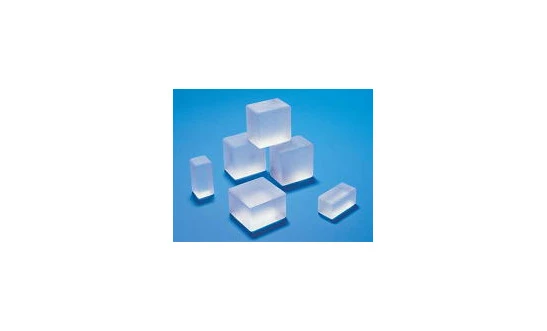

Unioriental supplies Lithium Triborate LiB3O5 or LBO, which is a newly developed nonlinear optical crystal. It is unique in many aspects, especially its wide transparency range, moderately high nonlinear coupling, high damage threshold and good chemical and mechanical properties. Its transmission range is from 0.21μm, to 2.3 μm,. LBO allows temperature-controllable non -critical phase-matching (NCPM) for 1.0-1.3 μm, Type I SHG, and also provides room temperature NCPM for Type II SHG at 0.8-1.1 μm. It possesses a relatively large angular acceptance bandwidth, reducing the beam quality requirements for source lasers.
LBO (Unioriental)
Specifications |
|
|---|---|
| Crystal Type: | LBO (Lithium Triborate) |
| Phase Mathcing Type: | Type I, Type II |
| Mounting: | Mounted, Unmounted |
| Width: | 1 mm |
| Height: | 1 mm |
| Length: | 0.01 mm |
| Flatness: | <= Lambda/8 |
| Surface Quality (Scratch-Dig): | 10-5 |
| AR Coating: | One side, Both Sides, Not Coated |
Features
1.Aperture: 1x1 ~ 25x25mm
2.Length: 0.02 ~ 60mm
3.Phase matching angle θ and φ: Determined by different kinds of harmonic generation.
4.Phase matching type: Type I or Type II
5.End configuration: Flat or Brewster or Specified
Applications
Dimension Tolerance (W±0.1mm)x(±0.1mm)x(L+0.5/-0.1mm)
Angle Tolerance △θ< 0.25°,△Φ < 0.25°
Clear Aperture central 95% of the diameter
Surface Flatness <λ/8 at 633nm
Wavefront Distortion <λ/8 @ 633nm
Chamfer 0.1mm@45°
Surface Quality (S/D) 10 /5
Parallelism < 20 arc seconds
Perpendicularity < 5 arc minutes
Coatings: Protective (P) and Anti-reflection (AR) coating available upon request
Damage threshold >18.9 GW/cm2 for a 1.3ns laser at 1053nm , >25 GW/cm2 for a 10 ns laser at 1064 nm
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
LBO is a nonlinear optical crystal with unique properties such as wide transparency range, high nonlinear coupling, high damage threshold, and good chemical and mechanical properties.
The damage threshold of LBO is greater than 18.9 GW/cm2 for a 1.3ns laser at 1053nm and greater than 25 GW/cm2 for a 10 ns laser at 1064 nm.
Protective (P) and Anti-reflection (AR) coatings are available upon request for LBO.
The transmission range of LBO is from 0.21μm to 2.3 μm.
LBO has two phase matching types: Type I and Type II.
