Mounted Nonlinear Crystals

3photon - BBO (Barium borate crystal)
3photon
Add to watch list
3photon - BBO (Barium borate crystal)
Compare
Barium-borate (BBO or BaB2O4) has two phases: α phase – high temperature phase β phase – low temperature phase  β-barium-borate (BBO) differs from the α-barium-borate by the positions of the barium ions in the crystal. Although both α-BBO and β-BBO phases are ...

Specifications
Crystal Type: BBO (Beta Barium Borate)
Phase Mathcing Type: Type I, Type II, Not Applicable
Mounting: Mounted, Unmounted
Width: 2-20 mm
Height: 2-20 mm
Data Sheet
Inquire Price
3photon - LBO (Lithium triborate crystal)
3photon
Add to watch list
3photon - LBO (Lithium triborate crystal)
Compare
Due to the high damage threshold, wide transparency rage lithium triborate (LBO) is mostly used for second harmonic generation (SHG) a.k.a. frequency doubling and third harmonic generation (THG). But it's possible to use for Fourth harmonic generation with higher power than BBO. Crystals can be heated up for protection or performance ...

Specifications
Crystal Type: LBO (Lithium Triborate)
Phase Mathcing Type: Type I, Type II, Not Applicable
Mounting: Mounted, Unmounted
Width: 2-20 mm
Height: 2-12 mm
Data Sheet
Inquire Price
PPLN/PPLT Crystal for Nonlinear Frequency Mixing
HC Photonics Corp.
Add to watch list
PPLN/PPLT Crystal for Nonlinear Frequency Mixing
Compare
Focusing on nonlinear frequency mixing, HCP develops PPMgO:LN bulk chips and PPMgO:LN waveguide chips on the basis of Periodically Poled Lithium Niobate (LiNbO3), Lithium Tantalate (LiTaO3), MgO:PPLN (5mol.%), and MgO:PPLT (8mol.%). In general principle, PPLN bulk chips are easy to manage and sustain higher power (Watts level), while ...

Specifications
Crystal Type: LiNbO3 (Lithium Niobate), LT (LiTaO3)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 0.1-20 mm
Height: 0.1-4.0 mm
Data Sheet
Inquire Price
Infrared Nonlinear Crystal - GaSe
DIEN TECH
Add to watch list
Infrared Nonlinear Crystal - GaSe
Compare
Gallium Selenide (GaSe) non-linear optical single crystal, combining a large non-linear coefficient, a high damage threshold and a wide transparency range. GaSe is a is very suitable material for SHG in the mid-IR. The frequency-doubling properties of GaSe were studied in the wavelength range between 6.0 µm and 12.0 µm. ...

Specifications
Crystal Type: GaSe
Phase Mathcing Type: Not Applicable
Mounting: Mounted
Width: 60 mm
Height: 60 mm
Data Sheet
Inquire Price

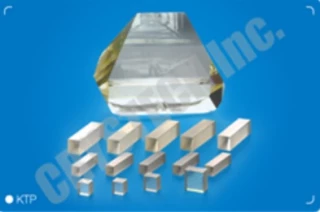

CRYSTECH KTP Crystal
CRYSTECH Inc.
Add to watch list
CRYSTECH KTP Crystal
Compare
Potassium Titanyl Phosphate (KTiOPO3 or KTP) is an excellent nonlinear optical material suitable for use in many optical systems. It has high nonlinear coefficient and stable physical property. Its most popular application is as a frequency doubler utilizing the 1064nm output of a Nd:YAG laser and to generate 532nm laser. KTP’s ...

Specifications
Crystal Type: KTP (KTiOPO4)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 2-20 mm
Height: 2-20 mm
Data Sheet
Inquire Price

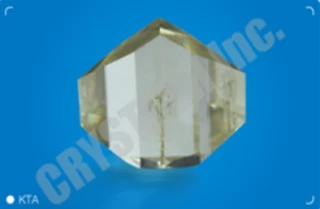

CRYSTECH KTA Crystal
CRYSTECH Inc.
Add to watch list
CRYSTECH KTA Crystal
Compare
Potassium Titanyle Arsenate (KTiOAsO4, or KTA) crystal is an excellent nonlinear optical crystal for Optical Parametric Oscillation (OPO) application. OPO devices based on KTAs are reliable tunable laser sources exhibiting high energy conversion efficiencies above 50%. In addition, KTA has a high damage threshold.KTA crystals ...

Specifications
Crystal Type: KTA (KTiOAsO4)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 2-15 mm
Height: 2-15 mm
Data Sheet
Inquire Price
CRYSTECH BBO Crystal
CRYSTECH Inc.
Add to watch list
CRYSTECH BBO Crystal
Compare
BBO is a negative uniaxial crystal with ordinary refractive-index (no) larger than extraordinary refractive-index (ne). Both type I and type II phase-matching can be reached by angle-tuning. BBO is of particular importance in the visible and far UV range.BBO is hygroscopic. The user is advised to provide dry conditions for both ...

Specifications
Crystal Type: BBO (Beta Barium Borate)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 3-15 mm
Height: 3-15 mm
Data Sheet
Inquire Price
KTP GTR-KTP KTA BBO BIBO LN KD*P Crystals by Crystech
CRYSTECH Inc.
Add to watch list
KTP GTR-KTP KTA BBO BIBO LN KD*P Crystals by Crystech
Compare
A complete range of nonlinear crystals manufactured and sold by Crystech. We provide a wide selection of nonlinear crystals tailored to customers\' needs in laser optics.Please use the REQUEST QUOTE button to contact us.

Specifications
Crystal Type: BBO (Beta Barium Borate), BIBO (BiB3O6), KTA (KTiOAsO4), KTP (KTiOPO4), KD*P (Potassium Dideuterium Phosphate), LiNbO3 (Lithium Niobate)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 2-20 mm
Height: 2-20 mm
Data Sheet
Inquire Price

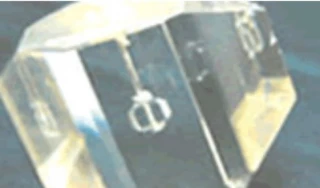

Potassium Titanyl Phosphate - KTP by New Source Technology
New Source Technology LLC
Add to watch list
Potassium Titanyl Phosphate - KTP by New Source Technology
Compare
The most popular application is as a frequency doubler utilizing the 1064nm output of a Nd:YAG laser. The conversion efficiency to 532nm is up to 60% at 250 MW / cm2 . Non-hygroscopic Typical crystal sizes by the hydrothermal process: 15 mm x 20mm x 40 mm

Specifications
Crystal Type: KTP (KTiOPO4)
Phase Mathcing Type: Type II
Mounting: Mounted, Unmounted
Width: 15 mm
Height: 20 mm
Data Sheet
Inquire Price

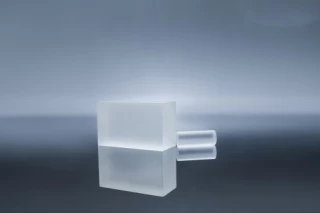

BETA BARIUM BORATE – BBO CRYSTALS SHG@800 nm
Nanjing Metalaser Photonics Co.,Ltd.
Add to watch list
BETA BARIUM BORATE – BBO CRYSTALS SHG@800 nm
Compare
As one of the most important nonlinear optical crystals, beta-barium borate (β-BaB2O4，β-BBO) combines many outstanding features such as its high nonlinear optical coefficients, low group-velocity dispersion, broad transparency range (189–3500 nm) and high damage threshold. This unique combination ensures β-BBO ...

Specifications
Crystal Type: BBO (Beta Barium Borate)
Phase Mathcing Type: Type I
Mounting: Mounted
Width: 6 mm
Height: 6 mm
Data Sheet
Inquire Price
Nonlinear crystal - BiB3O6 (BIBO)
DIEN TECH
Add to watch list
Nonlinear crystal - BiB3O6 (BIBO)
Compare
BiB3O6 (BIBO) is a newly developed nonlinear optical crystal. It possesses large effective nonlinear coefficient, high damage threshold and inertness with respect to moisture. Its nonlinear coefficient is 3.5 - 4 times higher than that of LBO, 1.5 -2 times higher than that of BBO. It is a promising doubling crystal to produce blue ...

Specifications
Crystal Type: BIBO (BiB3O6)
Phase Mathcing Type: Not Applicable
Mounting: Mounted
Width: 10 mm
Height: 10 mm
Data Sheet
Inquire Price
Nonlinear Crystal - LiB3O5 (LBO)
DIEN TECH
Add to watch list
Nonlinear Crystal - LiB3O5 (LBO)
Compare
LBO (Lithium Triborate - LiB3O5) is now the most popularly used material for Second Harmonic Generation (SHG) of 1064nm high power lasers (as a substitute to KTP) and Sum Frequency Generation (SFG) of 1064nm laser source to achieve UV light at 355nm.

Specifications
Crystal Type: LBO (Lithium Triborate)
Phase Mathcing Type: Not Applicable
Mounting: Mounted
Width: 5 mm
Height: 5 mm
Data Sheet
Inquire Price
Infrared Nonlinear Crystal - AgGaSe2 (AGSe2)
DIEN TECH
Add to watch list
Infrared Nonlinear Crystal - AgGaSe2 (AGSe2)
Compare
AGSe2 AgGaSe2(AgGa(1－x)InxSe2) crystals have band edges at 0.73 and 18 µm. Its useful transmission range (0.9–16 µm) and wide phase matching capability provide excellent potential for OPO applications when pumped by a variety of different lasers. Tuning within 2.5–12 µm has been obtained when ...

Specifications
Crystal Type: AgGaSe2 (Silver Gallium Selenide)
Phase Mathcing Type: Not Applicable
Mounting: Mounted
Width: 8 mm
Height: 8 mm
Data Sheet
Inquire Price
Infrared Nonlinear Crystal - AgGaS2 (AGS)
DIEN TECH
Add to watch list
Infrared Nonlinear Crystal - AgGaS2 (AGS)
Compare
AGS is transparent from 0.50 to 13.2 µm. Although its nonlinear optical coefficient is the lowest among the mentioned infrared crystals, high short wavelength transparency edging at 550 nm is made use of in OPOs pumped by Nd:YAG laser; in numerous difference frequency mixing experiments with diode, Ti:Sapphire, ...

Specifications
Crystal Type: AgGaS2 (Silver Gallium Sulfide)
Phase Mathcing Type: Not Applicable
Mounting: Mounted
Width: 5 mm
Height: 5 mm
Data Sheet
Inquire Price
Infrared Nonlinear Crystal - ZnGeP2（ZGP)
DIEN TECH
Add to watch list
Infrared Nonlinear Crystal - ZnGeP2（ZGP)
Compare
Zinc germanium phosphide (ZGP or ZnGeP2) single crystal has large nonlinear coefficients (d36=75pm/V), wide infrared transparency range(0.75-12μm), high thermal conductivity(0.35W/(cm·K)), high laser damage threshold (2-5J/cm2)and well machining property, ZnGeP2 (ZGP crystal) was called the king of ...

Specifications
Crystal Type: ZnGeP2 (ZGP)
Phase Mathcing Type: Type I
Mounting: Mounted
Width: 6 mm
Height: 50 mm
Data Sheet
Inquire Price
Nonlinear Crystal
Union Optic
Add to watch list
Nonlinear Crystal
Compare
Union Optic provides different types of nonlinear crystal, include BBO, KTP, KDP & KD*P, LiNbO3 and etc. We can also provide custom NLO crystals and custom coating upon your request.

Specifications
Crystal Type: BBO (Beta Barium Borate), KTP (KTiOPO4), KDP ( Potassium Dihydrogen Phosphate), KD*P (Potassium Dideuterium Phosphate), LiNbO3 (Lithium Niobate)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 4 mm
Height: 4 mm
Data Sheet
Inquire Price
LBO (Unioriental)
Glas Opticslens Co.,Ltd
Add to watch list
LBO (Unioriental)
Compare
Unioriental supplies Lithium Triborate LiB3O5 or LBO, which is a newly developed nonlinear optical crystal. It is unique in many aspects, especially its wide transparency range, moderately high nonlinear coupling, high damage threshold and good chemical and mechanical properties. Its transmission range is from 0.21μm, to 2.3 μm,. LBO ...

Specifications
Crystal Type: LBO (Lithium Triborate)
Phase Mathcing Type: Type I, Type II
Mounting: Mounted, Unmounted
Width: 1 mm
Height: 1 mm
Data Sheet
Inquire Price
On FindLight marketplace you will find 17 different Mounted Nonlinear Crystals from suppliers around the world. With just a few clicks you can compare different Mounted Nonlinear Crystals and get accurate price quotes based on your needs and quantity required. Note that some wholesale suppliers may offer discounts for large quantities. From any product page you can directly contact any vendor within seconds.
