Zeiss Concave Grating 264510-2951-924
Description

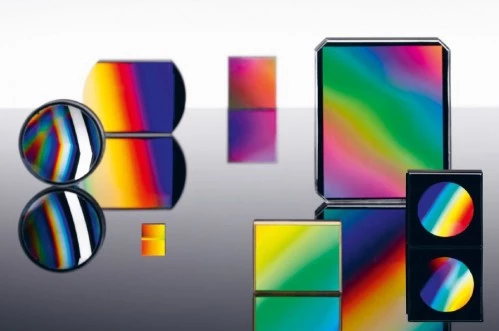

Concave diffraction gratings are diffractive optics components for compact spectrometers. By combining dispersive and imaging properties in a single element concave gratings reduce stray light, increase light intensity, and are ideal for imaging the spectrum on a diode array or a CCD/CMOS sensor. The basic form of all imaging gratings is the Rowland circle grating.
ZEISS concave gratings are produced holographically. This optimizes the focal plane and minimizes aberrations such as astigmatism, spherical aberration and coma over a wide spectral range with a range of groove profiles.
Zeiss Concave Grating 264510-2951-924
Specifications |
|
|---|---|
| Groove Density: | 1600 l/mm |
| Substrate Material: | N-BK7, Fused Silica |
| Radius Of Curvature: | 149.732 mm |
Applications
Spectrographs and spectrometers
Spectroscopy
Scientific and industrial applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Concave diffraction gratings are diffractive optics components for compact spectrometers.
By combining dispersive and imaging properties in a single element, concave gratings reduce stray light, increase light intensity, and are ideal for imaging the spectrum on a diode array or a CCD/CMOS sensor.
Concave gratings are used in spectrographs and spectrometers for scientific and industrial applications.
The groove density of the grating is 1600 ± 2 l/mm.
The diffraction efficiency (unpolarized @ cAD = 32°) is 230 nm ≥ 65 % and 500 nm ≥ 18 %.
