Ruled Plane Grating 510 04
Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 04
Specifications |
|
|---|---|
| Groove Density: | 1200 l/mm |
| Blaze Wavelength: | 250 nm |
| Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
| Dimension (Length): | 58 mm |
| Dimension (Height): | 58 mm |
| Dimension (Thickness): | 10 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The custom master ruled gratings for CO2 lasers are optimized at 10.6 micron wavelength and have a ruling density of 150 l/mm. The coating is gold, and the substrate material is stainless steel with a substrate dimension of 25 mm diameter on 25x25 mm. The absolute efficiency is higher than 95% for TM polarization over 9 to 11 µm wavelength range.

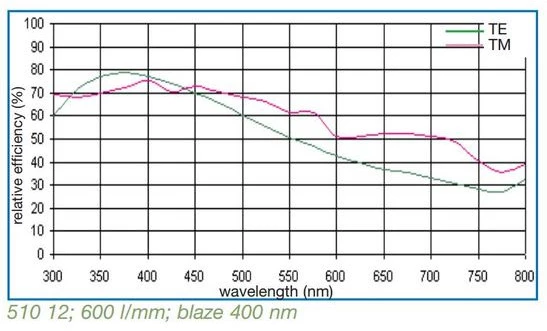

The efficiency curves for ruled plane gratings are absolute theoretical efficiencies, calculated using rigorous electromagnetic theory, taking into account the true groove profiles of manufactured gratings measured with an atomic force microscope (AFM). These curves are for reference only and do not indicate grating specifications.
HORIBA Jobin Yvon is ISO9001:2000 certified and offers complete customer service, including expert technical advice for optimizing system configurations to meet customers’ needs. Their well-staffed departments are committed to customer satisfaction and product quality.
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
The dimensions of high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
