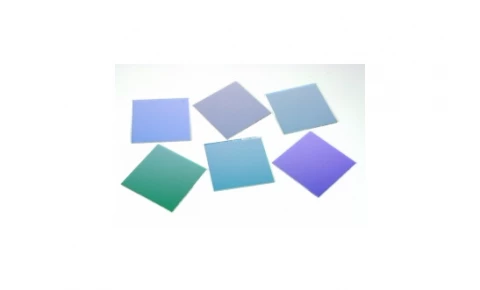

350FDC12 - Dichroic Bandpass Filters
Description
Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. Their design allowed them to isolate the desired wavelength. Dichroic filters offer superior contrast between transmitted and reflected wavelengths. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.
Our dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types.
350FDC12 - Dichroic Bandpass Filters
Specifications |
|
|---|---|
| Central Wavelength: | 350 nm |
| Bandwidth (FWHM): | 90 nm |
| Peak Transmittance: | 95% % |
| Diameter: | 12.5 mm |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic filters are used in several different types of application including entertainment and stage lighting.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The most frequently requested specifications for all dichroic filter types are size, cutting tolerance, glass substrate, dichroic filter types, wavelengths, wavelength accuracy, and transmission.
Dichroic bandpass filters are available in standard 12.5mm and 25mm diameter or 50mm square types. They can also be cut down or edged to special shapes and sizes at short notice.
Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths.
Dichroic filters are used in several different types of application including entertainment and stage lighting.
The transmission rate for dichroic bandpass filters is T Max=95% typical dependant on type and substrate.
