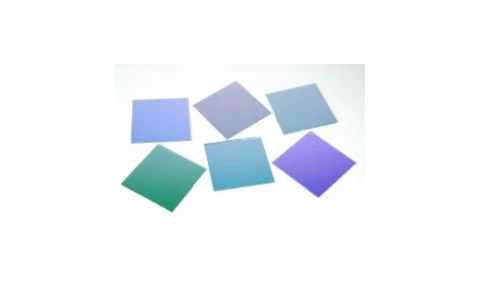

525FDC25 - Dichroic Bandpass Filters
Description
Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. Their design allowed them to isolate the desired wavelength. Dichroic filters offer superior contrast between transmitted and reflected wavelengths. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.
Our dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types.
525FDC25 - Dichroic Bandpass Filters
Specifications |
|
|---|---|
| Central Wavelength: | 525 nm |
| Bandwidth (FWHM): | 50 nm |
| Peak Transmittance: | 95% % |
| Diameter: | 25.0 mm |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic filters are used in several different types of application including entertainment and stage lighting.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Yes, dichroic filters can be customized to fit specific requirements. They can be cut down or edged to special shapes and sizes at short notice, mounted on diameters and squares, and supplied in sets in a wooden storage box for research and laboratory use. Bespoke shapes, no matter how complex, can also be supplied.
Dichroic bandpass filters are designed to transmit highly over a specific limited bandwidth while reflecting all other wavelengths. They are used to isolate the desired wavelength and offer superior contrast between transmitted and reflected wavelengths.
Dichroic bandpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types. They are also available in sizes ranging from Square 7mm-300mm, Diameter 10mm-400mm.
Dichroic filters are available in longpass, shortpass, bandpass, bandblocking, hot and cold mirrors, IR and UV cut-off types.
The wavelength accuracy of dichroic filters is +/-5nm.
