Solar Blind Filter 120-250nm FB120-VBB-2D (2.0" Diameter)
Description
Teledyne Acton Optics introduces Solar Blind Filters, originally designed for the U.S. space program. These unique "very broadband" UV and VUV filters are invaluable for isolating wide bands of UV or UV-VUV radiation. Offering very broadband (VBB) transmittance properties with an average of 10–20% over specified bands, these filters ensure precision in UV spectral applications.
The Model 170-VBB is crafted open-faced but can be provided covered and edge-sealed to safeguard the coated surface. With Model 120-VBB and Model 170-VBB, achieve broad-spectrum UV filtration with unmatched performance.
Solar Blind Filter 120-250nm FB120-VBB-2D (2.0" Diameter)
Specifications |
|
|---|---|
| Central Wavelength: | 185 nm |
| Bandwidth (FWHM): | 130 nm |
| Peak Transmittance: | 20 % |

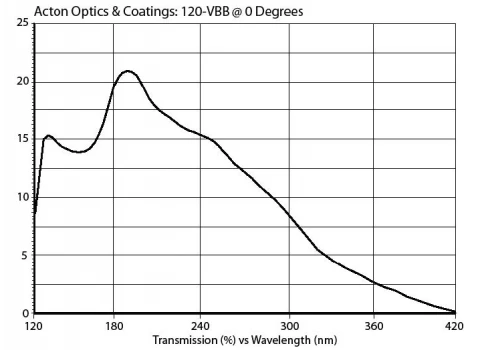

| Average Transmission (120nm - 250nm): | 10-20 % |
| Diameter: | 50.8 mm |
Features
- "Very Broadband" Filters: Designed for isolating broad bands of UV or UV-VUV radiation
- Broadband Transmittance: Offers an average transmittance of 10-20% across the specified bands
- Exceptional Rejection: Achieves a rejection of approximately 5x10-3 at 500 nm, ensuring precise filtration
- Open-Faced Design: Model 170-VBB is open-faced and can be supplied covered and edge-sealed for added protection
Applications
- Space Exploration: Originally designed for the U.S. space program, these filters are suitable for space-based UV and VUV applications
- UV Spectroscopy: Ideal for UV spectroscopy applications, ensuring precise wavelength isolation
- Research and Development: Valuable in laboratories and research settings for accurate UV-VUV experimentation
