600FDL25 - Dichroic Longpass Filters
Description
Longpass filters are designed to transmit wavelengths higher than the cut on point and reflect all lower wavelengths. These dichroic longpass filters consist of thin-film dielectric coatings on glass with sharp transitions between the transmitted and reflected bands. Having negligible absorption they are suitable for high powers and do not show the strong fluorescence of certain glass filters.

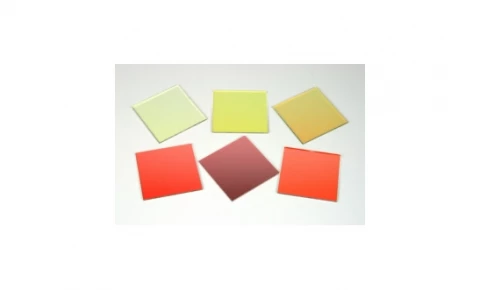

Our dichroic longpass filters are available in a range of wavelengths and are supplied in standard 12.5mm and 25mm diameter or 50mm square types. We are happy to cut and edge filters for non standard sizes to suit your application.
600FDL25 - Dichroic Longpass Filters
Specifications |
|
|---|---|
| Diameter: | 25.0 mm |
| Thickness: | 1.1 mm |
| Transmission Wavelength Range: | 600-2600nm |
| Cut-On Wavelength: | 600 nm |
| Transmission: | 95 % |
| Blocking (Optical Density): | OD<1 |
Features
Available size: Square 7mm-300mm, Diameter 10mm-400mm.
Cutting down or edged to special shapes and sizes at short notice.
Mounting of diameters and squares.
Available in sets, supplied in a wooden storage box for research and laboratory use.
Applications
Dichroic longpass filters are used in several applications such as stage lighting and entertainment.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Dichroic longpass filters are available in standard 12.5mm and 25mm diameter or 50mm square types. They can also be cut and edged for non-standard sizes.
The substrate materials for dichroic filters include soda-lime glass, tempered glass, borosilicate glass, and borofloat glass.
Dichroic longpass filters are used to transmit wavelengths higher than the cut on point and reflect all lower wavelengths.
Dichroic longpass filters are suitable for applications such as stage lighting and entertainment.
The wavelength accuracy of dichroic longpass filters is +/-5nm.
