Broadband UV-NIR Neutral Density Filter FND0.5-1D-BB (1.0" Diameter)
Description
Teledyne Acton Optics presents Broadband UV-NIR Neutral Density Filters, providing constant transmission from 190 nm to 1700 nm. These filters offer consistent attenuation across the UV to NIR spectrum, ensuring superior optical performance and wavefront quality.
Ideal for precision optical systems, spectrometers, and medical systems, these filters are perfect for use with broadband sources like xenon, deuterium, and tungsten halogen.
Teledyne Acton Optics' exclusive filter coatings can be applied to custom-sized substrates for OEM applications and can be designed for specific optical density values upon request.
Broadband UV-NIR Neutral Density Filter FND0.5-1D-BB (1.0" Diameter)
Specifications |
|
|---|---|
| Attenuator Type: | Reflective |
| Shape: | Round |
| Size: | 25.4 mm |
| Optical Density: | 0.5 |

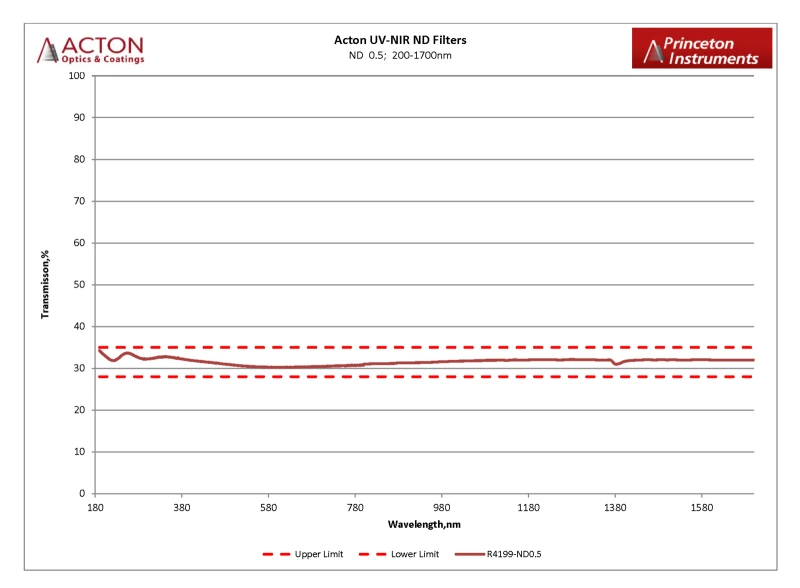

| Nominal Transmission: | 32 % |
| Transmission Range:: | 28-35.5 % |
| Surface Quality: | <2 waves @ 633nm both sides |
| Parallelism: | 3 arc min |
| Scratch/Dig: | 20-10 |
| Chamfer: | 0.5mm x 45 degrees |
| Clear Aperture (Central): | 90 % |
| Angle Of Incidence (AOI): | Normal |
| Coating: | Hybrid metallic |
| OD Tolerance: | +/- 10 % |
| Wavelength Range: | 190 - 1700 nm |
Features
- Broad Spectrum Transmission: Ensures constant transmission from 190 nm to 1700 nm for a wide range of applications
- Consistent Attenuation: Provides consistent attenuation from UV to NIR, maintaining precise light intensity control
- Superior Optical Performance: Delivers superior optical quality and wavefront integrity for accurate measurements
- Customizable: Coatings can be applied to custom-sized substrates, offering flexibility for OEM applications
- Wide Range of Optical Densities: Available in various optical density values (0.3 to 2.5) to meet diverse application requirements
Applications
- Precision Optical Systems: Essential for maintaining precise light intensity in optical setups
- Spectrometers: Ensures accurate spectral analysis by controlling light intensity across a wide wavelength range
- Medical Systems: Used for consistent light attenuation in medical imaging and diagnostic equipment
- Research Laboratories: Ideal for research experiments requiring controlled light intensity and spectral characteristics
- Industrial Applications: Suitable for industrial processes requiring specific light intensity control in UV and NIR spectra
