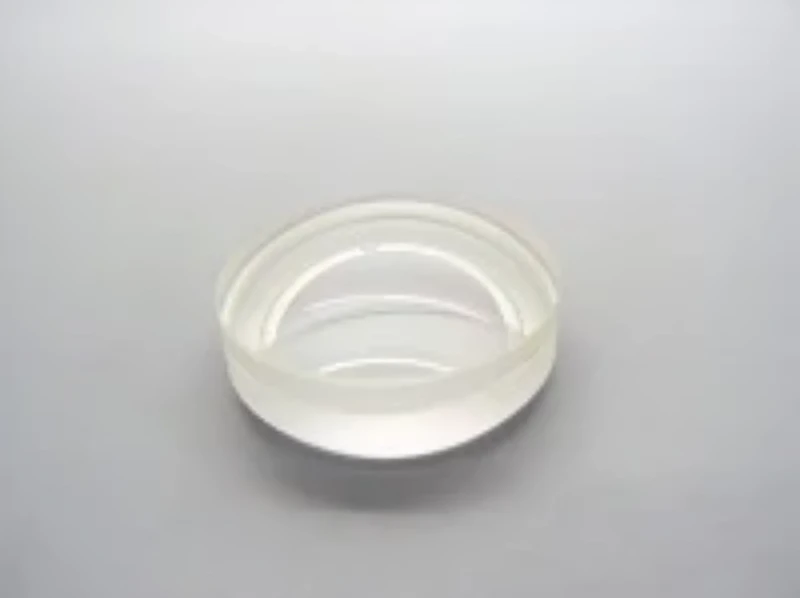

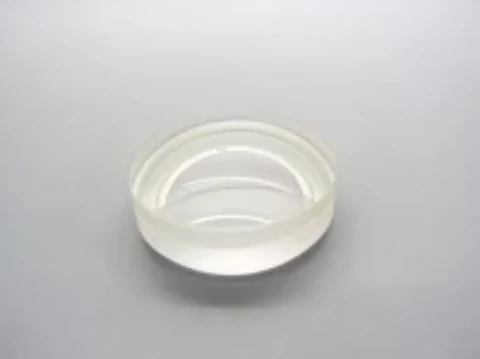

Custom Doublet Lens for Optical Assemblies
Description
The Custom Doublet Lens from Sinoptix is meticulously designed for high-performance optical assemblies, making it an essential component in a variety of optical systems. This versatile lens is available in multiple materials, including N-BK7, H-K9L, and fused silica, allowing for tailored solutions based on specific application requirements.
With dimensions ranging from 5mm to 250mm, this lens accommodates a wide range of setups, ensuring compatibility with various optical configurations. It is offered in plano-convex and meniscus shapes, each designed to optimize light transmission and image quality.
To enhance performance, our custom doublet lenses are treated with advanced anti-reflective (AR) coatings, significantly reducing light loss and improving overall efficiency. Precision cementing techniques are employed during assembly to ensure reliable optical alignment and durability.
Whether for imaging systems, laser applications, medical devices, or research and development, our Custom Doublet Lens meets the rigorous demands of modern optical technologies. Contact us today to discuss your specific dimensions and design needs, and let us help you achieve optimal optical performance.
Custom Doublet Lens for Optical Assemblies
Specifications |
|
|---|---|
| Mounting: | Unmounted |
| Optimal Wavelength Range: | 250-2800nm |
| Diameter: | custom mm |
| Focal Length: | custom mm |
| Achromat Type: | Doublet, Triplet |
| Shape: | Plano-convex, Meniscus |
| Material: | N-BK7, H-K9L, Fused Silica, other materials upon request |
| Coating: | AR Coating (Transmission up to 99%) |
| Assembly Method: | Precision cementing |
| Surface Quality: | High-quality polishing, customizable to application needs |
| Applications: | Optical assemblies, laser systems, imaging devices, scientific research |
Features
- Material Flexibility: Available in N-BK7, H-K9L, Fused Silica, and other optical materials upon request
- Customizable Dimensions: Ranges from 5mm to 250mm in diameter to suit various applications
- Precision Assembly: Precision cementing for stable optical alignment and performance.
- AR Coating: Anti-reflective coatings providing up to 99% light transmission
- Multiple Shapes: Available in plano-convex and meniscus designs to optimize optical performance
- Superior Image Quality: Designed to reduce spherical and chromatic aberrations for enhanced image clarity
Applications
- Optical Instruments: Perfect for use in microscopes, telescopes, and imaging systems requiring high precision
- Laser Systems: Ideal for laser applications where precise focusing and low aberration are critical
- Spectrometry: Suitable for optical assemblies used in spectrometry requiring high transmission and minimal reflection
- Cameras and Vision Systems: Enhances image quality in professional cameras and advanced vision systems
- Scientific Research: Used in laboratory equipment requiring highly accurate optical components
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Belgium
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The Custom Doublet Lens is available in N-BK7, H-K9L, fused silica, and other optical materials upon request.
Dimensions range from 5mm to 250mm, accommodating various optical assembly needs.
The lens is offered in plano-convex and meniscus shapes, designed for optimal light transmission and imaging.
Yes, each lens features advanced anti-reflective (AR) coatings to minimize light loss and enhance transmission efficiency.
The lens is assembled using precision cementing techniques to ensure accurate optical alignment and stability.
Absolutely! We encourage customers to contact us with their specific dimensions and design requirements for a custom solution.
The Custom Doublet Lens is ideal for imaging systems, laser applications, medical devices, and research and development projects.
To place an order, please contact us directly with your specifications, and our team will assist you through the process.
