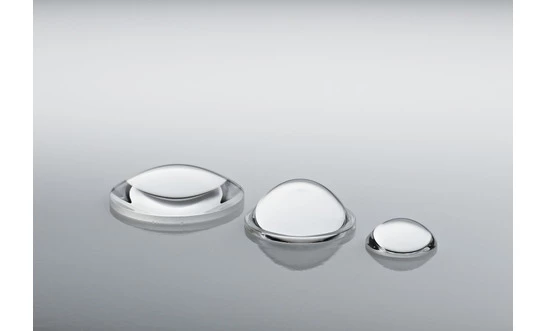

LAQ0808 - Precision grade aspheric lenses AR coated
Description
Traditionally lens surfaces have been sections of a sphere. For many applications this leaves spherical aberration as the dominant defect of any image so created. Aspheric lenses are used to correct these image defects. One solution to this is to have one or both surfaces, departing from the spherical shape. Aspheric lenses can be very effective, focussing or collimating laser beams. Aspheric lenses are polished to a good surface finish but the surface is not spherical and shaped to reduce the aberrations from a single on axis point.
These precision grade aspheric lenses will provide excellent performance over the visible spectrum and NIR applications. The glass aspheric lenses are coated with a single-layer AR coating on high index flint glass achieving high transmission of 98% at the stated wavelength (Typical V coating designed for 550nm).
LAQ0808 - Precision grade aspheric lenses AR coated
Specifications |
|
|---|---|
| Diameter: | 9.94 mm |
| Material: | D-LaK6 |
| Effective Focal Length: | 8.00 mm |
| Numerical Aperture (NA): | 0.50 |
| Wavelength Range: | 350-2000nm |
Features
Mounting options.
Stock lenses can be edged to smaller diameters.
Special AR coatings available on stock lenses.
Applications
Precision aspherical lenses are used in applications such as beam focusing/collimation and Imaging.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The non-spherical surface of an aspheric lens allows a single component to effectively focus or collimate even highly divergent emissions, potentially replacing a multi-lens system with a single aspheric lens.
Custom aspheric lenses can be made in a range of sizes as small as 2mm diameter up to 100mm or greater, with focal lengths from 3mm to 1000mm+.
Traditional spherical lenses cannot collimate light effectively because even small angles of incidence can produce spherical aberrations.
Aspheric lenses may be AR coated for UV/VIS/NIR applications, and special AR coatings are available on stock lenses.
Aspheric lenses are used to correct spherical aberration in lasers and imaging.
