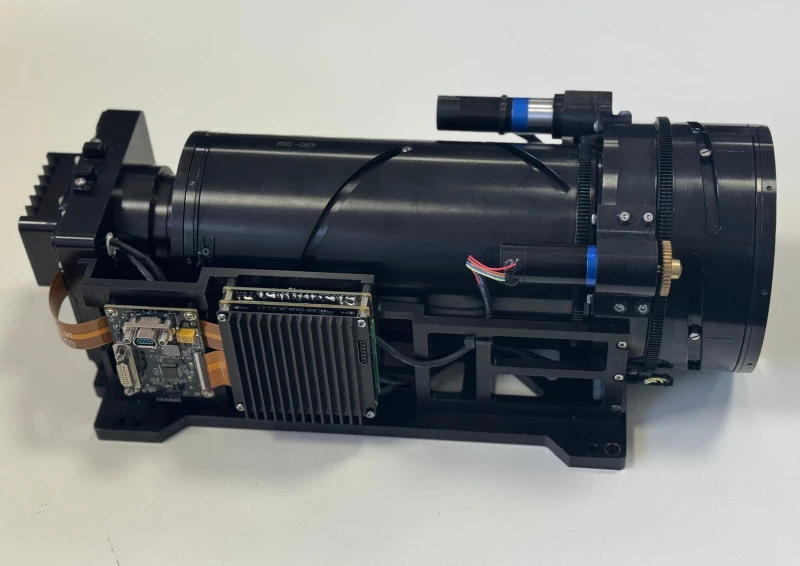

Visible-Light Motorized Continuous Zoom Lens
Description
The Continuous Zoom Lens is a compact and lightweight optical solution designed primarily for handheld photoelectric telescopes and small electro-optical pods. Featuring a flange connection for seamless integration, this lens incorporates a back-focusing structure to compensate for object distance variations and temperature changes, ensuring consistent imaging performance. It offers dual observation modes—visible light and optical fog reduction—enhancing clarity across diverse environmental conditions. With a recognition range of 6–8 km for vehicles and 3–3.5 km for personnel, it delivers exceptional long-range observation capabilities. Constructed from durable aluminum alloy, the lens withstands impact forces of 40g/11ms and operates reliably in extreme temperatures from -45°C to 70°C. Ideal for electro-optical pods, surveillance and targeting systems, remote-controlled weapon stations (RCWS), and large zoom-guide lenses, this high-performance lens is engineered for demanding defense and reconnaissance applications.
Visible-Light Motorized Continuous Zoom Lens
Specifications |
|
|---|---|
| Objective Lens Options: | 100X |
| Focus Repeatability (full Range): | 1 um |
| Focus Accuracy (full Range): | 1 um |
| Resolution: | 4.2 um |
Features
- The flange connection used in this product, the overall design is mainly lightweight and miniature.
- The back-focusing structure is used to compensate the object distance and temperature, and the observation vehicle can recognize 6 ~ 8km, and the observer can recognize 3 ~ 3.5km.
- Two observation modes of visible light and optical fog reduction. The whole structure is made of aluminum alloy, which can withstand the impact strength of 40g/11ms, and can work at temperatures below -40℃ or even -45℃, and the high temperature can reach 70℃.
Applications
- Electro-optical pod
- Electro-Optical Reconnaissance Surveillance and Targeting System
- RCWS
- Large zoom-guide lenses
