ORAFOL Fresnel Cylindrical Lens CY 585
Description
The Fresnel Cylindrical Lens CY 585 by ORAFOL Fresnel Optics GmbH is a high-precision optical solution designed to focus light along one axis, creating a line focus. This lens offers significant advantages in applications such as laser diode collimation, barcode scanning, and imaging systems, where cylindrical lenses are essential for controlling light distribution in a linear manner. Manufactured with ORAFOL’s proprietary Fresnel technology, the CY 585 lens provides high optical performance in a compact, lightweight design, making it ideal for space-constrained environments.
The lens’ unique Fresnel structure minimizes weight and material usage while delivering outstanding optical clarity and focus precision. This innovative design also helps reduce spherical aberration, ensuring that light rays are efficiently converged into a precise line. With its durable construction, the CY 585 is suitable for use in harsh environments, maintaining reliable performance under demanding operational conditions.
Whether used in laser systems, optical metrology, or light concentration applications, the Fresnel Cylindrical Lens CY 585 guarantees excellent optical efficiency and long-term reliability. Its versatility, high transmission, and precision make it a trusted choice for engineers and system designers seeking effective solutions for optical alignment and light manipulation.
ORAFOL Fresnel Cylindrical Lens CY 585
Specifications |
|
|---|---|
| Focal Length: | 37.6 mm |
| Facet Spacing: | 0.254 mm |

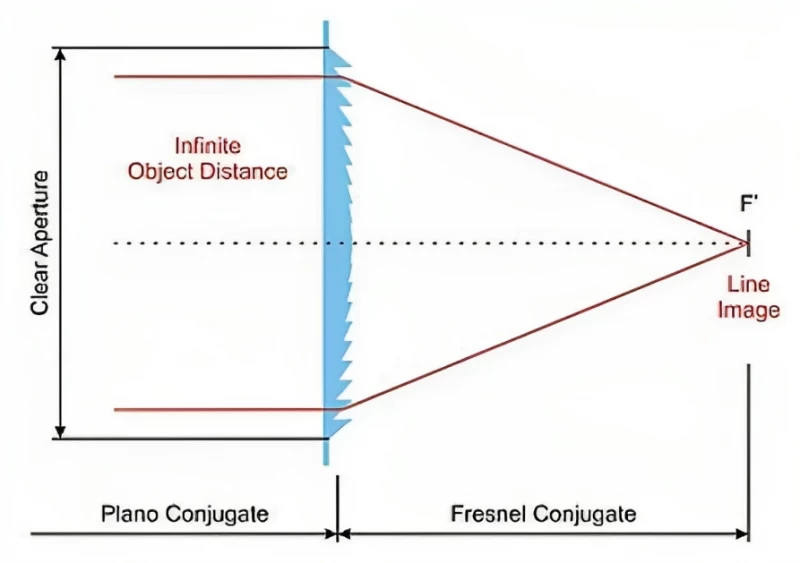

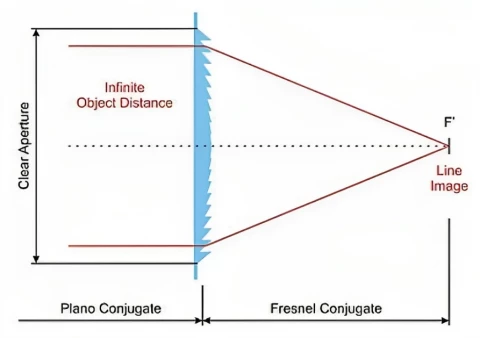

| Fresnel Conjugate: | inf mm |
| Plano Conjugate: | 37.6 mm |
| Clear Aperture (X): | 206.7 mm |
| Clear Aperture (Y): | 42.6 mm |
| Thickness: | 1.8 mm |
Features
- Cutting-Edge Fresnel Cylindrical Lens Technology
- Linear Fresnel Structure for Directional Light Collection
- Precision in Line Mapping for Enhanced Optical Performance
- Lightweight Construction for Reduced Weight and Volume
- Optimal Apertures and Optically Effective Surfaces
Applications
- Laser Line Generators and Alignment Systems
- Machine Vision and Imaging Technologies
- Optical Measurement Instruments
- Projection Systems and Displays
- Specialized Lighting Applications
