LFQ20100 - Fresnel lens PMMA acrylic type
Description
Fresnel lenses consist of a flat surface with interspaced, concentric steps whereby each step corresponds to the surface of a conventional lens. Each step thereby acts as a refractive surface, much like a prism. This gives the fresnel lens a common focal length equivalent to a traditional lens, but with a fraction of the thickness. Additionally, because the lens is so thin little light is lost by absorption. Although the image quality is generally poor, fresnel lenses can be desirable for use in condenser and lighting systems to collimate and collect light in equipment such as sensors or communication systems. Fresnel lenses can be used as magnifiers, but this is not recommended unless the thin profile and light weight is absolutely necessary. Fresnel PMMA lenses are also ideal for simulators and projection systems.
This stock range of fresnel lenses range from 5mm to 650mm aperture and contains both standard and precision ranges of fresnel lenses. The precision range has tighter tolerances with improved surface quality. These ranges are uncoated however antireflective coatings can be applied at short notice.
LFQ20100 - Fresnel lens PMMA acrylic type

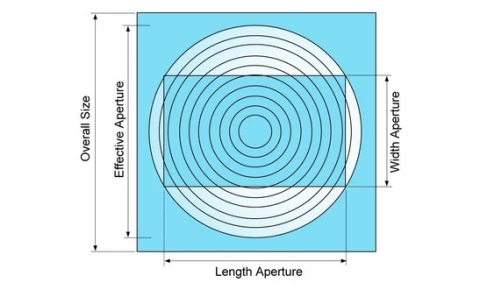

Specifications |
|
|---|---|
| Material: | PMMA Acrylic |
| Lens Type: | Spherical |
| Focal Length: | 20 mm |
| Facet Spacing: | 0.5 mm |
| Clear Aperture: | 100 mm |
| Thickness: | 2 mm |
Features
Cutting down of stock lenses to custom sizes.
Antireflective coatings.
Other focal lengths and aperture sizes available at short notice.
Applications
Fresnel lenses are used in a very wide range of applications such as lighting, solar and security.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
Fresnel lenses can be used as magnifiers, but it is not recommended unless the thin profile and light weight is absolutely necessary.
Fresnel lenses are used in a wide range of applications such as lighting, solar, and security.
Yes, antireflective coatings can be applied to fresnel lenses at short notice.
The stock range of fresnel lenses ranges from 5mm to 650mm aperture.
Fresnel lenses are made of PMMA acrylic material.
