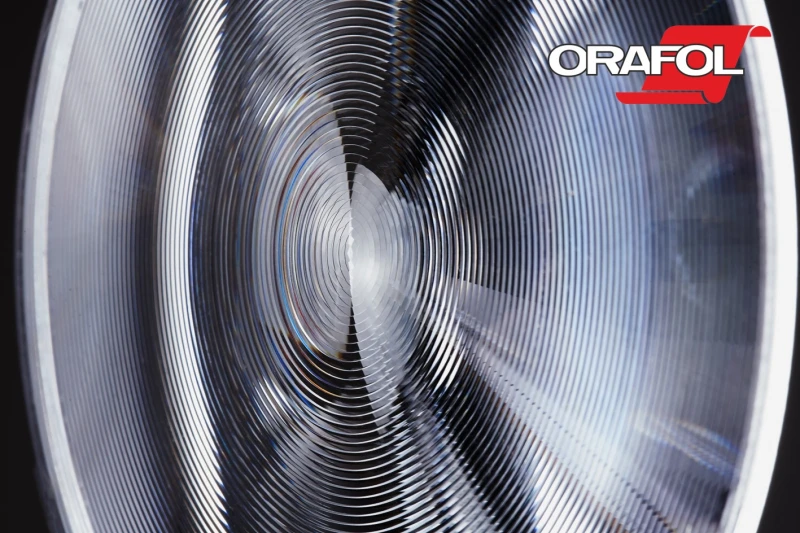

ORAFOL Positive Fresnel Lens SC 234
Description
The ORAFOL Positive Fresnel Lens SC 234 is an innovative optical component designed for precision light focusing with a reduced profile. By utilizing Fresnel technology, this lens provides all the optical benefits of traditional convex lenses but with a significantly thinner and lighter form factor. It is ideal for applications where space, weight, and optical performance are crucial.
This lens is made from high-quality optical-grade materials, ensuring long-term durability and excellent light transmission across a wide spectral range. With a positive focal length, the ORAFOL Positive Fresnel Lens SC 234 is engineered for tasks that require accurate light convergence, such as solar energy concentration, projection systems, imaging devices, and more. It effectively minimizes optical aberrations like spherical distortion, ensuring sharp and clear light focusing.
Thanks to its lightweight design and high optical performance, the SC 234 can be seamlessly integrated into compact devices or large-scale systems, depending on the application. This lens operates efficiently across various wavelengths, making it versatile for different types of light sources, including LEDs and lasers.
ORAFOL Positive Fresnel Lens SC 234
Specifications |
|
|---|---|
| Material: | PMMA Acrylic |
| Lens Type: | Spherical, Non-Imaging - Spot, Positive |
| Focal Length: | 38.0 mm |
| Facet Spacing: | 38.0 mm |

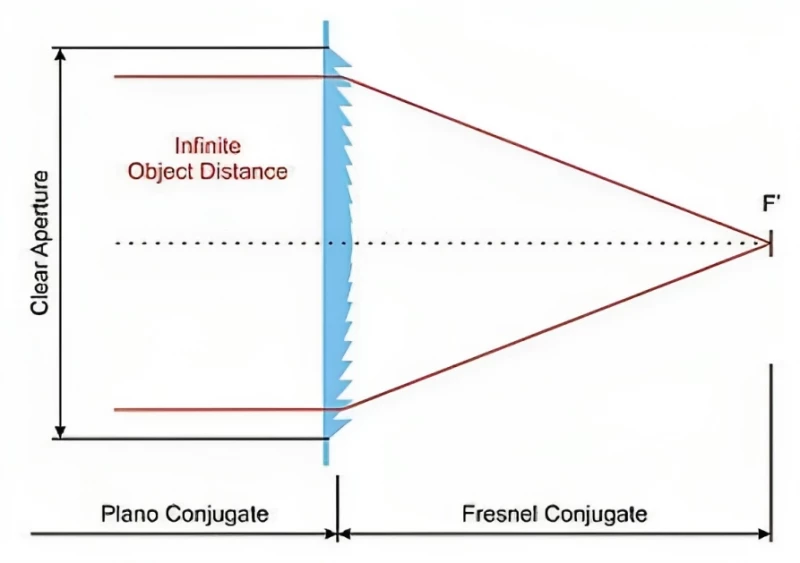

| Fresnel Conjugate: | inf mm |
| Clear Aperture: | 56.3 mm |
| Thickness: | 1.8 mm |
Features
- Microstructured precision optics, including positive Fresnel lenses
- Lightweight, volume-efficient design
- High apertures and optically effective surfaces
- Cost-effective solutions for diverse applications
- Expertly crafted with cutting-edge technology
- Backed by ORAFOL's legacy of top-quality manufacturing
Applications
- Focusing and collimating light
- Precision processing of materials, including steel, wood, plastics, textiles, granite, and marble
- Ideal for applications requiring weight, volume, and installation depth reduction
- Suitable for projects demanding high apertures and visually appealing surfaces
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
It is designed to converge light with precision, ideal for imaging, projection, and solar concentration applications.
The lens is made from optical-grade PMMA or glass, ensuring durability and excellent light transmission.
The lens features a positive focal length, customizable to meet specific application needs.
The Fresnel design significantly reduces the lens's thickness and weight while maintaining high optical performance.
The lens efficiently transmits light within the range of 400 nm to 1100 nm.
Yes, it is designed to withstand outdoor conditions, with an operating temperature range of -40°C to +80°C.
It is engineered to reduce distortions like spherical aberrations, ensuring sharp and focused light output.
Yes, it is ideal for enhancing light collection and efficiency in solar energy systems.
The lens has a diameter of 60 mm and a thickness of 3 mm, making it compact and lightweight.
Yes, the lens is compatible with various light sources, including LEDs and lasers.
