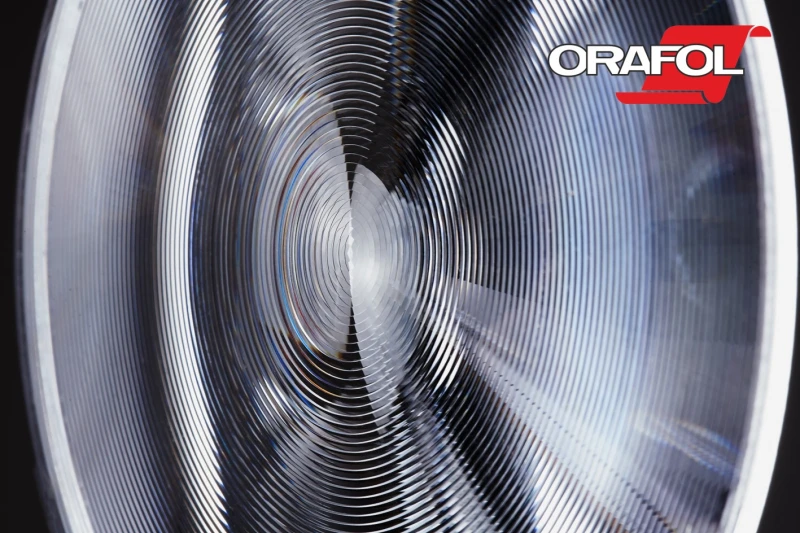

ORAFOL Positive Fresnel Lens SC 244
Description
The OraFol Positive Fresnel Lens SC 244 is a high-performance optical component designed to deliver precise light focusing in a compact, lightweight format. This lens utilizes Fresnel technology to achieve the same focusing power as traditional convex lenses, but with a much thinner and lighter design. It is ideal for applications where space, weight, and optical clarity are of paramount importance.
The SC 244 lens is crafted from high-quality optical-grade PMMA, ensuring optimal light transmission and durability. With a positive focal length, it is engineered for applications such as projection systems, solar concentrators, and optical instruments that require accurate light convergence. Its advanced design minimizes optical aberrations like spherical distortion, providing sharp and clear imaging or light focusing.
Designed to operate effectively across a wide spectral range, the OraFol Positive Fresnel Lens SC 244 offers versatility for various light sources, including LEDs and lasers. This lens also withstands a wide range of environmental conditions, making it suitable for both indoor and outdoor applications. With its lightweight, durable construction, the SC 244 is ideal for integration into a variety of optical systems.
ORAFOL Positive Fresnel Lens SC 244
Specifications |
|
|---|---|
| Material: | PMMA Acrylic |
| Lens Type: | Spherical, Non-Imaging - Spot, Positive |
| Focal Length: | 40.8 mm |
| Facet Spacing: | 0.381 mm |

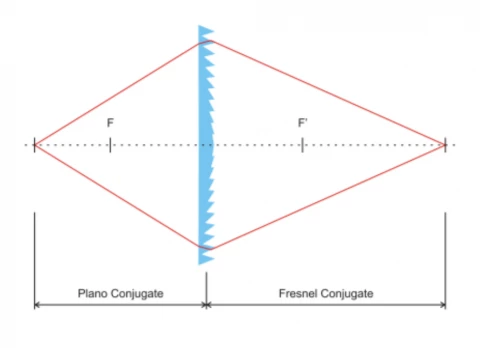

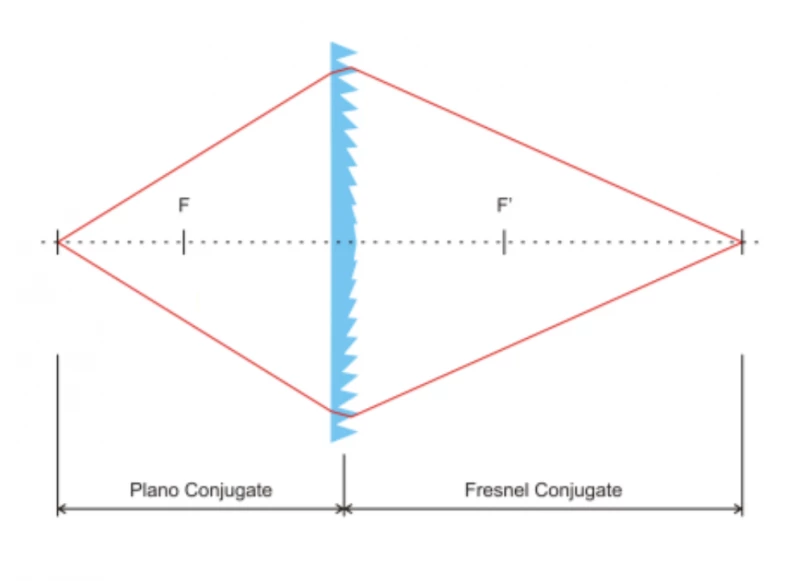

| Fresnel Conjugate: | inf mm |
| Clear Aperture: | 86.9 mm |
| Thickness: | 1.8 mm |
Features
- Microstructured precision optics, including positive Fresnel lenses
- Lightweight, volume-efficient design
- High apertures and optically effective surfaces
- Cost-effective solutions for diverse applications
- Expertly crafted with cutting-edge technology
- Backed by ORAFOL's legacy of top-quality manufacturing
Applications
- Focusing and collimating light
- Precision processing of materials, including steel, wood, plastics, textiles, granite, and marble
- Ideal for applications requiring weight, volume, and installation depth reduction
- Suitable for projects demanding high apertures and visually appealing surfaces
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The lens is designed for light convergence, ideal for imaging systems, solar energy, and projection applications.
The lens is made from high-grade optical PMMA or glass for excellent durability and clarity.
The lens features a positive focal length, customizable based on specific application requirements.
Yes, with its durable materials and operating temperature range of -40°C to +85°C, it can be used in outdoor setups.
The Fresnel design reduces weight and thickness, offering portability while maintaining optical performance.
The lens efficiently transmits light across a broad spectral range of 400 nm to 1100 nm.
Yes, it is ideal for solar energy systems, enhancing light collection and efficiency in solar concentrators.
The lens provides precise light focusing, making it suitable for high-quality image production in projection systems.
The lens has a diameter of 55 mm and a thickness of 2.8 mm, providing a compact, lightweight design.
Yes, the lens is optimized to reduce spherical aberrations, ensuring sharp and accurate light focusing.
