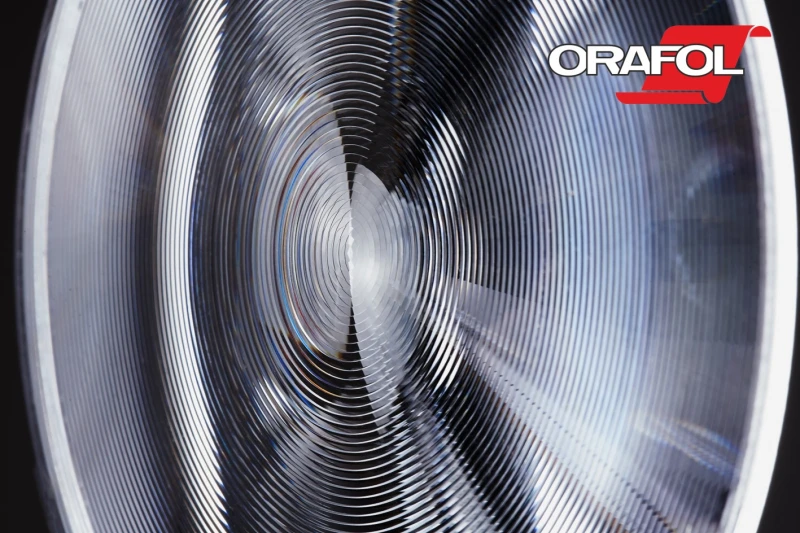

Positive Fresnel Lens SC 214
Description
Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.
The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.
At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.
Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.
Positive Fresnel Lens SC 214
Specifications |
|
|---|---|
| Material: | PMMA Acrylic |
| Lens Type: | Non-Imaging - Spot, Positive |
| Focal Length: | 607.8 mm |
| Facet Spacing: | 0.508 mm |

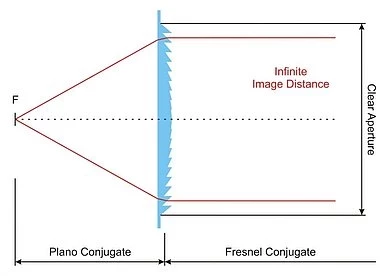

| Fresnel Conjugate: | infinite mm |
| Clear Aperture: | 460.9 mm |
| Thickness: | 1.8 mm |
Features
- Lightweight, volume-efficient design
- High apertures and optically effective surfaces
- Cost-effective solutions for diverse applications
- Expertly crafted with cutting-edge technology
- Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing
Applications
- Advanced lighting applications
- Optical sensor technology
- Machine vision systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The lenses are made from high-quality PMMA with a refractive index of 1.49.
Focal lengths range from 6.3 mm to 764.0 mm, accommodating various optical needs.
Yes, the standard thickness is 1.8 mm, but other thicknesses are available upon request.
Clear apertures vary by model, with options available for customization based on project requirements.
Yes, they can be used in outdoor applications, but protective measures should be taken against extreme conditions.
They are used in optical systems, scientific research, industrial applications, and consumer electronics.
Facet spacings vary by model, ranging from 0.076 mm to 0.762 mm, optimizing light management.
Warranty details may vary; please consult the manufacturer or supplier for specific terms.
Yes, special designs and customizations can be requested based on specific application needs.
The lenses are engineered for optimized light transmission and minimal aberrations, improving overall performance.
