Positive Fresnel Lens SC 230
Description
Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.
The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.
At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meeting your specific requirements.
Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.
Positive Fresnel Lens SC 230
Specifications |
|
|---|---|
| Material: | PMMA Acrylic |
| Lens Type: | Non-Imaging - Spot, Positive |
| Focal Length: | 6.3 mm |
| Facet Spacing: | 0.102 mm |

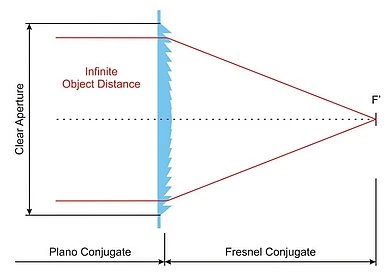

| Fresnel Conjugate: | 6.3 mm |
| Clear Aperture: | 10.0 mm |
| Thickness: | 1.8 mm |
Features
- Lightweight, volume-efficient design
- High apertures and optically effective surfaces
- Cost-effective solutions for diverse applications
- Expertly crafted with cutting-edge technology
- Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing
Applications
- Advanced lighting applications
- Optical sensor technology
- Machine vision systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Germany
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
Yes, Positive Fresnel Lenses are usually corrected for spherical aberration.
Using plastic microstructured optical components offers many advantages over conventional optical products, such as significant reduction in weight, thickness, and volume; ease in manufacturing of extremely high-aperture (fast) elements and large-area optical components; almost unlimited flexibility in optical design; and cost-effective custom finishing of parts to virtually any shape and dimension.
Positive Fresnel Lenses can be designed as a collimator, collector, or with finite conjugates.
A Positive Fresnel Lens is a special optical lens that has its surface divided into a number of concentric grooves.
The clear aperture of SC 230 Positive Fresnel Lens is 10.0.
