Lenticular LN 611

Name: Lenticular LN 611
Brand: ORAFOL Fresnel Optics

Description

The FRESNEL OPTICS LN 611 ist a lenticular by ORAFOL Fresnel Optics.

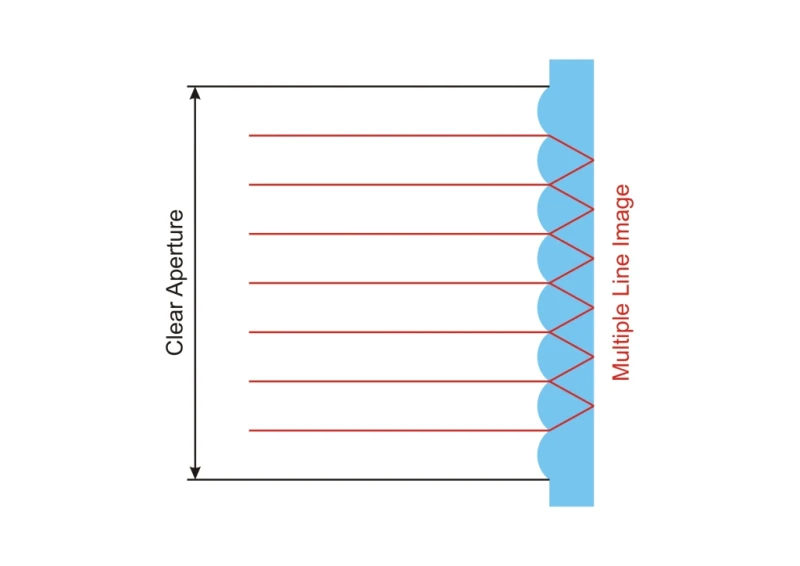

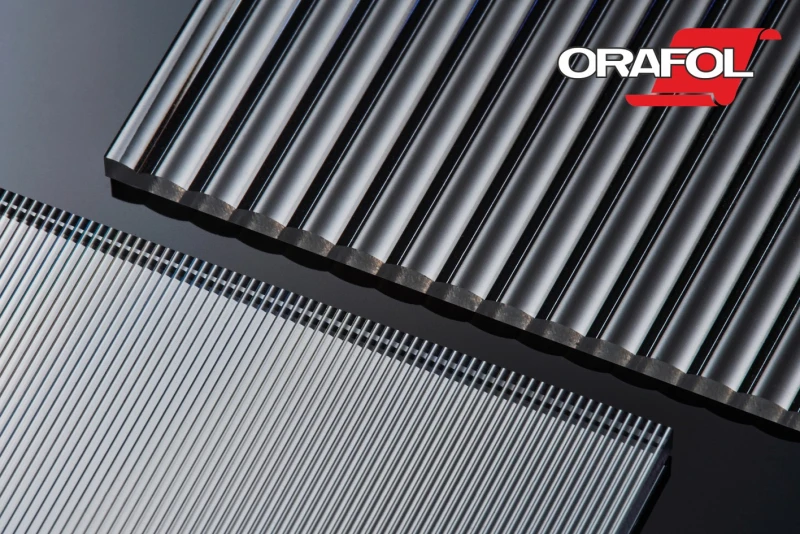

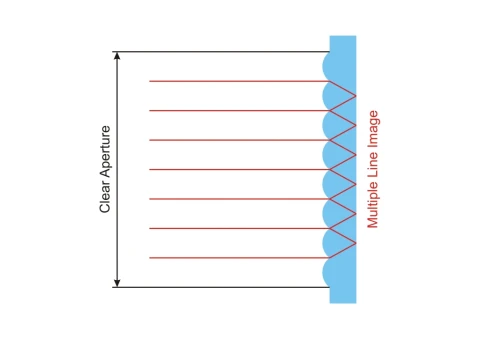

Lenticulars are linear arrays of cylindrical lenses. Each groove has a tight radius. It provides multiple line images. Possible applications include three-dimensional imaging, projection screens as well as sensor systems and specialized lighting solutions.

The LN 611 is made of PMMA or Polycarbonate ensuring high transmission, low weight and easy handling. Additionally the lenticular structure can be manufactured as a silicone-on-glass hybrid (SOG) for applications requiring the durability of a glass surface or higher operating temperatures. The specified thickness is a standard value that can be modified if required. It is manufactured with tight tolerances to ensure high quality of the optical images. Anti-reflective coatings and custom trimmings can be realized on request.

Specifications

Radius:	0.157 mm
Facet Spacing:	0.187 mm
Clear Aperture (X):	99.2 mm
Clear Aperture (Y):	99.2 mm
Lenticular Length:	99.2 mm
Thickness:	1.8 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Customizable contours, fixture points and markings
Optional optical coating for increased efficiency
Lightweight and space saving design
Combination with other FRESNEL OPTICS structures on plano side or as array

Applications

Three-dimensional imaging
Projection screens
Sensor systems
Lighting solutions

Request Quote

To: ORAFOL Fresnel Optics
Re: Lenticular LN 611

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: Germany
Sold by:: ORAFOL Fresnel Optics
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the main application of the Lenticular Lens LN 611?

Primarily used for digital signage, educational tools, lighting and sensor technology.

What material is the lens made from?

The standard material is PMMA. Depending on the applications Polycarbonate and silicone-on-glass (SOG) is also possible.

What is the maximum clear aperture of the lenticular?

The maximum clear aperture is 99.2 mm x 99.2 mm.

Can the lens be customized?

Yes, the lens can be customized in various shapes and sizes to meet specific application needs.

How do I clean the lens without damaging it?

Use a soft, lint-free cloth and mild cleaning solution; avoid abrasive materials to prevent scratches.

What kinds of optical coatings are available for the lenticular??

Various anti-reflective coatings for VIS and other spectral ranges can be applied. If none of the available soltions fits the requirements a custom solution can be developed.
