IR Correction Lenses for ITS/ANPR, 1.1", 12mm, 16mm, 25mm, 35mm, 50mm, 12MP
Description

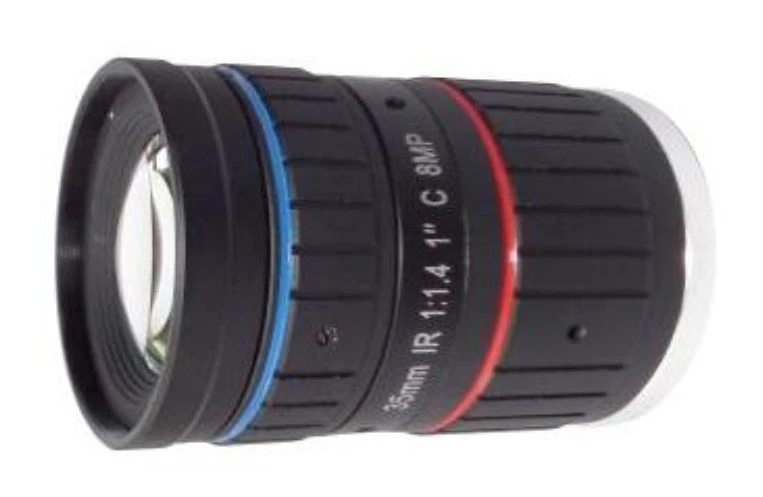

The IR Correction Lens, model IR3514-12MP-ITS, from Fujian Lumens Solution Co., Ltd boasts a 35mm focal length with an aperture of F1.4. Designed to fit a 1″ (16mm) image format with a C mount, it offers field angles of 26x29x16° for a 1" sensor and 18x14x11° for a 2/3" sensor. This lens stands out with an optical distortion of only -0.45% for the 1" sensor and has a minimum object distance ranging from 0.5m to infinity. Physically, it measures Φ41.5*65.16mm, weighs approximately 147g, and showcases a flange BFL of 17.526mm and back focal lengths of 13.71mm and 11.6mm respectively. Users can enjoy manual iris and focus adjustments, ensuring precise control. Built to endure, it operates efficiently in temperatures from -20℃ to +60℃. With size tolerances ranging from ±0.05 for 0-10mm to ±0.2 for 30-120mm, it exemplifies precision in design. The lens is manufactured at the Fujian Lumens Solution's facility located at Zi Jin Hua, Pan Yu Road No. 869, Cangshan District, Fuzhou, Fujian 350007, China.
IR Correction Lenses for ITS/ANPR, 1.1", 12mm, 16mm, 25mm, 35mm, 50mm, 12MP
Specifications |
|
|---|---|
| Focal Length: | 12-50mm |
| F/no: | 16-1.4 |
| Format Size (dia.): | Not Specified |
| Resolution: | -- mega pixels |
| Angle Of View: | 11-16degrees |
| Iris Type: | Manual Adjust |
Features
- Model & Manufacturer: IR3514-12MP-ITS by Fujian Lumens Solution Co., Ltd.
- Focal Length: 35mm
- Aperture: F1.4
- Mount: C mount tailored for 1″ (16mm) image format.
- Field Angles: 1" Sensor: 26x29x16°
- 2/3" Sensor: 18x14x11°
- Optical Distortion: -0.45% (for 1" sensor)
- M.O.D. (Minimum Object Distance): 0.5m to infinity
- Manual Controls: Iris and focus
- Physical Specifications: Dimensions: Φ41.5*65.16mm
- Weight: 147g±5g
- Durability: Operates between -20℃ to +60℃
- Precision: Specific size tolerances for different dimensions
Applications
- Surveillance: Enhanced IR correction can be crucial for capturing clear images in low-light or nighttime scenarios.
- Traffic Monitoring: Given the "ITS" in the model name, this lens could be used in Intelligent Traffic Systems for clear license plate recognition and traffic pattern analysis.
- Industrial Inspection: Suitable for machines that require precision imaging, especially in variable lighting conditions.
- Research & Development: Beneficial in experimental setups needing clear imaging in the infrared spectrum.
- Professional Photography: Useful for photographers specializing in infrared photography or needing a manual focus lens for specific shots.
