SWIR lens, 1.1" Precision Infrared Lens: 5MP Clarity with Broad 800-1700nm Wavelength Range by Fujian Lumens Solution Co., Ltd
Description
Experience a perfect blend of precision and clarity with the SW2513 lens, tailored for professionals who won't settle for less. With a focal length of 25mm and a remarkably wide aperture of F1.3, this lens is designed to capture crisp images across a 1.1" format. Boasting a resolution of 5MP with a pixel size of 4.5μm, it promises stunning detail in every frame. Whether you're focusing on a distant horizon or an object just 0.1m away, its expansive field of view — 37° diagonal, 30° horizontal, and 23° vertical — ensures you don't miss a thing.
The lens takes pride in its minimal TV distortion of just 0.03%, enhancing the quality of your captures. Professionals will appreciate the flexibility of its C mount and the comprehensive working wavelength ranging from 800-1700nm, opening doors to both near-infrared (NIR) and short-wave infrared (SWIR) imaging. Built to endure, it promises unwavering performance between temperatures of -20℃ to 60℃.

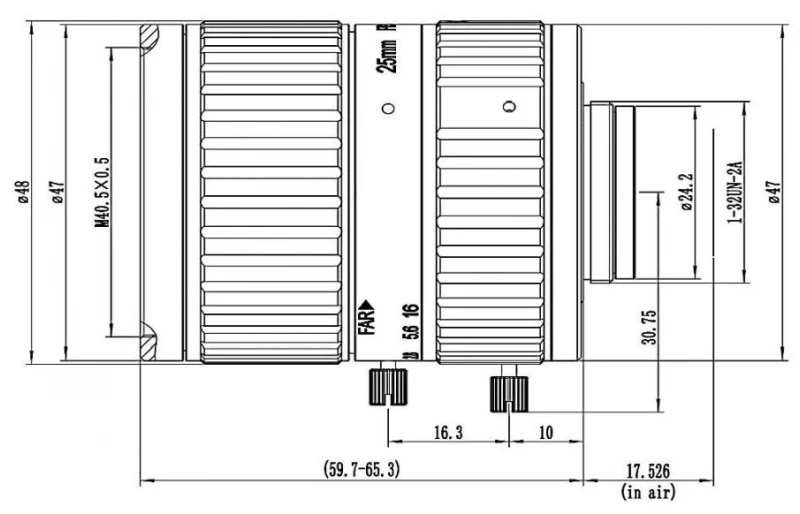

Accompanied by manual iris controls and a filter size of M40.5*0.5, the SW2513 provides the customization that discerning professionals demand. It encapsulates superior craftsmanship within a total track length of 77mm, a back focal length of 9mm, and a flange focal length of 17.526mm.
SWIR lens, 1.1" Precision Infrared Lens: 5MP Clarity with Broad 800-1700nm Wavelength Range by Fujian Lumens Solution Co., Ltd
Specifications |
|
|---|---|
| Focal Length: | 9-77mm |
| F/no: | 22-1.3 |
| Format Size (dia.): | 1 inch |
| Resolution: | 5 mega pixels |
| Angle Of View: | 23-37degrees |
| Iris Type: | Manual Adjust |
Features
- Model & Manufacturer: SW2513 by Fujian Lumens Solution Co., Ltd.
- Focal Length: 25mm
- Aperture: F1.3
- Image Format: 1.1"
- Resolution: 5MP with a pixel size of 4.5μm
- Optical Distortion: TV distortion at 0.03%
- Mount: C mount
- Minimum Object Distance (M.O.D.): 0.1m
- Working Wavelength: Ranges from 800-1700nm
- Temperature Range: Operational between -20℃ and 60℃
- Manual Controls: Iris adjustment
- Filter Size: M40.5*0.5
Applications
- Infrared Imaging: Given the working wavelength range, this lens is suitable for capturing images in both near-infrared (NIR) and short-wave infrared (SWIR) regions.
- Surveillance: Suitable for low-light or nighttime scenarios.
- Scientific Research: Useful for studies requiring precision imaging within the 800-1700nm wavelength range.

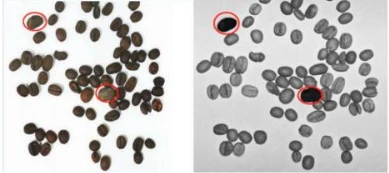

- Quality Control & Industrial Inspection: Can be utilized in setups where products/materials' detailed imaging is crucial.
- Astrophotography: Potential use in capturing celestial bodies and phenomena with the given working wavelength range.
- Environmental Monitoring: Suitable for capturing details in diverse lighting conditions.
