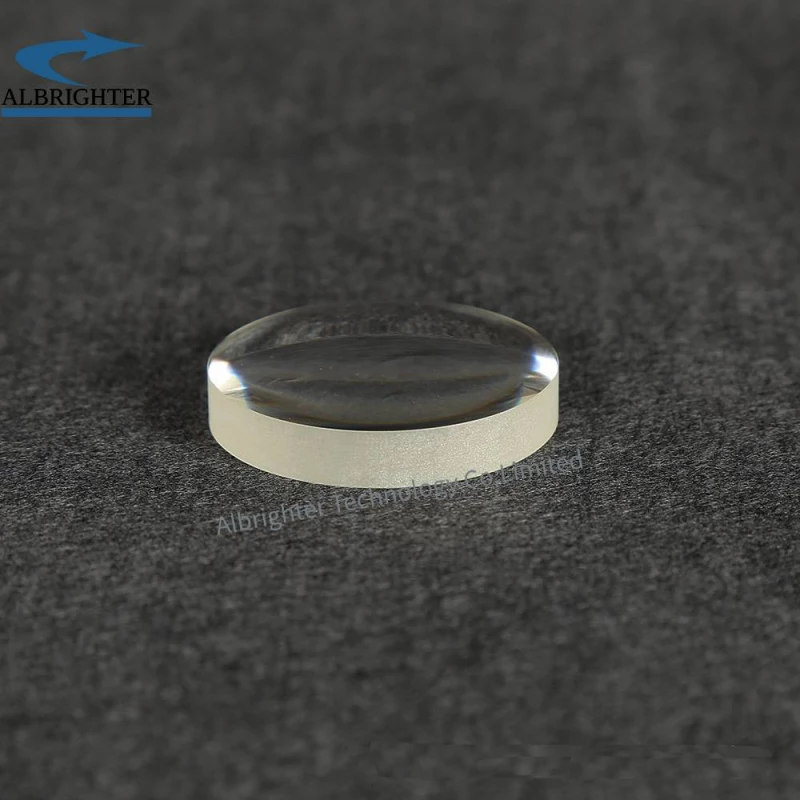

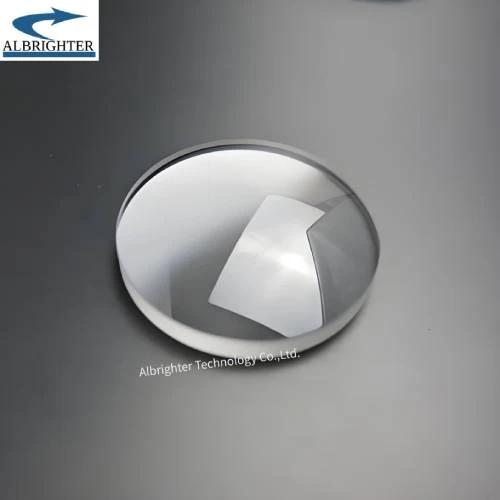

BK7 Plano Convex Lenses
Description
The Plano Convex Lens (PCX) is a versatile optical component primarily used for focusing parallel light or transferring spot light into parallel light. With a design optimized for high transmittance from visible light to near-infrared wavelengths (350-2000nm), BK7 Plano Convex Lenses offer exceptional optical performance across a wide spectral range. These lenses are essential for various applications in industries such as imaging, laser systems, and optical instrumentation.
BK7 Plano Convex Lenses
Specifications |
|
|---|---|
| Material: | BK7, UVFS, CaF2, ZnSe, H-K9L |
| Diameter: | 3-75 mm |
| Focal Length: | 4-500 mm |
| Edge Thickness, Te: | 0.8-4 mm |
| Lens Type: | Plano-Convex |
Features
- Versatile Functionality: Designed for focusing parallel light or converting spot light into parallel light, suitable for a wide range of optical applications.
- Broad Spectral Range: Offers high transmittance from visible light to near-infrared wavelengths (350-2000nm), ensuring excellent performance across diverse optical setups.
- High-Quality Material: Constructed from BK7 optical glass, renowned for its superior optical properties, including high transmittance and low dispersion.
- Precision Design: Engineered with precise diameter and center thickness tolerances, ensuring consistency and reliability in optical performance.
- Optimized Surface Quality: Features λ/4 surface figure at 633nm, providing excellent imaging quality and minimizing optical aberrations.
- Customizable Options: Available in various diameters (Dia), effective focal lengths (EFL), back focal lengths (BFL), center thicknesses (CT), and edge thicknesses (ET), offering flexibility to suit specific application requirements.
- Coating Options: Offered with optional custom anti-reflective (AR) coatings to enhance transmission and reduce glare, ensuring optimal performance in different lighting conditions.
Summary:
- Material: BK7
- Design Wavelength: 587.6nm
- Diameter Tolerance: +0.0/-0.1mm
- Center Thickness Tolerance: ±0.1mm
- Surface Figure: λ/4 @633nm
- Focal Length Tolerance: ±1%
- Centration: 3 arc min.
- Surface Quality: 40/20-60/40
- Bevel: 0.2×45°-0.4×45°
- Coating: Uncoated or Customized AR
Applications
- Imaging Systems: Used in cameras, microscopes, and telescopes for focusing and magnification, enabling clear and precise imaging.
- Laser Systems: Employed as focusing lenses or collimators in laser systems for beam shaping, alignment, and beam expansion.
- Optical Instrumentation: Integrated into optical setups for beam manipulation, beam steering, and light focusing, facilitating various experimental and research applications.
- Medical Devices: Utilized in medical imaging equipment and diagnostic instruments for light focusing and beam alignment, enabling accurate analysis and diagnosis.
- Industrial Applications: Applied in industrial measurement systems, barcode scanners, and laser processing equipment for precision optical alignment and beam control.
